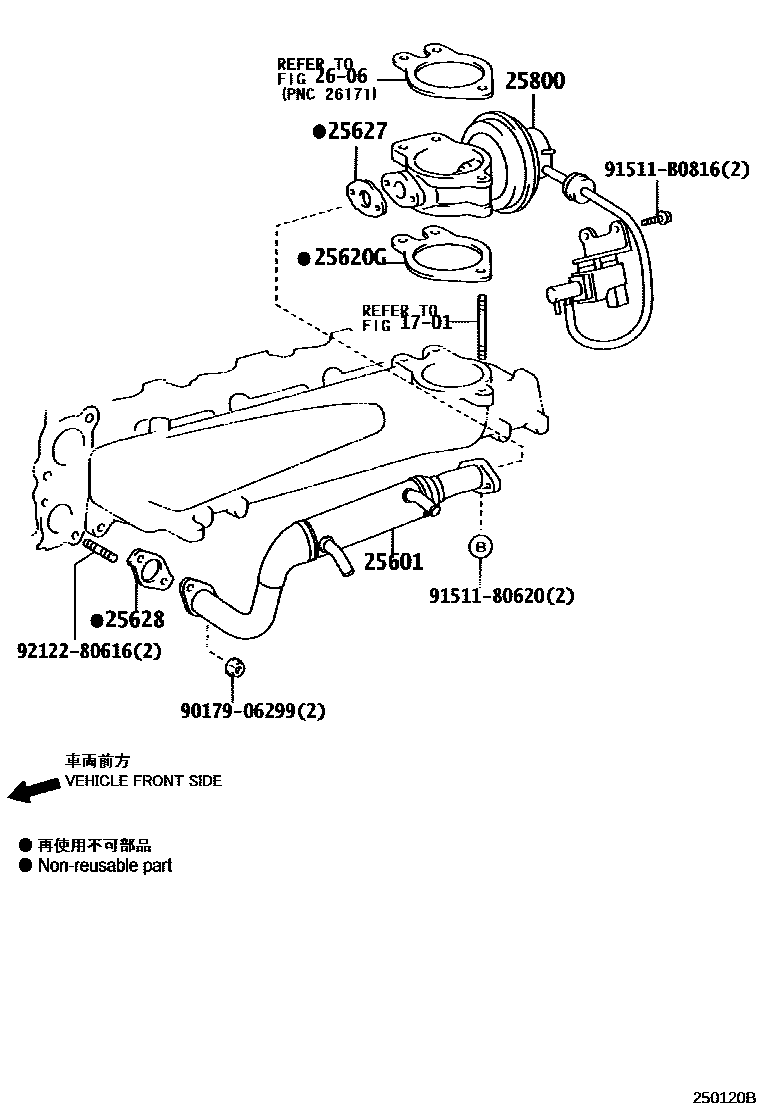

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-30010i1KDFTV..KDJ12#200209-200408

main25601-30060i1KDFTV..KDJ12#200408-200608

main25601-30080i1KDFTV..KDJ12#200608-200908

sub25601-0L020

25620GGASKET, DIESEL THROTTLE

main25627-30020i1KDFTV..KDJ12#200408-200608

main26171-30011i1KDFTV..KDJ12#200209-200210

sub26171-30012

main26171-30012i1KDFTV..KDJ12#200210-200408

sub26171-30013

main26171-30030i1KDFTV..KDJ12#200608-200908

25627GASKET, EGR VALVE

main25627-30010i1KDFTV..KDJ12#200209-200908

main25627-30020i1KDFTV..KDJ12#200408-200608

25628GASKET, EGR INLET

main25628-30010i1KDFTV..KDJ12#200209

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-30010i1KDFTV..KDJ12#200209-200408

main25800-30090i1KDFTV..KDJ12#200408-200608

main25800-30120i1KDFTV..KDJ12#200608-200908

main25800-30180i1KDFTV..KDJ12#200806-200901

sub25800-30120

2606

9017906299

main90179-06299

9151180620

main91511-80620

91511B0816

main91511-B0816

9212280616

main92122-80616

11 parts on this diagram · 3 diagrams in section
