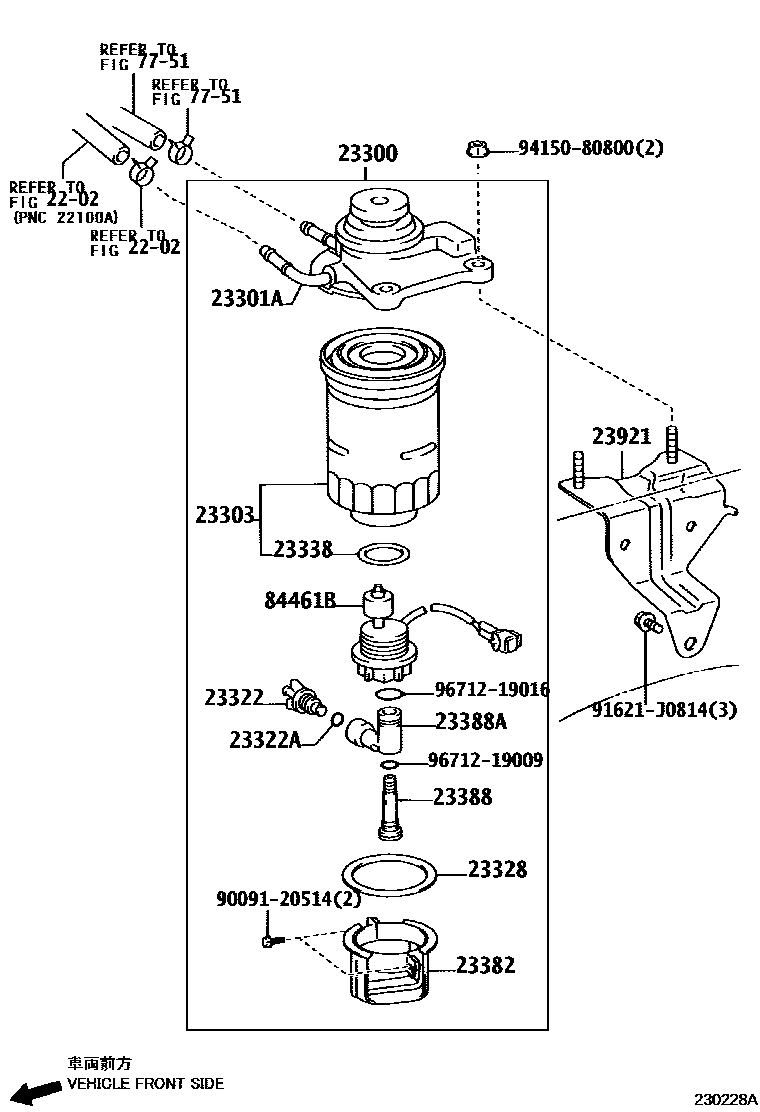

FUEL FILTER

0001 1 0002 1W(FUEL HEATER)

2202

23300FILTER ASSY, FUEL

main23300-30160i1KDFTV..KDJ12#200209-200307

sub23300-30181

23301ACAP ASSY, FUEL FILTER

main23380-30160i1KDFTV..KDJ12#200209-200307

sub23380-30161

main23380-30170i1KDFTV..KDJ12#200307-200807

sub23380-30171

main23380-30171i1KDFTV..KDJ12#200807-200908

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-30090i1KDFTV..KDJ12#200811-200908

main23390-30150i1KDFTV..KDJ12#200209-200402

main23390-30180i1KDFTV..KDJ12#200402-200811

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1KDFTV..KDJ12#200209-200908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KDFTV..KDJ12#200209-200908

23328GASKET(FOR FUEL FILTER)

main23385-30160i1KDFTV..KDJ12#200209-200908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KDFTV..KDJ12#200209-200908

23382CASE, FUEL FILTER

main23382-30160i1KDFTV..KDJ12#200209-200908

23388PLUG, FUEL FILTER DRAIN

main23388-30160i1KDFTV..KDJ12#200209-200908

23388APLUG, FUEL FILTER DRAIN

main23388-30170i1KDFTV..KDJ12#200209-200908

23921SUPPORT, FUEL FILTER

main23921-30050i1KDFTV..KDJ12#200209-200908

7751

84461BSWITCH, LEVEL WARNING

main84461-60090iKDJ12#200209-200908

9009120514

main90091-20514

91621J0814

main91621-J0814

9415080800

main94150-80800

9671219009

main96712-19009

9671219016

main96712-19016

19 parts on this diagram · 2 diagrams in section
