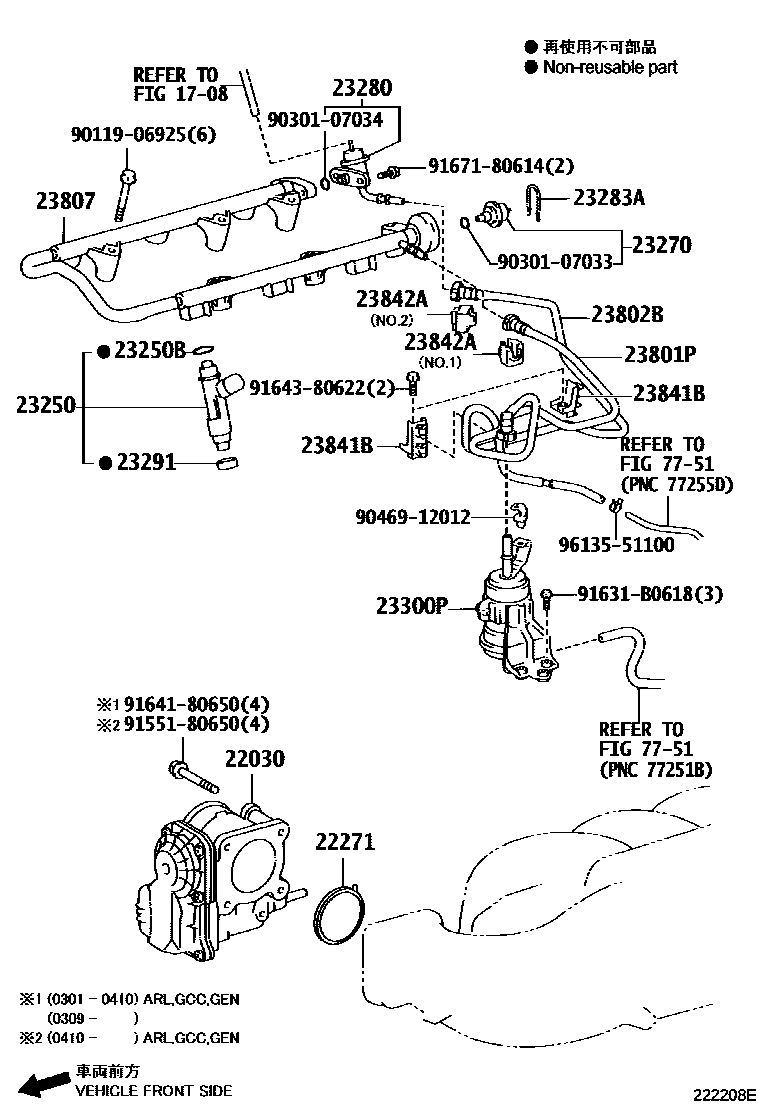

FUEL INJECTION SYSTEM

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31010i1GRFE..GRJ12#200301

22271GASKET, THROTTLE BODY

main22271-31011i1GRFE..GRJ12#200301-200409

sub22271-31012

main22271-31012i1GRFE..GRJ12#200410

23250INJECTOR ASSY, FUEL

main23209-39015i1GRFE..GRJ12#200301-200711

main23209-39075i1GRFE..GRJ12#200711-200908

sub23209-39015

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GRJ12#200301

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i1GRFE..GRJ12#200301-200908

sub23270-31080

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GRJ12#200301

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GRJ12#200301

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1GRFE..GRJ12#200301

23300PFILTER, FUEL(FOR EFI)

main23300-31090i1GRFE..GRJ12#200301-200908

main23300-31100i1GRFE..GRJ12#..LHD200301-200908

OTHER CO IN S.AMERICA & NEW CALEDONIA

main23300-31100i1GRFE..GRJ12#..LHD200301-200908

RUSSIA & CIS SPEC

main23300-31100i1GRFE..GRJ120..RHD200408-200908

INDIA SPEC

main23300-31100i1GRFE..GRJ12#..LHD200508-200908

EXCEPT EU

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31060i1GRFE..GRJ12#200301

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31010i1GRFE..GRJ12#200301

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31010i1GRFE..GRJ12#200301

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GRJ12#200301

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GRJ12#200301

NO.1

main23842-31030i1GRFE..GRJ12#200301

NO.2

7751

9011906925

main90119-06925

9030107033

main90301-07033

9030107034

main90301-07034

9046912012

main90469-12012

9155180650

main91551-80650

91631B0618

main91631-B0618

9164180650

main91641-80650

9164380622

main91643-80622

9167180614

main91671-80614

9613551100

main96135-51100

26 parts on this diagram · 1 diagram in section
