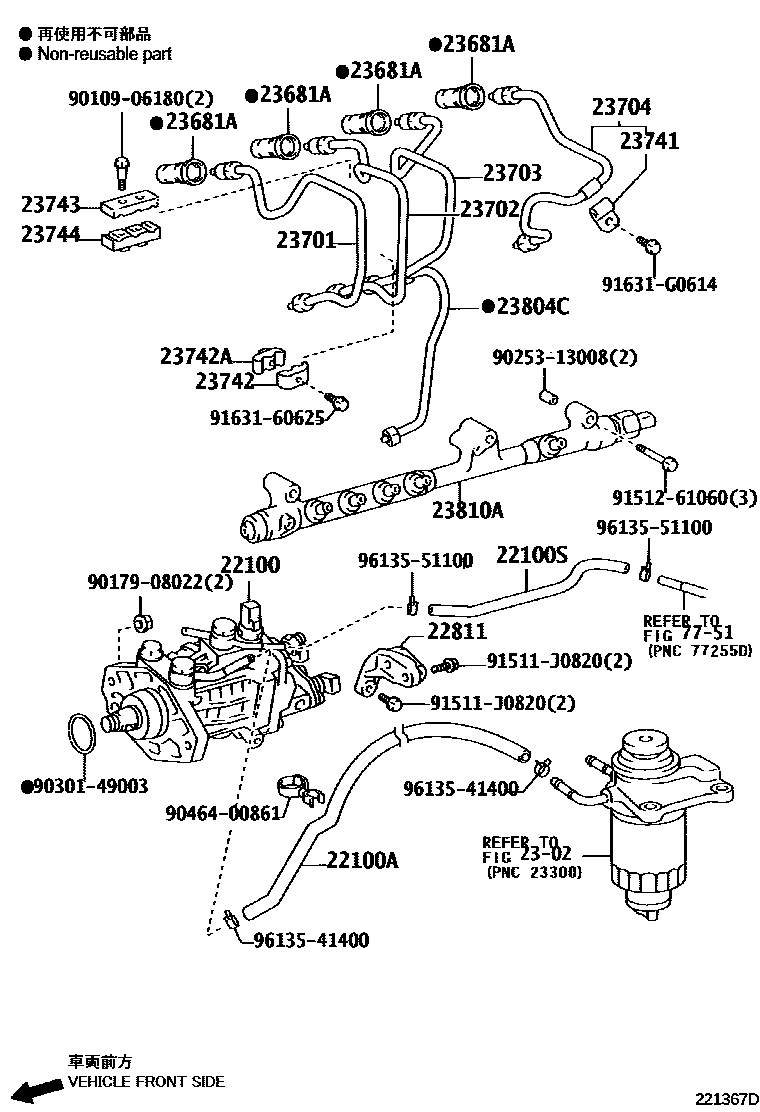

INJECTION PUMP ASSEMBLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22811STAY, INJECTION PUMP, NO.1
2302
23681ASEAL, NOZZLE HOLDER
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23742ACLAMP, INJECTION PIPE, NO.3
23743CLAMP, INJECTION PIPE, NO.3
23744CLAMP, INJECTION PIPE, NO.4
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
7751
9010906180
main90109-06180
9017908022
main90179-08022
9025313008
main90253-13008
9030149003
main90301-49003
9046400861
main90464-00861
91511J0820
main91511-J0820
9151261060
main91512-61060
9163160625
main91631-60625
91631G0614
main91631-G0614
9613541400
main96135-41400
9613551100
main96135-51100
29 parts on this diagram · 3 diagrams in section
