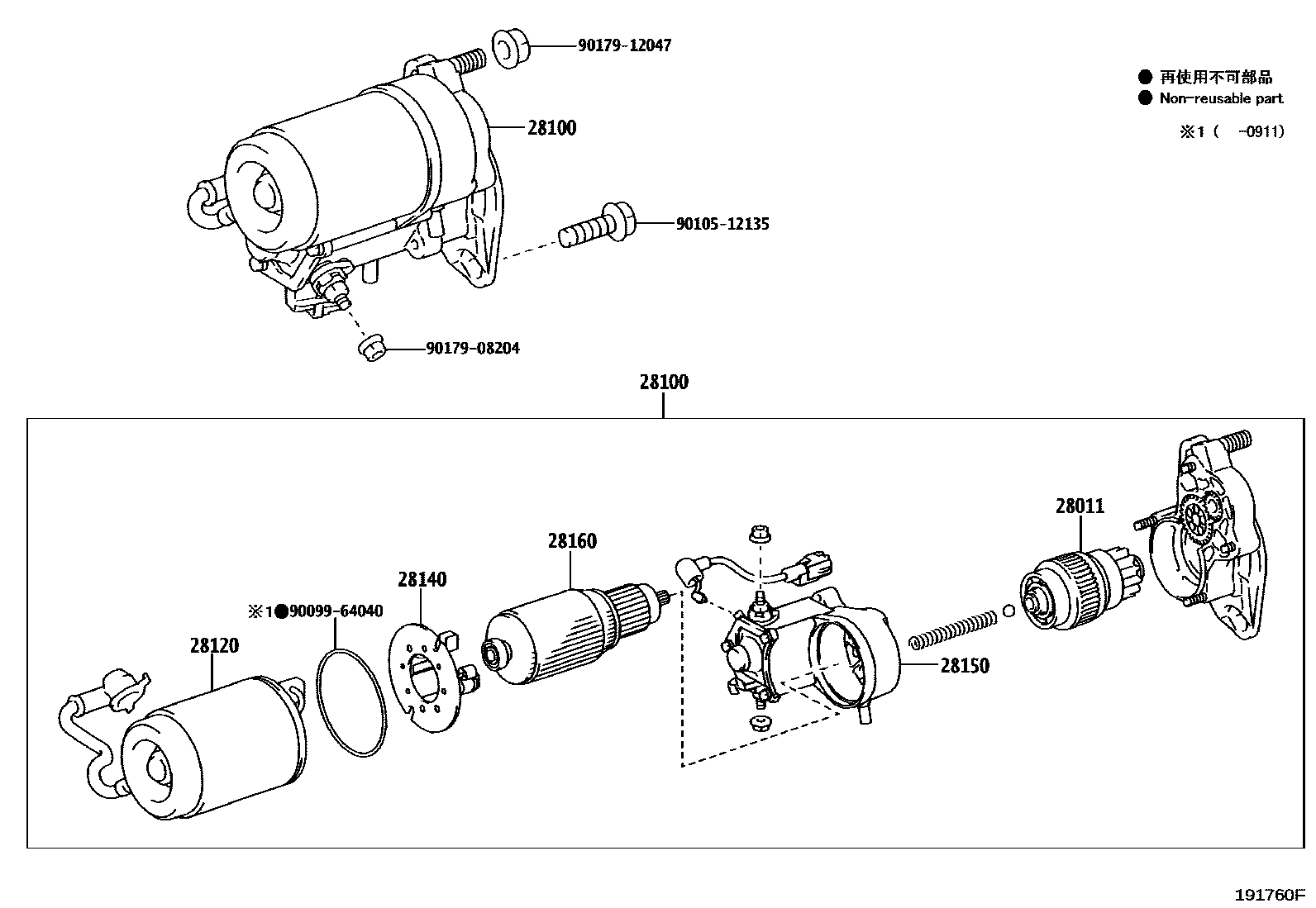

STARTER

0001 112V 2.2KW 0002 112V 2.7KW 0003 112V 3.0KW 0004 112V 1.6KW 0005 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1KDFTV..KDJ12#..MTM200209

COLD SPEC

main28011-67030i1KDFTV..KDJ12#..MTM200209

28100STARTER ASSY

main28100-30050i1KDFTV..KDJ12#..ATM200209-200905

12V 2.7KW

sub28100-30051

main28100-30050i1KDFTV..KDJ12#..ATM200209-200905

12V 2.7KW,COLD SPEC

sub28100-30051

main28100-30051i1KDFTV..KDJ12#..5FC200906

12V 2.7KW

main28100-30051i1KDFTV..KDJ12#..5FC200906

12V 2.7KW,COLD SPEC

main28100-31040i1GRFE..GRJ12#200301-200909

12V 1.6KW

main28100-67050i1KDFTV..KDJ12#..MTM200209-200910

12V 2.2KW

sub28100-67051

28120YOKE ASSY, STARTER

main28120-28040i1GRFE..GRJ12#200301-200808

sub28120-28060

main28120-28060i1GRFE..GRJ12#200808

main28120-64040i1KDFTV..KDJ12#..MTM200209

main28120-67020i1KDFTV..KDJ12#..ATM200209

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i1KDFTV..KDJ12#..MTM200209

main28140-77090i1KDFTV..KDJ12#..ATM200209

COLD SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1KDFTV..KDJ12#..ATM200209

COLD SPEC

main28150-67050i1KDFTV..KDJ12#..MTM200209

28160ARMATURE ASSY, STARTER

main28160-21060i1GRFE..GRJ12#200301

main28160-54140i1KDFTV..KDJ12#..MTM200209

COLD SPEC

main28160-64041i1KDFTV..KDJ12#..MTM200209

9009964040

main90099-64040

9010512135

main90105-12135

9017908204

main90179-08204

9017912047

main90179-12047

10 parts on this diagram · 5 diagrams in section
