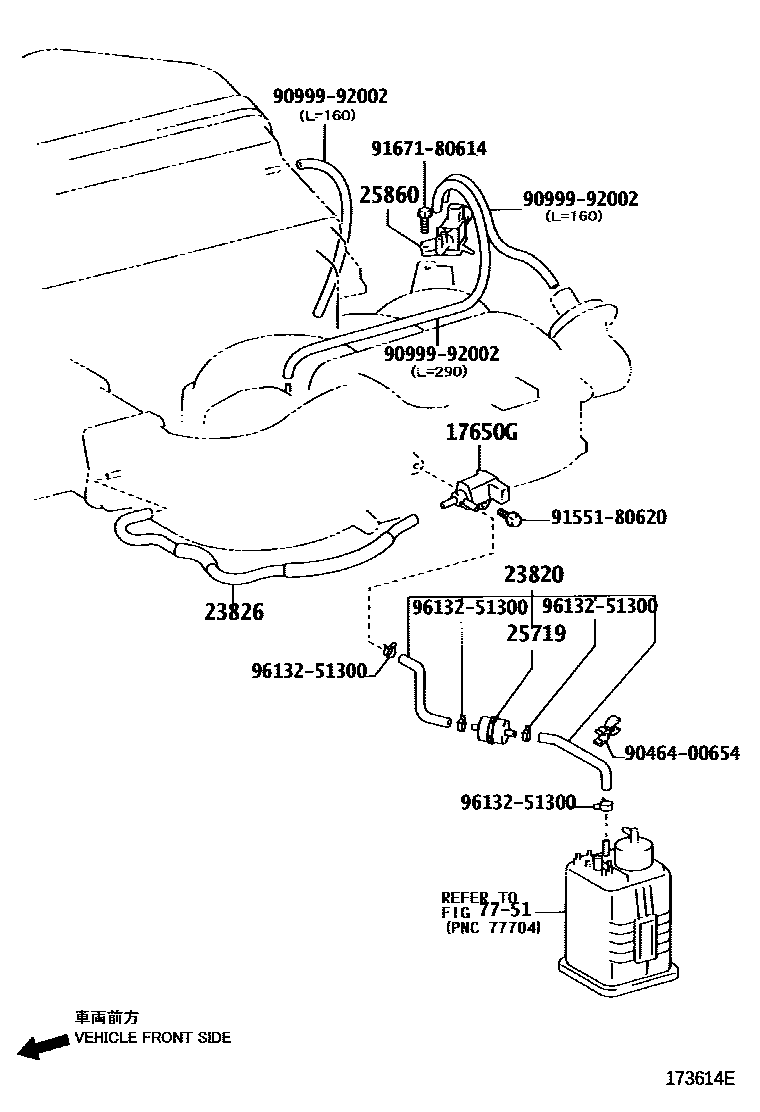

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12262i1GRFE..GRJ12#200301-200408

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31010i1GRFE..GRJ12#200301-200908

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31010i1GRFE..GRJ12#200301-200408

25719TANK, VACUUM SURGE

main25719-50040i1GRFE..GRJ12#200301-200908

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30010i1KDFTV..KDJ12#200209-200408

NO.1

main25860-30080i1KDFTV..KDJ12#200408-200608

main25860-30080i1KDFTV..KDJ12#200209-200408

NO.2

main25860-31010i1GRFE..GRJ12#200301-200408

7751

9046400654

main90464-00654

9099992002

main90999-92002

9155180620

main91551-80620

9167180614

main91671-80614

9613251300

main96132-51300

11 parts on this diagram · 5 diagrams in section
