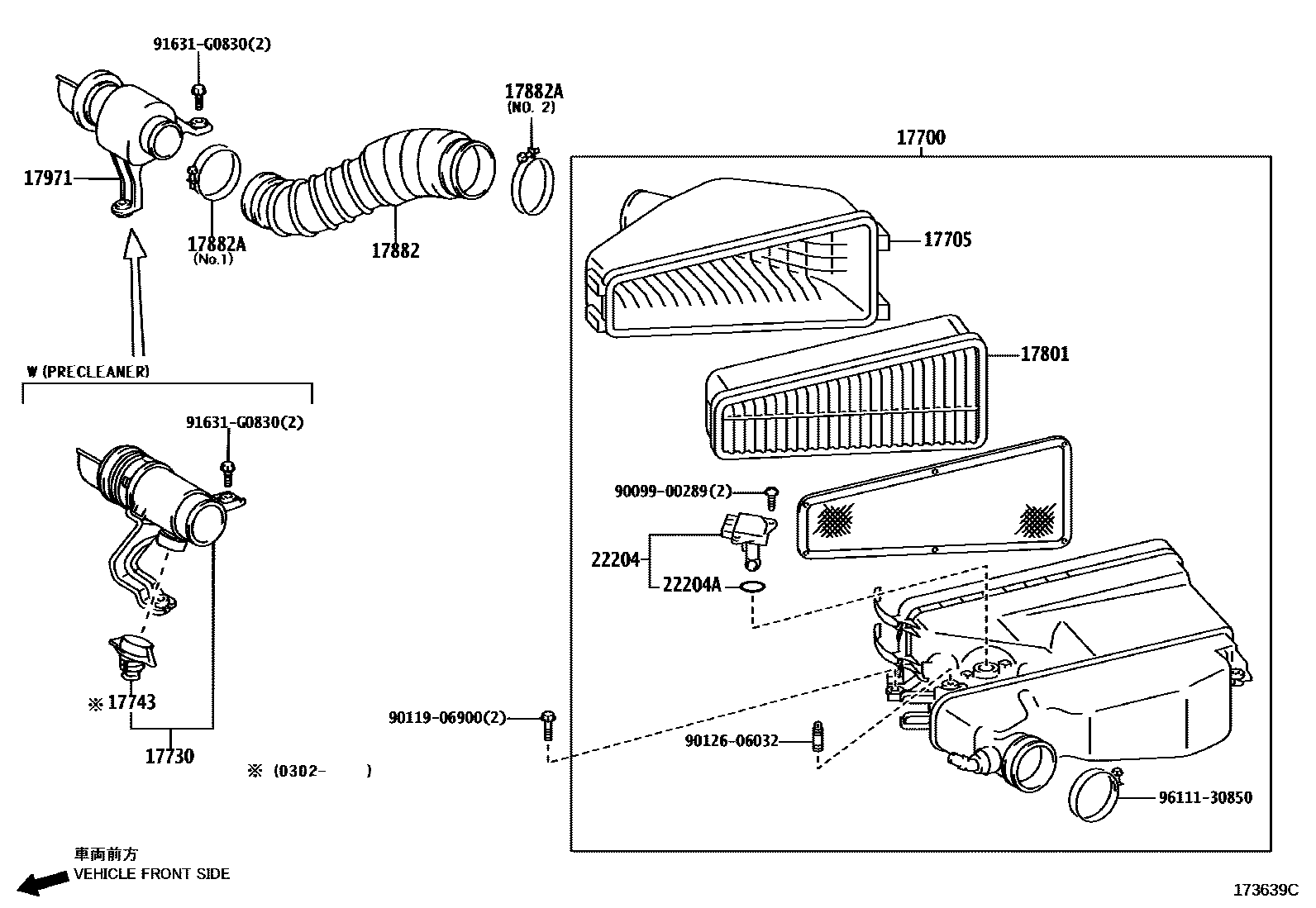

AIR CLEANER
17730PRECLEANER ASSY, AIR W/HOSE
THAILAND SPEC
OTHER CO IN S.AMERICA & NEW CALEDONIA
TURKEY SPEC
INDIA SPEC
ARGENTINA SPEC
17743VALVE, DUST RELIEF
TURKEY SPEC
ARGENTINA SPEC
OTHER CO IN S.AMERICA & NEW CALEDONIA
THAILAND SPEC
INDIA SPEC
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
NO.1
NO.2
22204METER SUB-ASSY, INTAKE AIR FLOW
22204ARING, O(FOR INTAKE AIR FLOW METER)
9009900289
main90099-00289
9011906900
main90119-06900
9012606032
main90126-06032
91631G0830
main91631-G0830
9611130850
main96111-30850
15 parts on this diagram · 5 diagrams in section
