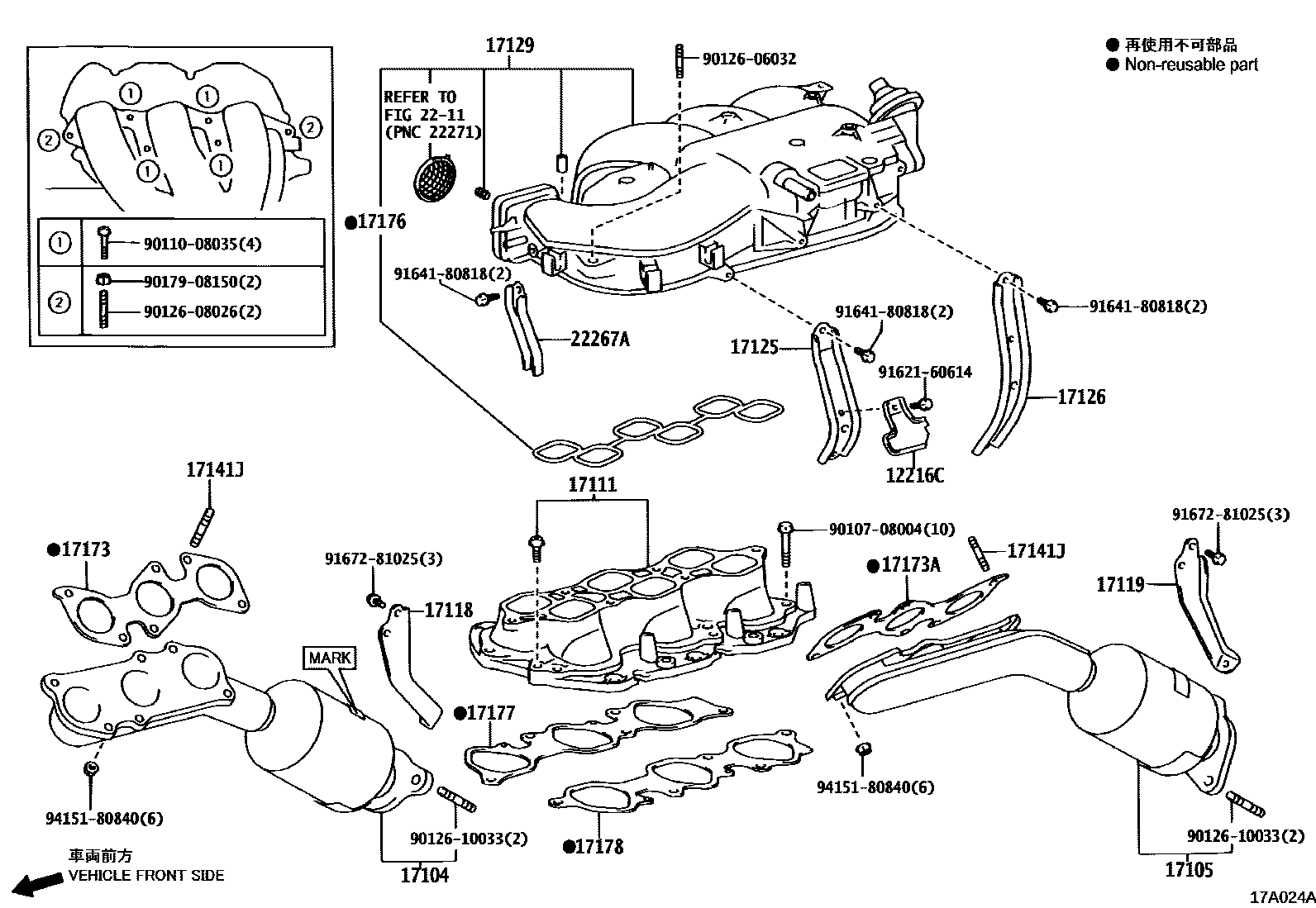

MANIFOLD
12216CPLATE, OIL BAFFLE
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*114=*689,MARK 17140-31011
*114=*565,MARK 17140-31250
17105MANIFOLD SUB-ASSY, EXHAUST, LH
*115=TOYOTA/03-/Y
*114=*566
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
sub17176-31160
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
22267ABRACKET, THROTTLE BODY
9010708004
main90107-08004
9011008035
main90110-08035
9012606032
main90126-06032
9012608026
main90126-08026
9012610033
main90126-10033
9017908150
main90179-08150
9162160614
main91621-60614
9164180818
main91641-80818
9167281025
main91672-81025
9415180840
main94151-80840
28 parts on this diagram · 4 diagrams in section
