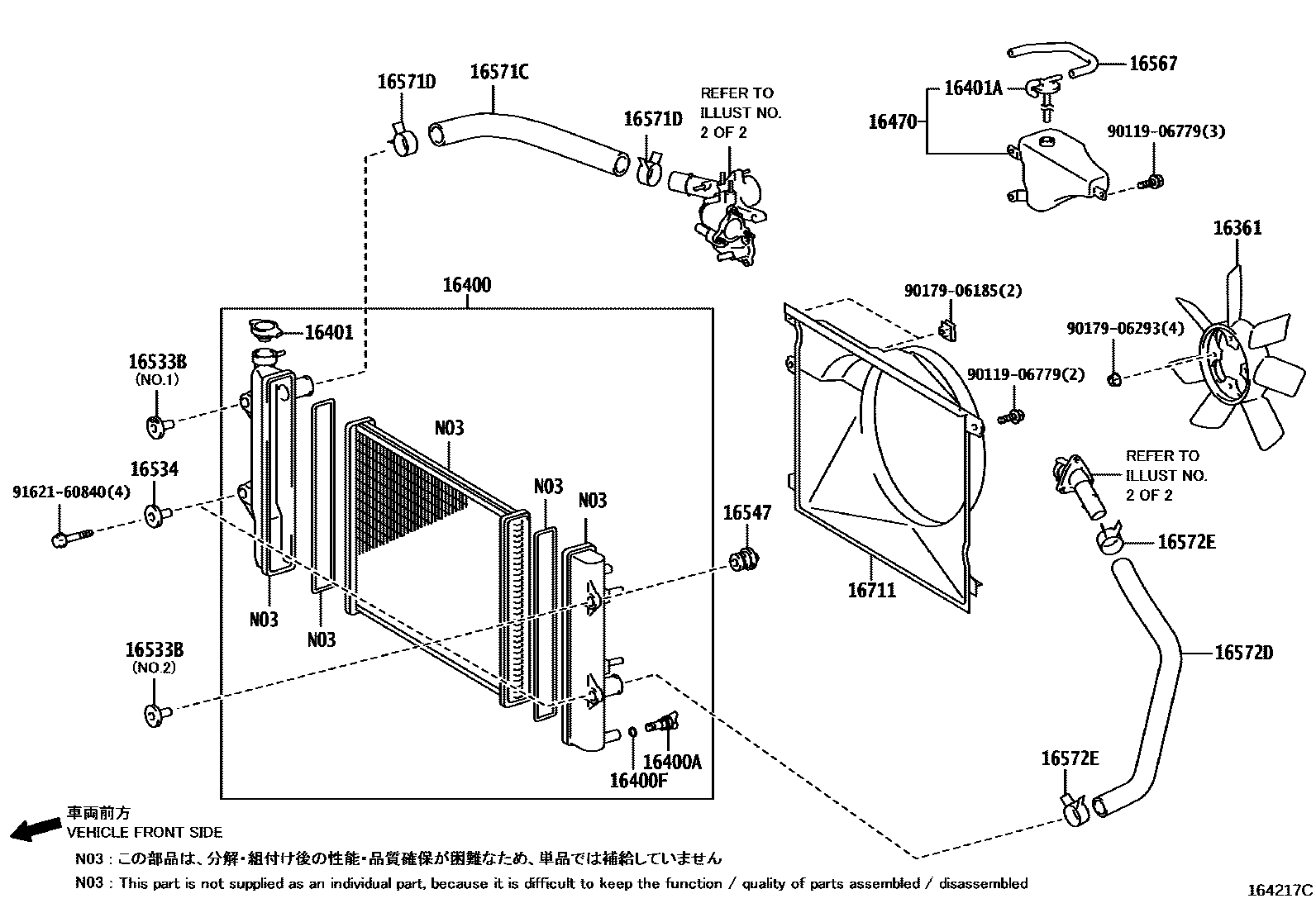

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16361FAN

main16361-31060i1GRFE..GRJ12#200301

main16361-67020i1KDFTV..KDJ12#200209

16400RADIATOR ASSY

main16400-30140i1KDFTV..KDJ12#..4FC200209-200307

main16400-30141i1KDFTV..KDJ12#..4FC200307-200408

sub16400-30142

main16400-30142i1KDFTV..KDJ12#..5FC200408-200608

main16400-30150i1KDFTV..KDJ12#..5F200209-200307

main16400-30151i1KDFTV..KDJ12#..MTM200307-200608

sub16400-30152

main16400-30152i1KDFTV..KDJ12#..6F200608-200908

main16400-31350i1GRFE..GRJ12#200301-200410

sub16400-31351

main16400-31351i1GRFE..GRJ12#200411

sub16400-31352

main16400-67230i1KDFTV..KDJ12#..5FC200608-200908

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main23322-54010i1GRFE..GRJ12#200301

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1KDFTV..KDJ12#..5F200209-200908

main16492-21050i1GRFE..GRJ12#200301-200908

16401CAP SUB-ASSY, RADIATOR

main16401-46610i1GRFE..GRJ12#200902-200908

sub16401-30020

main16401-5B630i1GRFE..GRJ12#200301-200410

sub16401-31650

main16401-6A140i1KDFTV..KDJ12#200209-200307

sub16401-17010

main16401-75440i1GRFE..GRJ12#200411-200901

sub16401-31650

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-53010i1KDFTV..KDJ12#200307-200803

sub16475-51010

main16405-50050i1KDFTV..KDJ12#200209-200211

sub16405-50051

main16405-50051i1KDFTV..KDJ12#200211-200307

main16475-51010i1KDFTV..KDJ12#200804

sub16475-28140

16470TANK ASSY, RADIATOR RESERVE

main16470-30030i1KDFTV..KDJ12#200307

main16470-50140i1GRFE..GRJ12#200209-200307

16533BSUPPORT, RADIATOR, NO.1

main16533-50090i1KDFTV..KDJ12#200209-200908

NO.1

main16534-50050i1KDFTV..KDJ12#200209-200908

NO.2

16534SUPPORT, RADIATOR, NO.2

main16534-50050i1GRFE..GRJ12#200209-200908

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50010i1KDFTV..KDJ12#200209-200908

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i1GRFE..GRJ12#200301

main16567-50080i1KDFTV..KDJ12#200209-200304

sub16567-38040

16571CHOSE, RADIATOR, NO.1

main16571-30060i1KDFTV..KDJ12#200209

main16571-31130i1GRFE..GRJ12#200301

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41008i1KDFTV..KDJ12#200209-200701

main90467-37005i1GRFE..GRJ12#200301-200701

main96136-44301i1GRFE..GRJ12#200702

main96136-54801i1KDFTV..KDJ12#200702

16572DHOSE, RADIATOR, NO.2

main16572-30050i1KDFTV..KDJ12#200209

main16572-31170i1GRFE..GRJ12#200301

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41008i1KDFTV..KDJ12#200209-200701

main90467-37005i1GRFE..GRJ12#200301-200701

main96136-44301i1GRFE..GRJ12#200702

main96136-54801i1KDFTV..KDJ12#200702

16711SHROUD, FAN

main16711-30040i1KDFTV..KDJ12#200209-200307

sub16711-30041

sub16567-30010

main16711-30041i1KDFTV..KDJ12#200307

main16711-31200i1GRFE..GRJ12#200301

9011906779

main90119-06779

9017906185

main90179-06185

9017906293

main90179-06293

9162160840

main91621-60840

20 parts on this diagram · 7 diagrams in section
