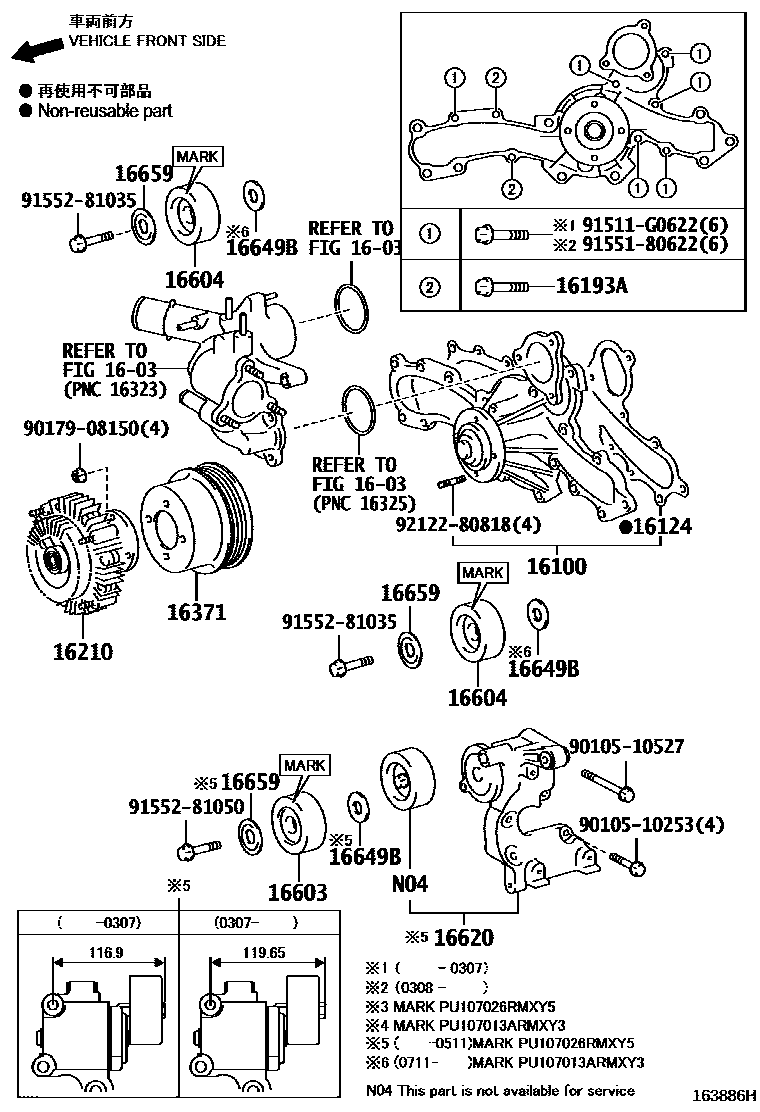

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39405i1GRFE..GRJ12#200301-200903

sub16100-39406

main16100-39406i1GRFE..GRJ12#200903

main16100-69356i1KDFTV..KDJ12#200209

sub16100-69357

16124GASKET, WATER PUMP COVER

main16124-31070i1GRFE..GRJ12#200301

main16124-67010i1KDFTV..KDJ12#200209

16193ABOLT(FOR WATER PUMP COVER)

main16193-31070i1GRFE..GRJ12#200301-200308

main16193-31080i1GRFE..GRJ12#200308

16210COUPLING ASSY, FLUID

main16210-30010i1KDFTV..KDJ12#200209

sub16210-30011

main16210-31020i1GRFE..GRJ12#200301

sub16210-31021

16371PULLEY, FAN

main16371-30020i1KDFTV..KDJ12#200209

main16371-31040i1GRFE..GRJ12#200301

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31010i1GRFE..GRJ12#200301-200409

MARK=PU107026RMXY

sub16603-31040

sub90387-10174

sub91672-81060

main16603-31030i1GRFE..GRJ12#200409-200511

MARK=PU107026RMXY5

sub16603-31040

sub90387-10174

sub91672-81060

main16603-31040i1GRFE..GRJ12#200511-200810

MARK=PU107029RMXY

main16603-31050i1GRFE..GRJ12#200810-200908

MARK=PU107029RMZY1

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i1GRFE..GRJ12#200301-200711

main16604-31010i1GRFE..GRJ12#200711-201004

MARK=PU107013ARMXY1

main16604-31020i1GRFE..GRJ12#200711

MARK=PU107013ARMXY3

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31010i1GRFE..GRJ12#200301-200304

sub16620-31011

main16620-31011i1GRFE..GRJ12#200304-200307

sub16620-31013

main16620-31012i1GRFE..GRJ12#200307

sub16620-31013

16649BPLATE, IDLER PULLEY COVER

main16649-31010i1GRFE..GRJ12#200409-200511

main16649-31020i1GRFE..GRJ12#200711

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31010i1GRFE..GRJ12#200301-200312

sub16659-31011

main16659-31011i1GRFE..GRJ12#200312-200511

9010510253

main90105-10253

9010510527

main90105-10527

9017908150

main90179-08150

91511G0622

main91511-G0622

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

19 parts on this diagram · 3 diagrams in section
