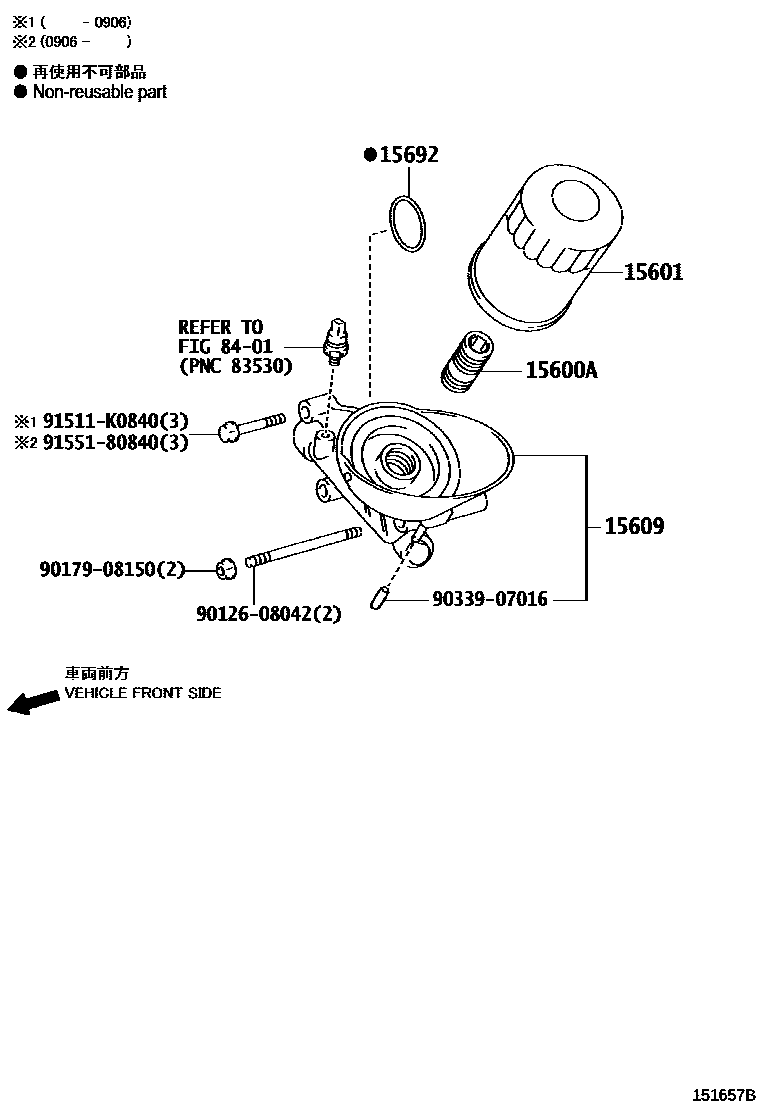

OIL FILTER

0001 1 0002 1W(OIL COOLER) 0003 1 0004 1 0005 1

15600AUNION(FOR OIL FILTER)

main15116-54021i1KDFTV..KDJ12#200408-200608

main90404-19002i1KDFTV..KDJ12#200608

main90404-19013i1GRFE..GRJ12#200301-200806

main90404-19021i1GRFE..GRJ12#200806

15601FILTER SUB-ASSY, OIL

main90915-20003i1KDFTV..KDJ12#200608

sub90915-20005

main90915-20004i1GRFE..GRJ12#200301

main90915-30002i1KDFTV..KDJ12#200209-200608

15609BRACKET SUB-ASSY, OIL FILTER

main15670-31010i1GRFE..GRJ12#200301

15692GASKET, OIL FILTER BRACKET

main15692-31010i1GRFE..GRJ12#200301

8401

9012608042

main90126-08042

9017908150

main90179-08150

9033907016

main90339-07016

91511K0840

main91511-K0840

9155180840

main91551-80840

10 parts on this diagram · 5 diagrams in section
