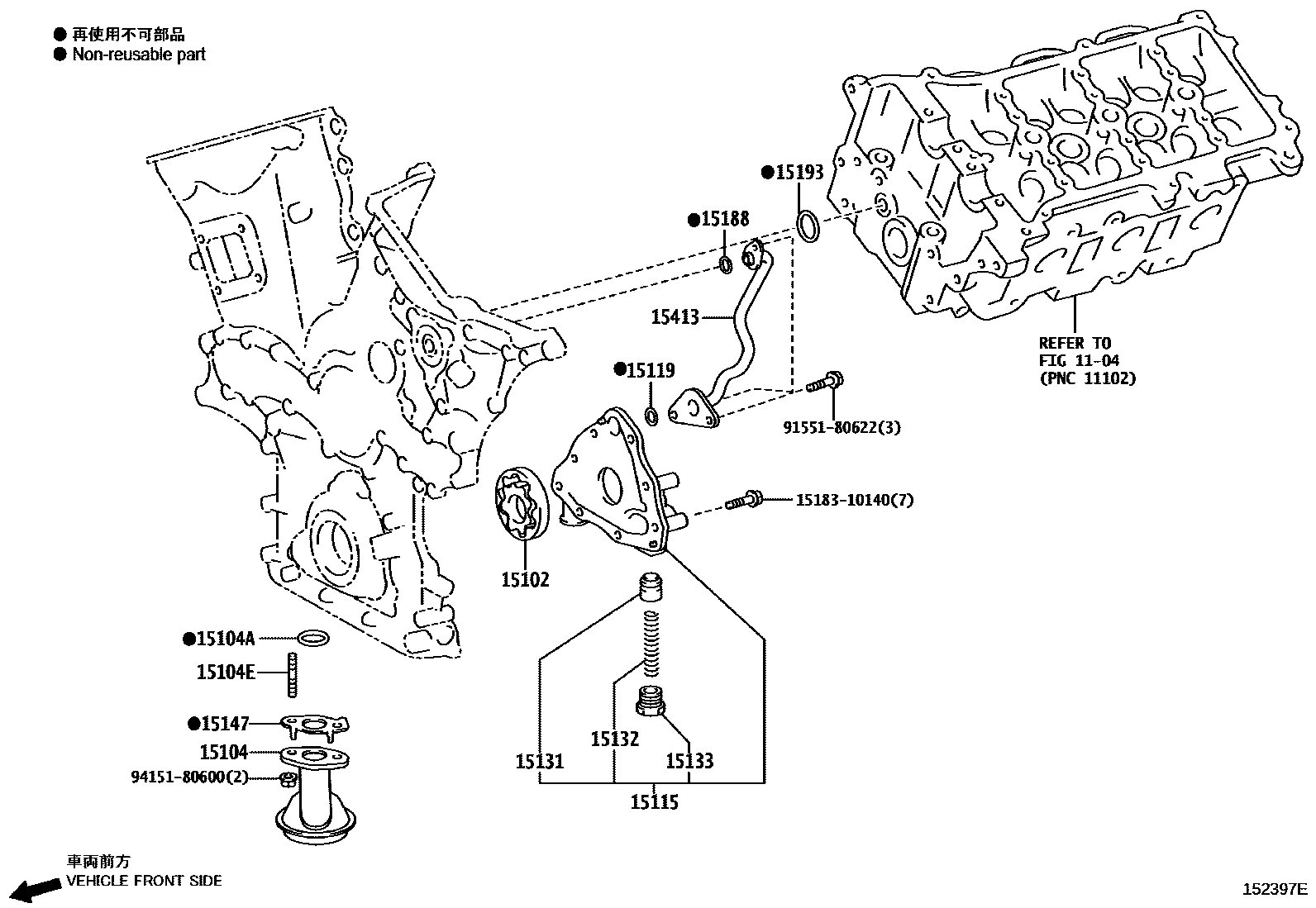

ENGINE OIL PUMP

0001 1 0002 1

1104

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GRJ12#200301

15104STRAINER SUB-ASSY, OIL

main15104-30040i1KDFTV..KDJ12#200209

main15104-31050i1GRFE..GRJ12#200301

sub15104-31140

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GRJ12#200301

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06127i1GRFE..GRJ12#200301-200411

main90116-06140i1KDFTV..KDJ12#200209

main90126-06029i1GRFE..GRJ12#200411

15115COVER, OIL PUMP

main15115-31050i1GRFE..GRJ12#200301

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GRJ12#200301

15131VALVE, OIL PUMP RELIEF

main15131-46040i1KDFTV..KDJ12#200209

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDJ12#200209

main15132-46020i1GRFE..GRJ12#200301

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV..KDJ12#200209

main15133-28020i1GRFE..GRJ12#200301

15147GASKET, OIL STRAINER

main15147-46010i1GRFE..GRJ12#200301

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GRJ12#200301

15193GASKET, OIL PUMP

main15193-31010i1GRFE..GRJ12#200301

main15193-67011i1KDFTV..KDJ12#200209

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GRJ12#200301

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
