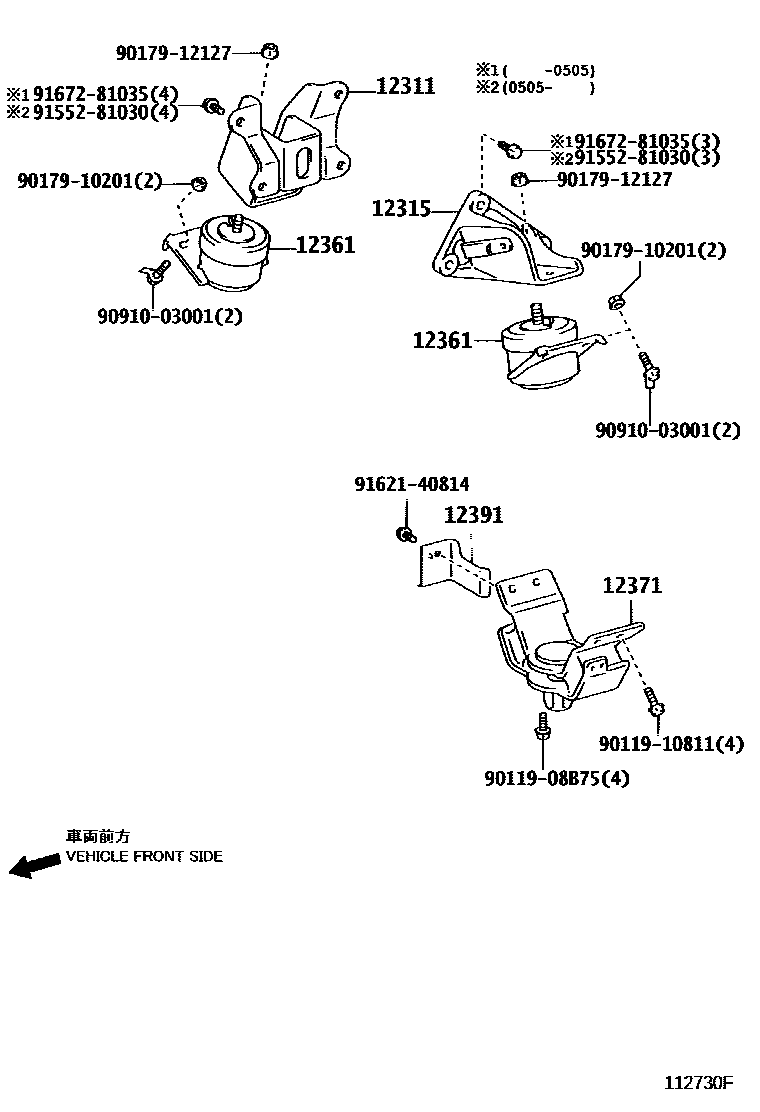

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30060i1KDFTV..KDJ12#200209-200908

sub12311-30061

main12311-31020i1GRFE..GRJ12#200301-200505

sub12311-31021

main12311-31021i1GRFE..GRJ12#200505

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-30060i1KDFTV..KDJ12#200209-200908

sub12311-30061

main12315-31050i1GRFE..GRJ12#200301-200505

sub12315-31051

main12315-31051i1GRFE..GRJ12#200505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30050i1KDFTV..KDJ12#200209-200810

sub12361-30051

main12361-30051i1KDFTV..KDJ12#200811

sub12361-30120

main12361-31080i1GRFE..GRJ12#200301-200811

sub12361-31081

main12361-31081i1GRFE..GRJ12#200812

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-30060i1KDFTV..KDJ12#..4FC,5F,6F200209-200811

sub12371-30080

main12371-30070i1KDFTV..KDJ12#..5FC200408-200811

sub12371-30090

main12371-30080i1KDFTV..KDJ12#..6F200812

main12371-30090i1KDFTV..KDJ12#..5FC200812

main12371-31050i1GRFE..GRJ12#200301

sub12371-31051

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i1GRFE..GRJ12#200301

9011908B75

main90119-08B75

9011910811

main90119-10811

9017910201

main90179-10201

9017912127

main90179-12127

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167281035

main91672-81035

13 parts on this diagram · 2 diagrams in section
