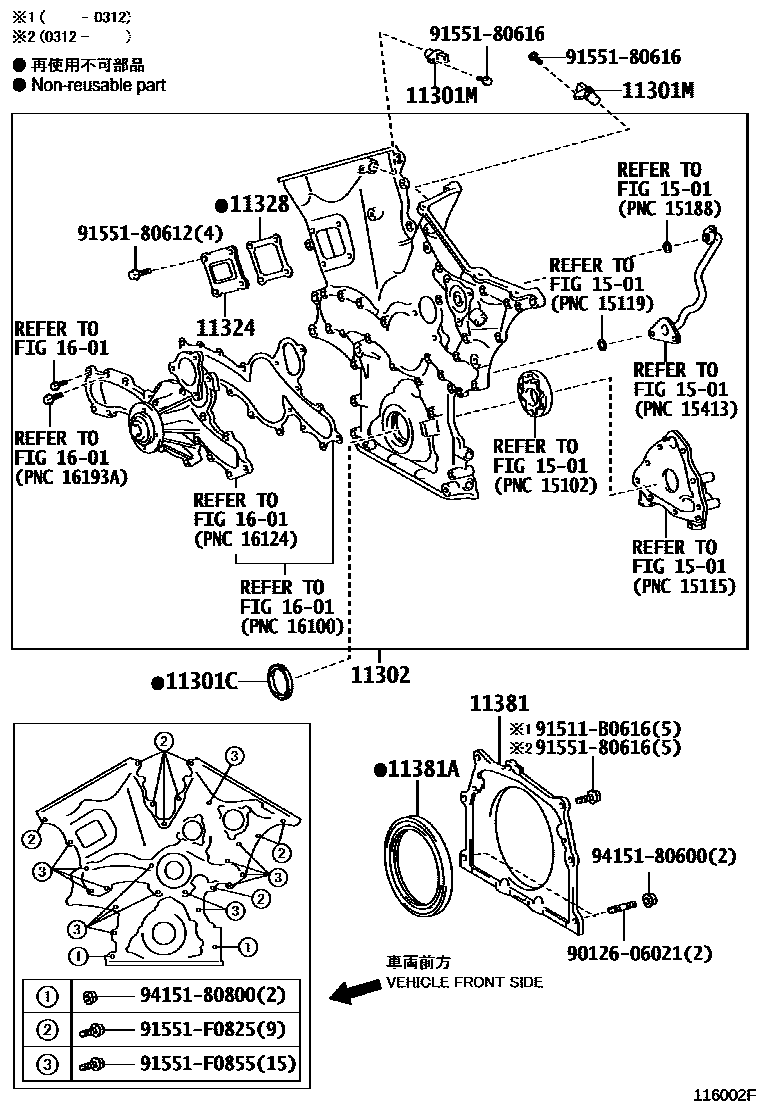

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i1GRFE..GRJ12#200301-200403

main90311-42037i1GRFE..GRJ12#200403-200904

sub90311-42045

main90311-42045i1GRFE..GRJ12#200904

11301MSENSOR, CAM POSITION

main90919-05026i1GRFE..GRJ12#200301-200408

main90919-05060i1GRFE..GRJ12#200408

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31010i1GRFE..GRJ12#200301-200308

sub11310-31011

sub90126-08047

main11310-31011i1GRFE..GRJ12#200308-200408

sub11310-31012

main11310-31012i1GRFE..GRJ12#200408-200409

sub11310-31013

sub16603-31030

sub16649-31010

main11310-31013i1GRFE..GRJ12#200409

sub11310-31014

11324PLATE, TIMING CHAIN COVER

main11324-31010i1GRFE..GRJ12#200301-200308

main11324-31020i1GRFE..GRJ12#200308

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31020i1GRFE..GRJ12#200301-200308

main11328-31030i1GRFE..GRJ12#200308

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GRJ12#200301

main11381-67020i1KDFTV..KDJ12#200209

11381ASEAL, ENGINE REAR OIL

main90311-95008i1KDFTV..KDJ12#200209

main90311-99010i1GRFE..GRJ12#200301

1501

1601

9012606021

main90126-06021

91511B0616

main91511-B0616

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9415180600

main94151-80600

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
