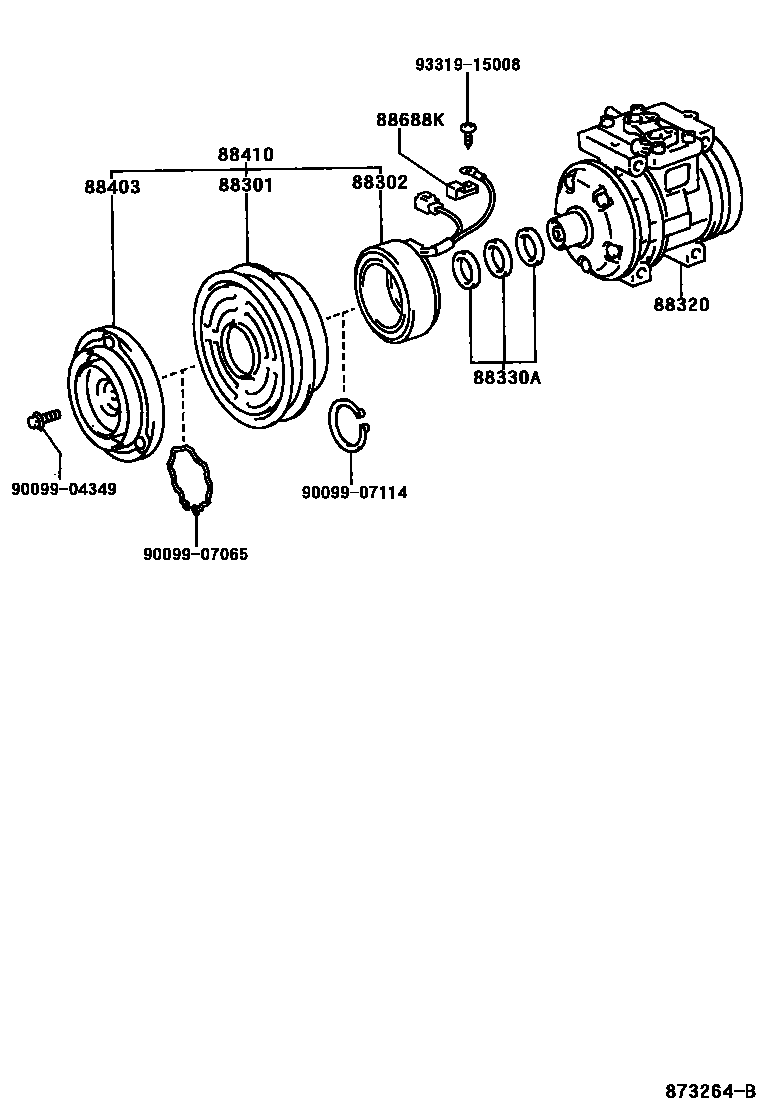

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iKZJ9#199604-200209

main88412-28090iKDJ9#200008-200209

main88412-35090iVZJ9#199604-200209

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKZJ9#,VZJ9#199604-199708

sub88411-2A030

main88411-2A030iKZJ9#,VZJ9#199708-200209

main88411-44010iKDJ9#200008-200209

88320COMPRESSOR ASSY, COOLER

main88320-35600iVZJ9#199604-200209

main88320-35610iKZJ9#199604-200209

sub88320-26H91

main88320-35670iKDJ9#200008-200209

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKDJ9#,KZJ9#,VZJ9#199604-200209

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iKZJ9#,VZJ9#199604-200209

main88403-32010iKDJ9#200008-200209

88410CLUTCH ASSY, MAGNET

main88410-28200iKDJ9#200008-200209

main88410-35250iKZJ9#199604-200209

main88410-35340iVZJ9#199604-200209

88688KBRACKET, COOLER COMPRESSOR

main88569-35170iKDJ9#200008-200209

main88688-2D770iKZJ9#199604-200209

main88688-37320iVZJ9#199604-200209

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 4 diagrams in section
