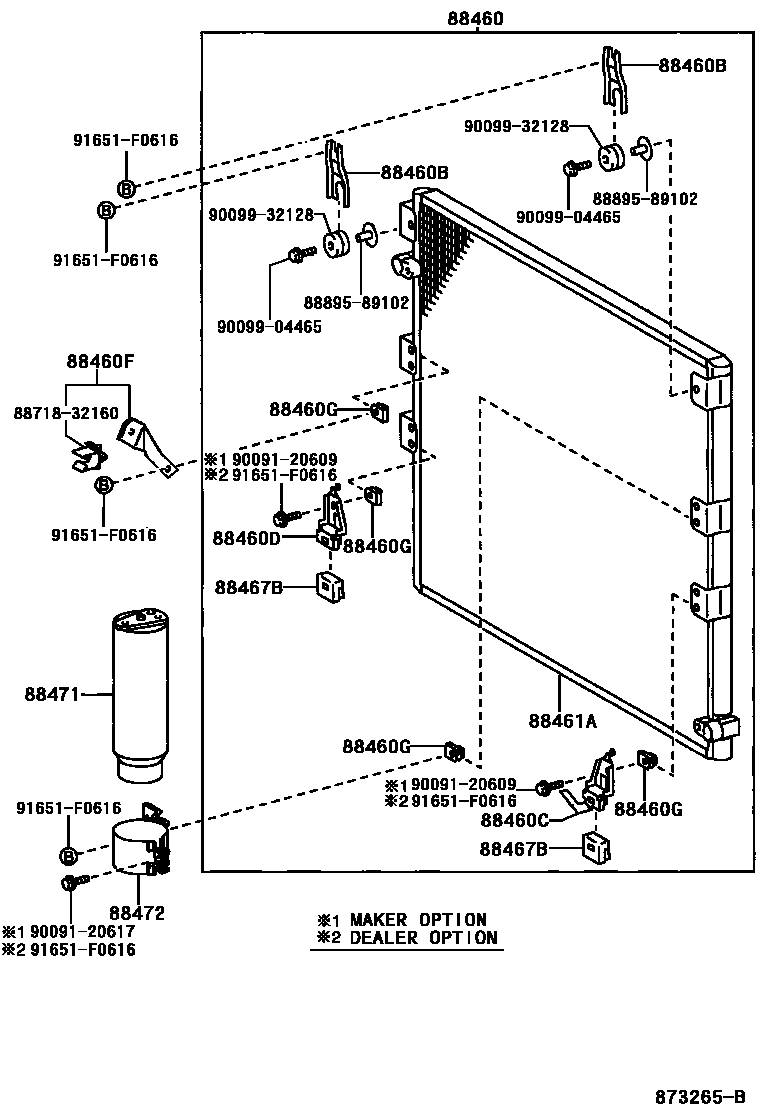

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1SINGLE AIR CONDITIONER(CONDEN0002 1DUAL AIR CONDITIONER(CONDENSE0003 1SINGLE AIR CONDITIONER 0004 1SINGLE AIR CONDITIONER 0005 1SINGLE AIR CONDITIONER 0006 1SINGLE AIR CONDITIONER 0007 1SINGLE AIR CONDITIONER 0008 1SINGLE AIR CONDITIONER 0009 1SINGLE AIR CONDITIONER(DEALER0010 1SINGLE AIR CONDITIONER(DEALER0011 1DUAL AIR CONDITIONER---FRONT 0012 1DUAL AIR CONDITIONER---FRONT 0013 1DUAL AIR CONDITIONER---FRONT 0014 1DUAL AIR CONDITIONER---FRONT 0015 1DUAL AIR CONDITIONER---FRONT 0016 1DUAL AIR CONDITIONER---FRONT 0017 1DUAL AIR CONDITIONER---REAR 0018 1O-RING

88460CONDENSER ASSY, COOLER

main88460-60240iVZJ95..RHD199604-200209

main88460-60250iKDJ95,KZJ95,VZJ95199906-200209

DUAL AIR CONDITIONER

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-60570iKDJ9#,KZJ9#,VZJ9#199906-200209

DUAL AIR CONDITIONER,LH

main88688-60570iKZJ9#,VZJ9#199604-199906

main88688-60600iKDJ95,KZJ95,VZJ95199906-200209

DUAL AIR CONDITIONER,RH

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-35310iKZJ9#,VZJ9#199604-200209

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-35300iKZJ9#,VZJ9#199604-200209

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-35320iKZJ9#,VZJ95..RHD199604-200209

88460GBRACKET, COOLER CONDENSER, NO.5

main88688-26470iKZJ9#,VZJ9#199604-199906

main88688-26470iKZJ90..LHD;KDJ95,KZJ95,VZJ9#199906-200209

DUAL AIR CONDITIONER

main88688-26470iKDJ90..LHD200008-200209

DEALER OPTION

88461ACORE, COOLER CONDENSER

main88461-60010iKZJ9#,VZJ9#199604-200209

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-35020iKZJ9#,VZJ9#199604-200209

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iKDJ95,KZJ95,VZJ95199906-200209

DUAL AIR CONDITIONER

main88471-34010iKDJ9#,KZJ9#,VZJ9#199604-200209

88472BRACKET, RECEIVER TANK, NO.1

main88472-60130iKDJ9#..RHD200008-200209

W(SINGLE AIR CONDITIONER)

main88472-60130iKZJ9#,VZJ9#199604-199906

main88472-60140iKDJ95,KZJ95,VZJ95199906-200209

8871832160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32160

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009120617

main90091-20617

9009904465

main90099-04465

9009932128

main90099-32128

91651F0616

main91651-F0616

17 parts on this diagram · 18 diagrams in section
