HEATING & AIR CONDITIONING - WATER PIPING

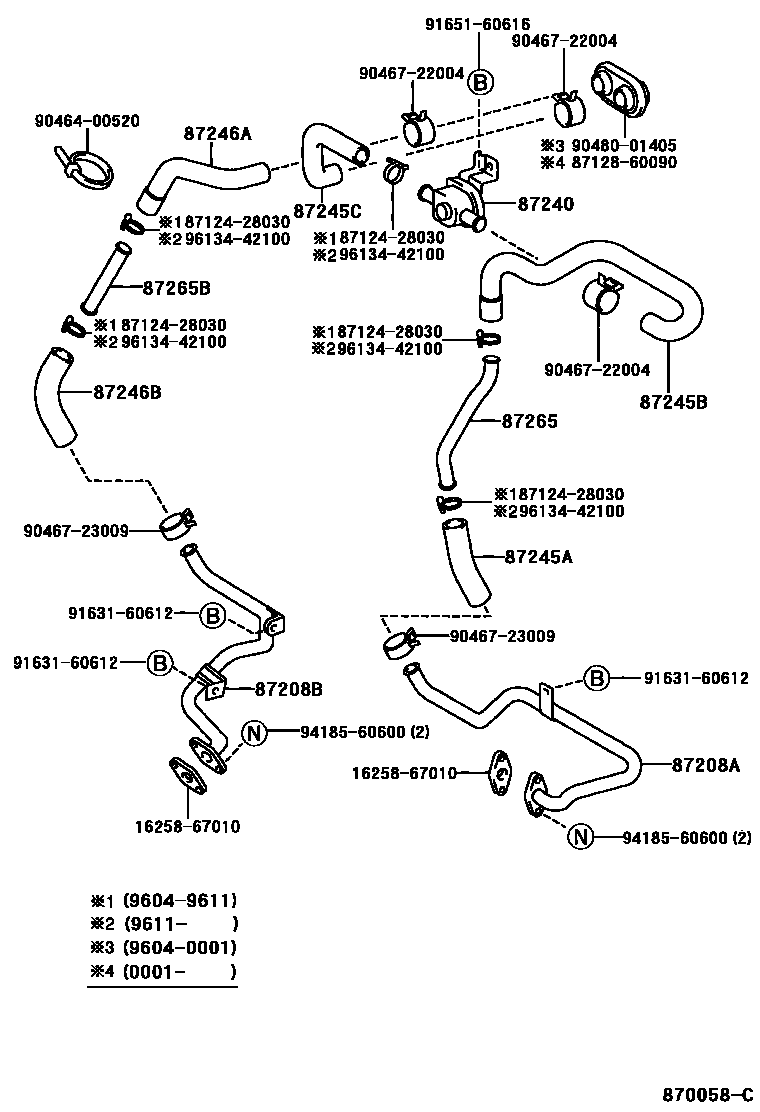

Parts diagram
87208APIPE SUB-ASSY, HEATER WATER, A
main87208-35250i199604-200209
87208BPIPE SUB-ASSY, HEATER WATER, B
main87208-35260i199604-200209
87240VALVE ASSY, HEATER WATER
main87240-35030i199604-200008
main87240-35040i199604-200209
main87240-35050i199604-199807
main87240-35060i200008-200209
main87240-35070i199807-200209
main87240-60180i200008-200209
87245HOSE, HEATER WATER, INLET
main87245-35520i199604-200008
main87245-35680i199604-200209
87245AHOSE, HEATER WATER, INLET A
main87245-35360i199604-200008
main87245-35540i199604-200008
W(REAR HEATER)
main87245-35580i199604-200209
W(REAR HEATER)
sub87245-60670
main87245-35690i199604-200209
W(REAR HEATER)
main87245-35720i199604-200008
sub87245-3D230
main87245-35871i200008-200209
main87245-3D160i199807-200209
main87245-3D230i200008-200209
main87245-60770i199604-200008
sub87245-60870
main87245-60870i199606-200209
W(REAR HEATER)
main87245-6A360i200008-200209
W(VSC)
main87245-6A540i200008-200209
main87245-6A750i200008-200209
87245BHOSE, HEATER WATER, INLET B
main87245-35520i199604-200008
main87245-35530i199604-200008
W(REAR HEATER)
main87245-35590i199604-200209
W(REAR HEATER)
main87245-35610i199604-199906
main87245-3D201i200008-200209
main87245-60760i199604-200209
main87245-6A350i200008-200209
main87245-6A680i200008-200209
W(VSC)
main87245-6A760i200008-200209
87245CHOSE, HEATER WATER ,INLET C
main87245-35610i199606-200209
main87245-35670i199604-200209
main87245-3D190i200008-200209
main87245-60750i199604-199606
sub87245-35610
main87245-6A330i200008-200209
main87245-6A740i200008-200209
main99556-30100i200008-200209
*H,L=65,W(VSC)
87246AHOSE, HEATER WATER, OUTLET A
main87245-35370i199604-200008
main87245-35400i199604-200209
main87245-35710i199604-200209
W(REAR HEATER)
main87245-35730i199604-200209
main87245-3D350i200008-200209
main87245-60780i199604-200209
main87245-6A370i200008-200209
main87245-6A430i200008-200209
main87245-6A480i200008-200209
W(VSC)
87246BHOSE, HEATER WATER, OUTLET B
main87245-35560i199604-200008
W(REAR HEATER)
main87245-35570i199604-200008
main87245-35600i199906-200209
W(REAR HEATER)
main87245-35700i199604-200209
main87245-35851i200008-200209
main87245-60790i199604-200008
sub87245-60880
main87245-60860i199604-200209
main87245-60880i199606-200209
W(REAR HEATER)
main87245-6A640i200008-200209
main87245-6A690i200008-200209
W(VSC)
main87245-6A770i200008-200209
87265CONNECTOR, HEATER WATER HOSE
main87265-35250i199604-200008
main87265-35280i199604-200209
main87265-35421i200008-200209
main87265-60110i199604-200008
sub87265-60130
main87265-60130i199604-200209
W(REAR HEATER)
main87265-60180i200008-200209
main87265-60250i200008-200209
W(VSC)
main87265-60290i200008-200209
NO.1
main87265-60300i200008-200209
NO.2
main87265-89110i199604-200209
87265BCONNECTOR, HEATER WATER HOSE, NO.2
main87265-35190i199906-200008
main87265-35190i199604-199906
NO.1
main87265-35250i199604-200008
NO.2
main87265-35290i199604-200209
W(REAR HEATER)
main87265-35340i199604-200209
main87265-35400i200008-200209
NO.1
main87265-35431i200008-200209
NO.2
main87265-60120i199604-200008
sub87265-60140
main87265-60140i199604-200209
W(REAR HEATER)
main87265-60150i199604-200209
main87265-60240i200008-200209
NO.2
main87265-60270i200008-200209
W(VSC),NO.1
main87265-60280i200008-200209
W(VSC),NO.2
main87265-60310i200008-200209
1625867010GASKET(FOR HEATER RETURN)
main16258-67010
8712428030CLAMP, HEATER
main87124-28030
8712860090GROMMET, HEATER
main87128-60090
9046400520
main90464-00520
9046722004
main90467-22004
9046723009
main90467-23009
9048001405
main90480-01405
9163160612
main91631-60612
9165160616
main91651-60616
9418560600
main94185-60600
9613442100
main96134-42100

22 parts on this diagram · 16 diagrams in section
