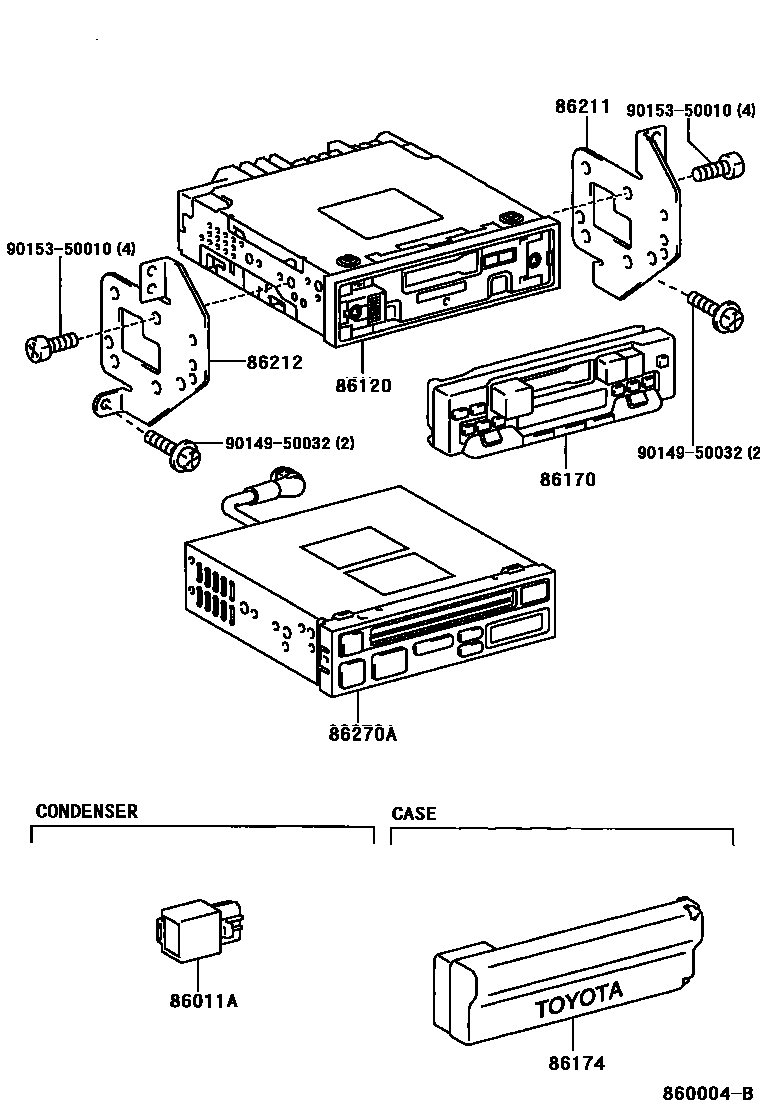

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04083iVZJ9#199906-200209

86120RECEIVER ASSY, RADIO

main86120-2B560iKZJ9#,VZJ9#199604-199906

FUJITSU TEN,ID=18401,TYPE B:REFER TO ILLUSTRATION

main86120-60210iKZJ9#,VZJ9#199604-200209

MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION

main86120-60260iKDJ9#,KZJ9#,VZJ9#199906-200209

FUJITSU TEN,ID=18403,TYPE B:REFER TO ILLUSTRATION

86170SWITCH AND VOLUME ASSY, RADIO

main86170-20050iKZJ9#,VZJ9#199604-199906

TYPE B:REFER TO ILLUSTRATION

main86170-60010iKZJ9#,VZJ9#199604-200209

TYPE A:REFER TO ILLUSTRATION

main86170-60020iKDJ9#,KZJ9#,VZJ9#199906-200209

TYPE B:REFER TO ILLUSTRATION

86174CASE, SWITCH & VOLUME

main86174-20010iKZJ9#,VZJ9#199604-200209

LOGIC CONTROL DECK

main86174-60010iKZJ9#,VZJ9#199604-200209

AUTO REVERSE

86211BRACKET, RADIO, NO.1

main86211-60061iKZJ9#,VZJ9#199604-199906

sub86211-60100

main86211-60100iKDJ9#,KZJ9#,VZJ9#199906-200209

86212BRACKET, RADIO, NO.2

main86212-60061iKZJ9#,VZJ9#199604-199906

sub86212-60100

main86212-60100iKDJ9#,KZJ9#,VZJ9#199906-200209

86270ADISC PLAYER ASSY

main86270-60060iKDJ9#,KZJ9#,VZJ9#199906-200209

9014950032

main90149-50032

9015350010

main90153-50010

9 parts on this diagram · 2 diagrams in section
