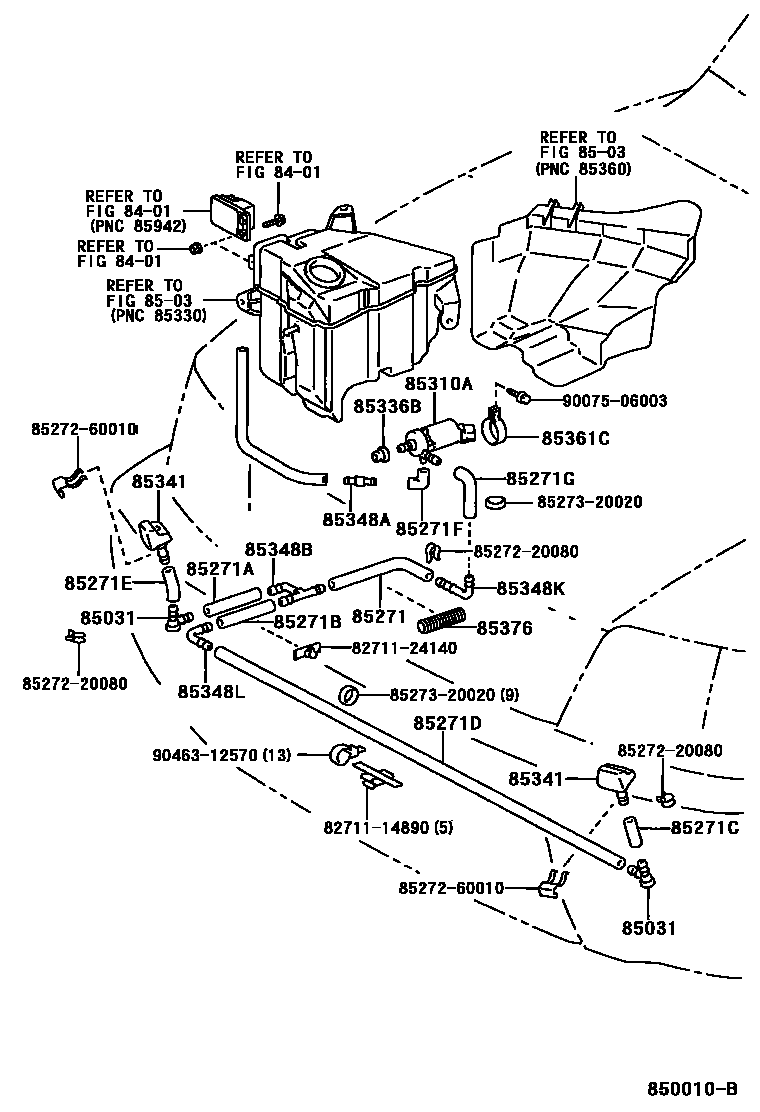

HEADLAMP CLEANER
8401
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
LH
RH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=170
85271BHOSE, HEADLAMP CLEANER, NO.3
L=170
L=190
85271CHOSE, HEADLAMP CLEANER, NO.4
L=50
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1190
L=1320(*H,L=1150)
85271EHOSE, HEADLAMP CLEANER, NO.6
L=50
85271FHOSE, HEADLAMP CLEANER, NO.7
L=15
L=35
85271GHOSE, HEAD LAMP
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336BPACKING, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85361CBRACKET, WASHER
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8271124140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24140
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527260010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-60010
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007506003
main90075-06003
9046312570
main90463-12570
27 parts on this diagram · 2 diagrams in section
