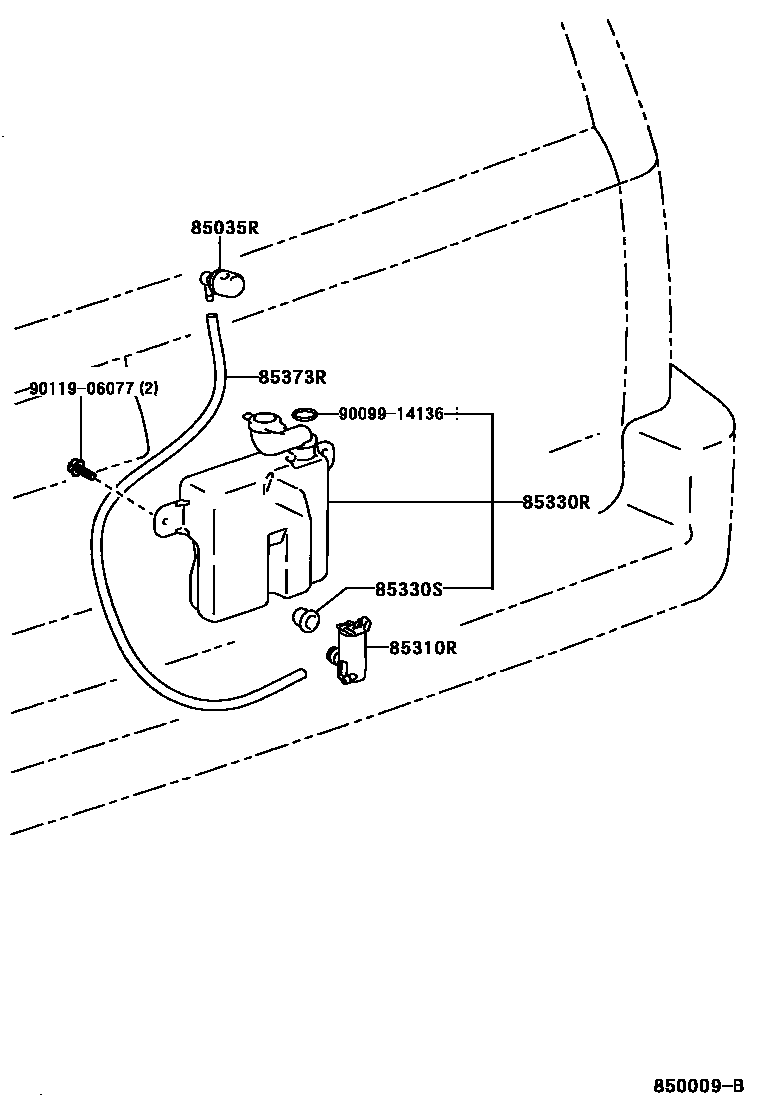

REAR WASHER

0001 1 0002 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-60050iKZJ9#,VZJ9#199604-200209

85310RMOTOR ASSY, REAR WASHER

main85310-22080iKZJ9#,VZJ9#199604-200209

85330RJAR ASSY, REAR WASHER

main85325-60090iKZJ9#,VZJ9#199604-200209

85330SBUSH, REAR WASHER JAR

main90099-32089iKZJ9#,VZJ9#199604-200209

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKZJ9#,VZJ9#199604-199906

L=1450(*H,L=580)

main90099-33080iKDJ9#,KZJ9#,VZJ9#199906-200209

L=1450(*H,L=500)

9009914136

main90099-14136

9011906077

main90119-06077

7 parts on this diagram · 2 diagrams in section
