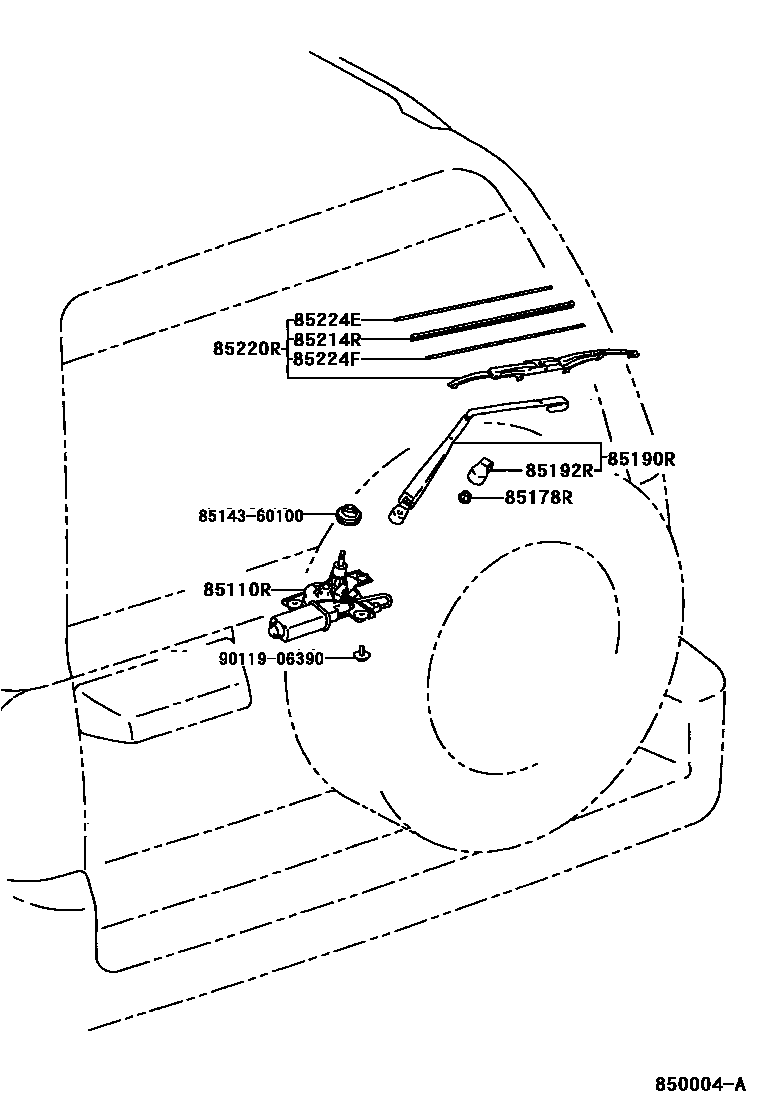

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-60150iKZJ9#,VZJ9#199604-200209

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iKZJ9#,VZJ9#199604-199906

sub90179-06159

main90179-06159iKDJ9#,KZJ9#,VZJ9#199906-200209

85190RARM ASSY, REAR WIPER

main85241-60060iKZJ9#,VZJ9#199604-200209

85192RCOVER, REAR WIPER ARM

main85192-13060iKZJ9#,VZJ9#199604-200209

85214RRUBBER, REAR WIPER

main85214-30280iKZJ9#,VZJ9#199604-200209

85220RBLADE ASSY, REAR WIPER

main85242-30040iKZJ9#,VZJ9#199604-200209

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-30460iKZJ9#,VZJ9#199604-200209

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-30460iKZJ9#,VZJ9#199604-200209

8514360100WIRING, WINDSHIELD WIPER MOTOR LEAD

main85143-60100

9011906390

main90119-06390

10 parts on this diagram · 1 diagram in section
