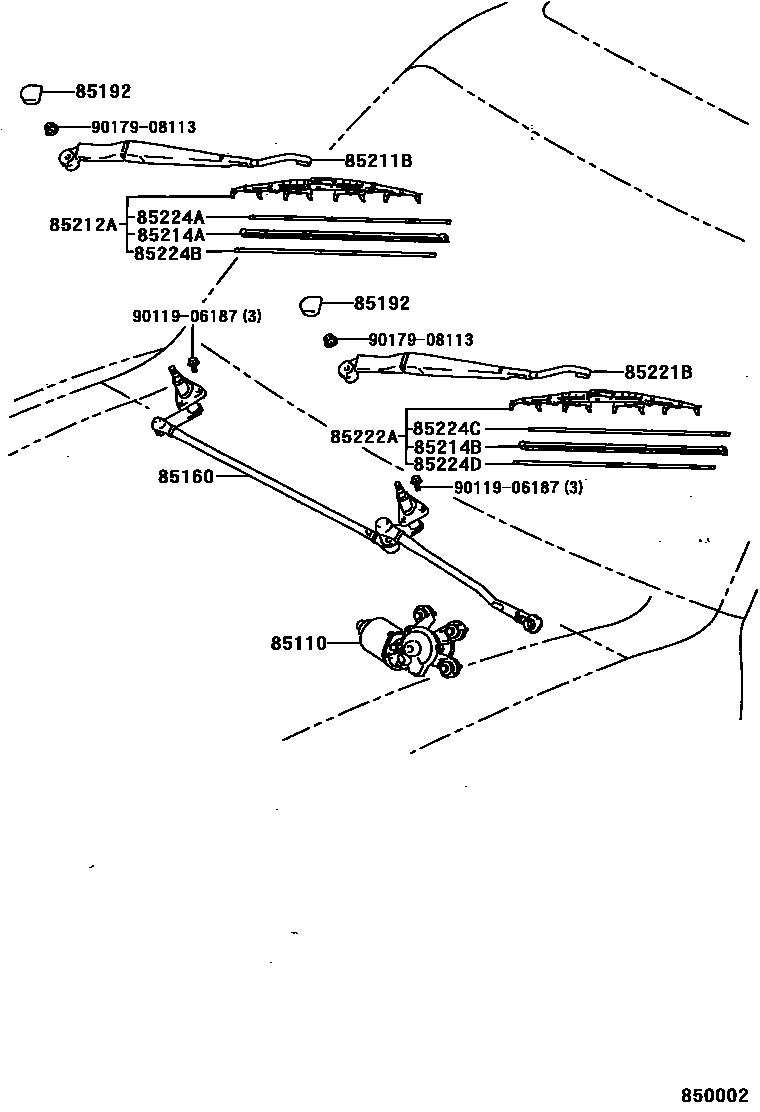

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60240iKZJ9#,VZJ95..RHD199604-200209

main85110-60250iKZJ9#,VZJ9#..LHD199604-200209

85160LINK ASSY, WINDSHIELD WIPER

main85150-60170iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

main85150-60180iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iKDJ9#,KZJ9#,VZJ9#199604-200209

85211BARM, FRONT WIPER, RH

main85211-60110iKZJ9#,VZJ95..RHD199604-199802

main85211-60120iKZJ9#,VZJ9#..LHD199604-200209

main85211-60170iKZJ9#,VZJ95..RHD199802-200209

85212ABLADE, FR WIPER, RH

main85212-60080iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

sub85212-60081

main85212-60090iKZJ9#,VZJ9#..LHD199604-200209

sub85212-33160

85214ARUBBER, WIPER, RH

main85214-60060iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

main85214-60070iKZJ9#,VZJ95..RHD199604-200209

sub85214-53041

85214BRUBBER, WIPER, LH

main85214-35030iKZJ9#,VZJ95..RHD199604-200209

sub85214-22420

main85214-60070iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

sub85214-53041

85221BARM, FRONT WIPER, LH

main85221-60130iKZJ9#,VZJ9#..LHD199604-199802

main85221-60140iKZJ9#,VZJ95..RHD199604-200209

main85221-60190iKZJ9#,VZJ9#..LHD199802-200209

85222ABLADE, FR WIPER, LH

main85222-60140iKZJ9#,VZJ9#..LHD199604-200209

sub85222-60141

main85222-60150iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

sub85222-22780

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60090iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

main85224-60100iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60090iKZJ9#,VZJ95..RHD199604-200209

main85224-60100iKZJ9#,VZJ9#..LHD199604-200209

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60090iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

main85224-60100iKZJ9#,VZJ95..RHD199604-200209

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60090iKZJ9#,VZJ9#..LHD199604-200209

main85224-60100iKZJ9#,VZJ95..RHD199604-200209

9011906187

main90119-06187

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section
