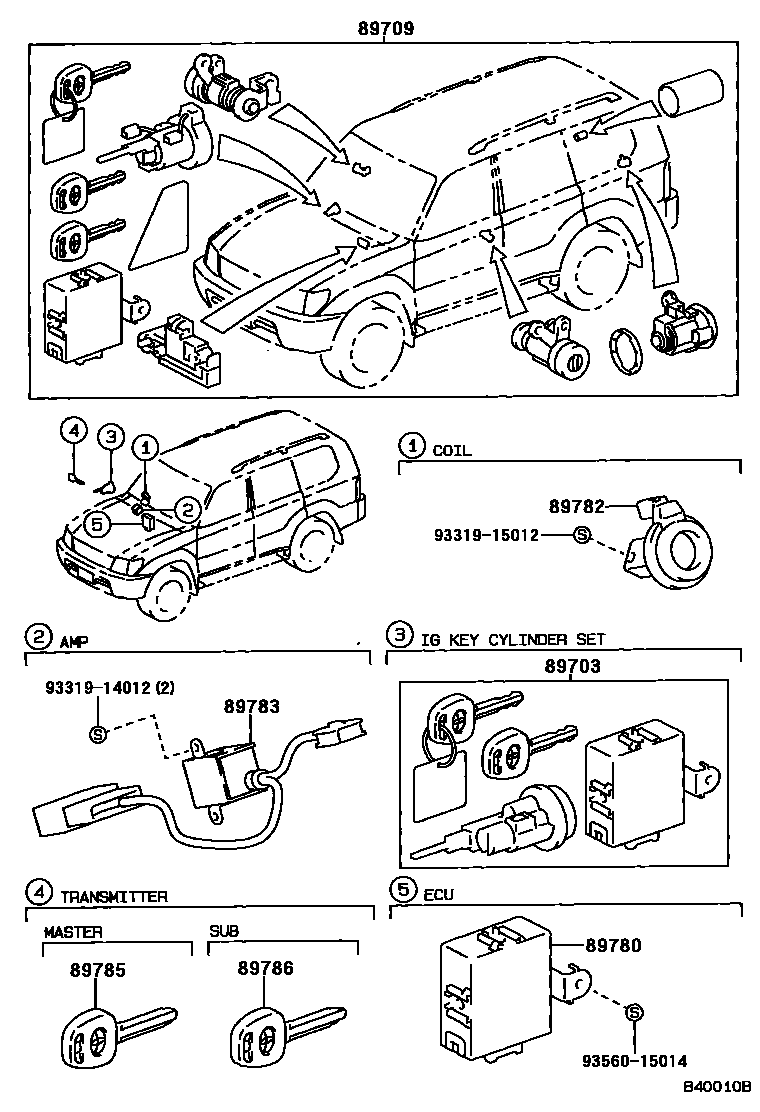

ANTI-THEFT DEVICE

0001 1 0002 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-60030iKZJ9#,VZJ95..RHD199604-199801

main89703-60040iKZJ9#,VZJ9#..LHD199604-199801

main89703-60350iKZJ9#,VZJ95..RHD199801-199906

main89703-60360iKZJ9#,VZJ9#..LHD199801-199906

89709COMPUTER SET, TRANSPONDER KEY

main89709-60040iKZJ9#,VZJ95..RHD199604-199706

W(SPARE KEY)

main89709-60041iKZJ9#,VZJ95..RHD199706-199801

W(SPARE WHEEL LOCK KEY CYLINDER)

main89709-60050iKZJ9#,VZJ9#..LHD199604-199706

W(SPARE KEY)

main89709-60051iKZJ9#,VZJ9#..LHD199706-199801

W(SPARE KEY)

main89709-60060iKZJ9#,VZJ95..RHD199604-199706

main89709-60061iKZJ9#,VZJ95..RHD199706-199801

main89709-60070iKZJ9#,VZJ9#..LHD199604-199706

main89709-60071iKZJ9#,VZJ9#..LHD199706-199801

sub89709-60051

main89709-60400iKZJ9#,VZJ95..RHD199801-199906

W(SPARE WHEEL CARRIER W/KEY LOCK)

main89709-60410iKZJ9#,VZJ9#..LHD199801-199906

W(SPARE WHEEL CARRIER W/KEY LOCK)

main89709-60420iKZJ9#,VZJ95..RHD199801-199906

sub89709-60400

main89709-60430iKZJ9#,VZJ9#..LHD199801-199906

sub89709-60410

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-60030iKZJ9#,VZJ95..RHD199604-199801

main89780-60040iKZJ9#,VZJ9#..LHD199604-199801

main89780-60070iKZJ9#,VZJ9#..LHD199801-199906

main89780-60080iKZJ9#,VZJ95..RHD199801-199906

main89780-60160iKDJ9#,KZJ9#..LHD199906-200209

main89780-60170iKDJ9#,KZJ9#..RHD199906-200106

sub89780-60171

main89780-60171iKDJ9#,KZJ95..RHD200106-200209

89782COIL, TRANSPONDER KEY

main89782-60022iKZJ9#,VZJ9#199604-200209

89783AMPLIFIER, TRANSPONDER KEY

main89783-60020iKZJ9#,VZJ9#199604-200209

main89783-60070iVZJ9#199906-200209

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iKZJ9#,VZJ9#199604-199906

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iKZJ9#,VZJ9#199604-200209

9331914012

main93319-14012

9331915012

main93319-15012

9356015014

main93560-15014

10 parts on this diagram · 2 diagrams in section
