WIRELESS DOOR LOCK

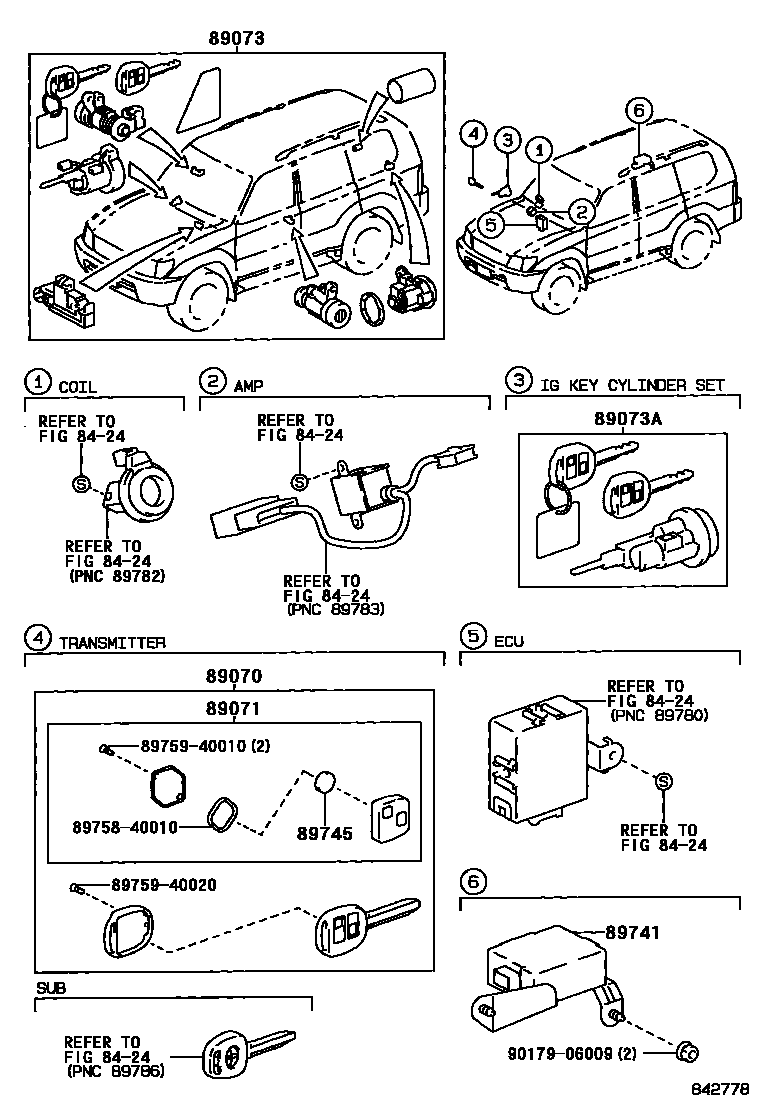

Parts diagram
8424
89070TRANSMITTER ASSY, DOOR CONTROL
main89070-60360i199906-200012
sub89070-60361
main89070-60361i200012-200209
sub89070-60362
main89070-60410i199906-200012
sub89070-60361
main89070-60420i199906-200012
FRANCE SPEC
sub89070-60361
main89070-60430i199906-200012
GERMAN SPEC
sub89070-60361
main89070-60440i199906-200012
DENMARK OR ITALY SPEC
sub89070-60361
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-60080i199906-200012
sub89071-60081
main89071-60081i200012-200209
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
main89073-60410i199906-200012
W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60411
main89073-60411i200012-200209
W(SPARE WHEEL CARRIER W/KEY LOCK)
main89073-60420i199906-200012
sub89073-60421
main89073-60421i200012-200209
sub89073-60422
main89073-60430i199906-200012
W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60411
main89073-60440i199906-200012
sub89073-60421
main89073-60450i199906-200012
FRANCE SPEC & W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60411
main89073-60460i199906-200012
FRANCE SPEC
sub89073-60421
main89073-60470i200008-200012
GERMAN SPEC & W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60411
main89073-60470i199906-200008
GERMAN SPEC
sub89073-60411
main89073-60490i199906-200012
ITALY SPEC & W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60411
main89073-60500i199906-200012
DENMARK OR ITALY SPEC
sub89073-60421
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
main89073-60510i199906-200012
sub89073-60511
main89073-60511i200012-200209
sub89073-60512
main89073-60520i199906-200012
sub89073-60511
main89073-60530i199906-200012
FRANCE SPEC
sub89073-60511
main89073-60540i199906-200008
GERMAN SPEC
sub89073-60511
main89073-60540i200008-200012
GERMAN SPEC & W(SPARE WHEEL CARRIER W/KEY LOCK)
sub89073-60511
main89073-60550i199906-200012
DENMARK OR ITALY SPEC
sub89073-60511
89741RECEIVER, DOOR CONTROL
main89741-60290i199906-200012
sub89741-60291
main89741-60291i200012-200209
main89741-60300i199906-200012
sub89741-60301
main89741-60301i200012-200209
89745BATTERY, TRANSMITTER
main89745-40010i199906-200209
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975940020SCREW, DOOR CONTROL TRANSMITTER
main89759-40020
9017906009
main90179-06009

11 parts on this diagram · 1 diagram in section
