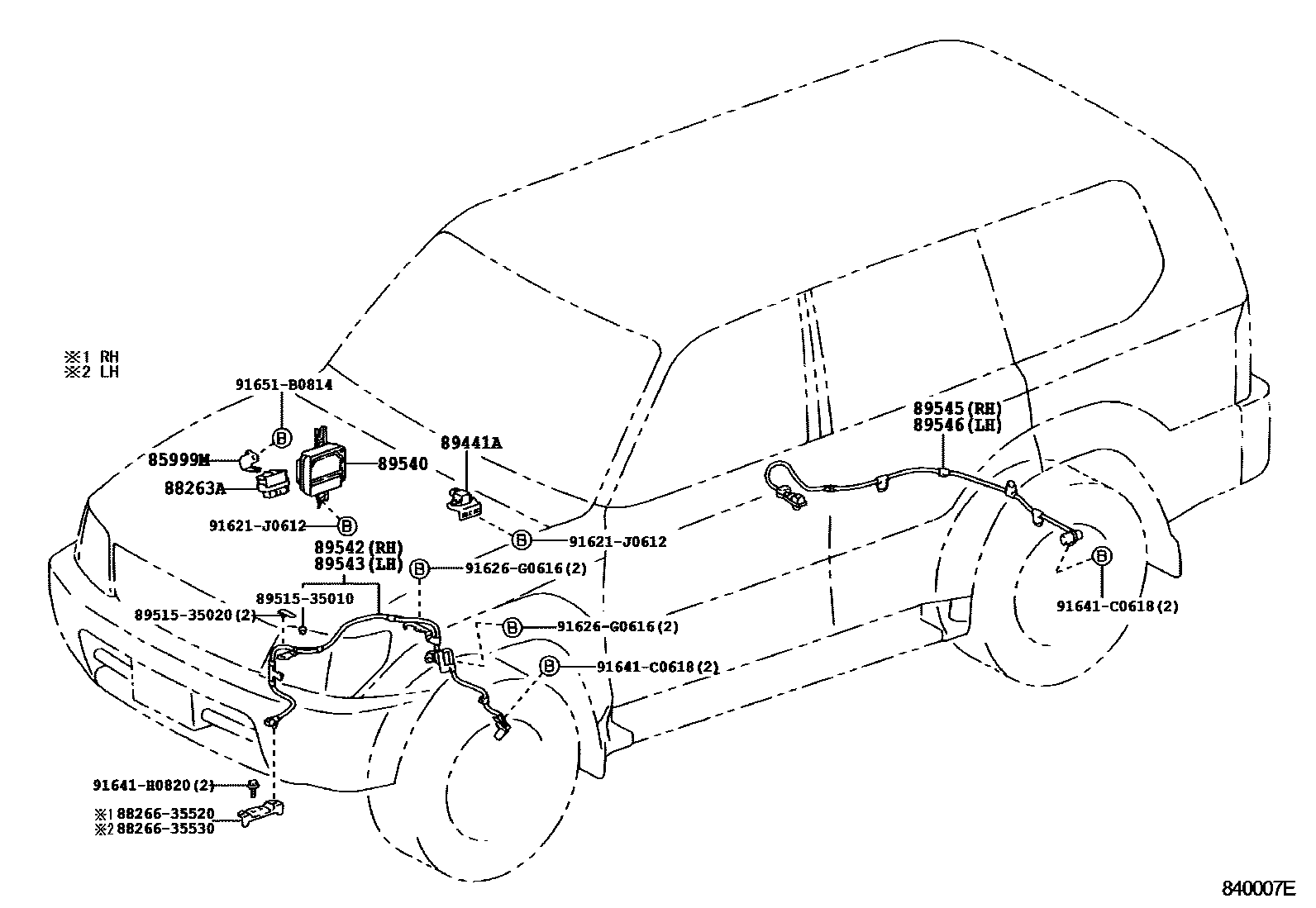

ABS & VSC

0001 1 0002 1W(ACTIVE TRC)

85999MBRACKET, RELAY

main85999-35070iKZJ9#,VZJ95..RHD199604-200209

main85999-35080iKZJ9#,VZJ9#..LHD199604-200209

88263ARELAY, SKID CONTROL

main88263-24020iKDJ9#..ATM200008-200209

W(ACTIVE TRC)

main88263-35090iKZJ9#,VZJ9#199604-200209

89441ASENSOR, DECELERATION

main89440-35030iKZJ9#,VZJ9#199604-199906

main89440-60100iKDJ9#,KZJ9#,VZJ9#199906-200209

89540COMPUTER ASSY, SKID CONTROL

main89540-60050iKZJ9#,VZJ9#199604-199806

sub89540-60051

main89540-60051iKZJ9#,VZJ9#199806-199906

main89540-60060iKZJ9#,VZJ9#199604-199807

W(DEFERENTIAL LOCK)

sub89540-60061

main89540-60061iKZJ9#,VZJ9#199807-199906

W(DIFFERENTIAL LOCK)

main89540-60090iKDJ9#,KZJ9#,VZJ9#199906-200209

main89540-60100iKDJ9#,KZJ9#,VZJ9#199906-200209

W(DIFFERENTIAL LOCK)

main89540-60170iKDJ95..RHD..ATM200008-200209

W(ACTIVE TRC)

main89540-60190iKDJ95..LHD..ATM200008-200209

W(ACTIVE TRC)

main89540-60200iKDJ90..ATM200008-200209

W(ACTIVE TRC)

main89540-60210iVZJ90..ATM200108-200209

W(ACTIVE TRC)

main89540-60220iVZJ95..LHD..ATM200108-200209

W(ACTIVE TRC)

89542SENSOR, SPEED, FRONT RH

main89542-35050iKZJ9#,VZJ9#199604-200209

89543SENSOR, SPEED, FRONT LH

main89543-35050iKZJ9#,VZJ9#199604-200209

89545SENSOR, SPEED, REAR RH

main89545-35030iKZJ9#,VZJ9#199604-200209

89546SENSOR, SPEED, REAR LH

main89546-35030iKZJ9#,VZJ9#199604-200209

8826635520CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35520

8826635530CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35530

8951535010CLIP

main89515-35010

8951535020CLIP

main89515-35020

91621J0612

main91621-J0612

91626G0616

main91626-G0616

91641C0618

main91641-C0618

91641H0820

main91641-H0820

91651B0814

main91651-B0814

17 parts on this diagram · 2 diagrams in section
