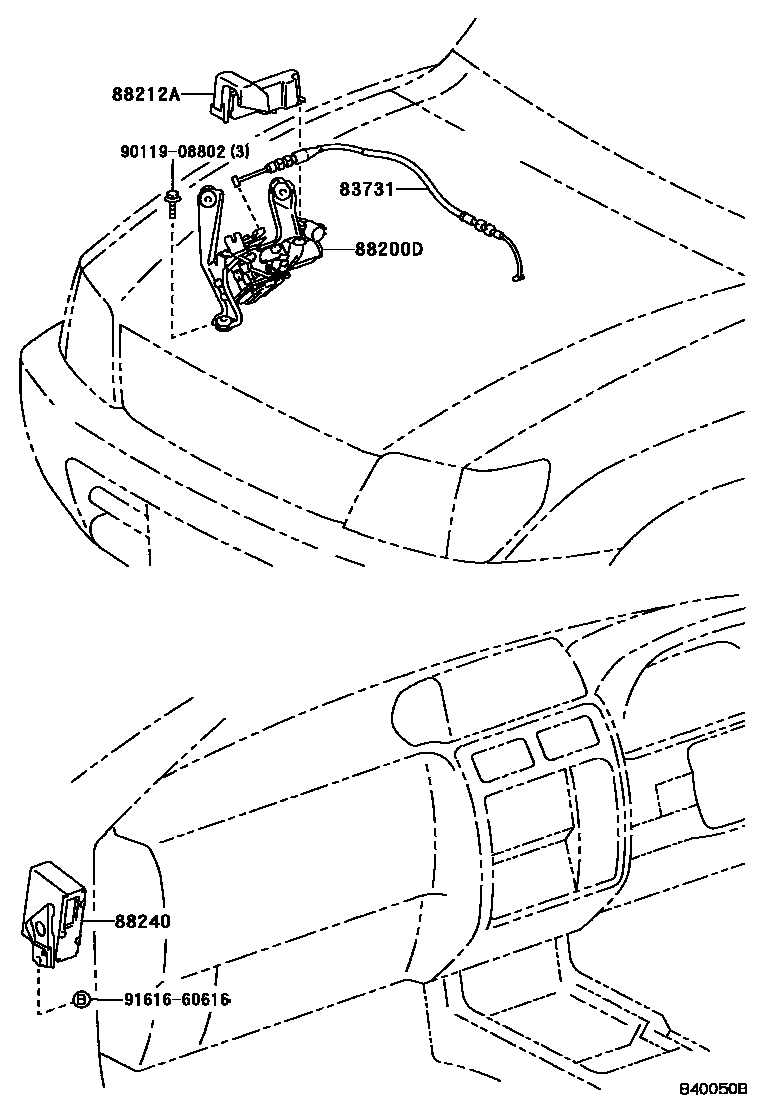

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

83731CABLE, CRUISE CONTROL

main83731-35190iVZJ95..RHD199604-199906

main83731-35230iVZJ9#..LHD..ATM199604-200209

main83731-60040iVZJ9#..MTM199604-200209

main83731-60060iVZJ95..RHD199906-200209

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-35270iVZJ95..RHD199604-199906

main88200-35280iVZJ9#..LHD199604-200209

main88200-60040iVZJ95..RHD199906-200209

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-14120iVZJ95..RHD199906-200209

main88212-35100iVZJ95..RHD199604-199906

main88212-35110iVZJ9#..LHD199604-200209

88240COMPUTER ASSY, CRUISE CONTROL

main88240-60120iVZJ9#..LHD199604-199801

main88240-60140iVZJ95..RHD199604-199906

main88240-60240iVZJ9#..LHD199801-199906

main88240-60250iVZJ9#199906-200209

9011908802

main90119-08802

9161660616

main91616-60616

6 parts on this diagram · 3 diagrams in section
