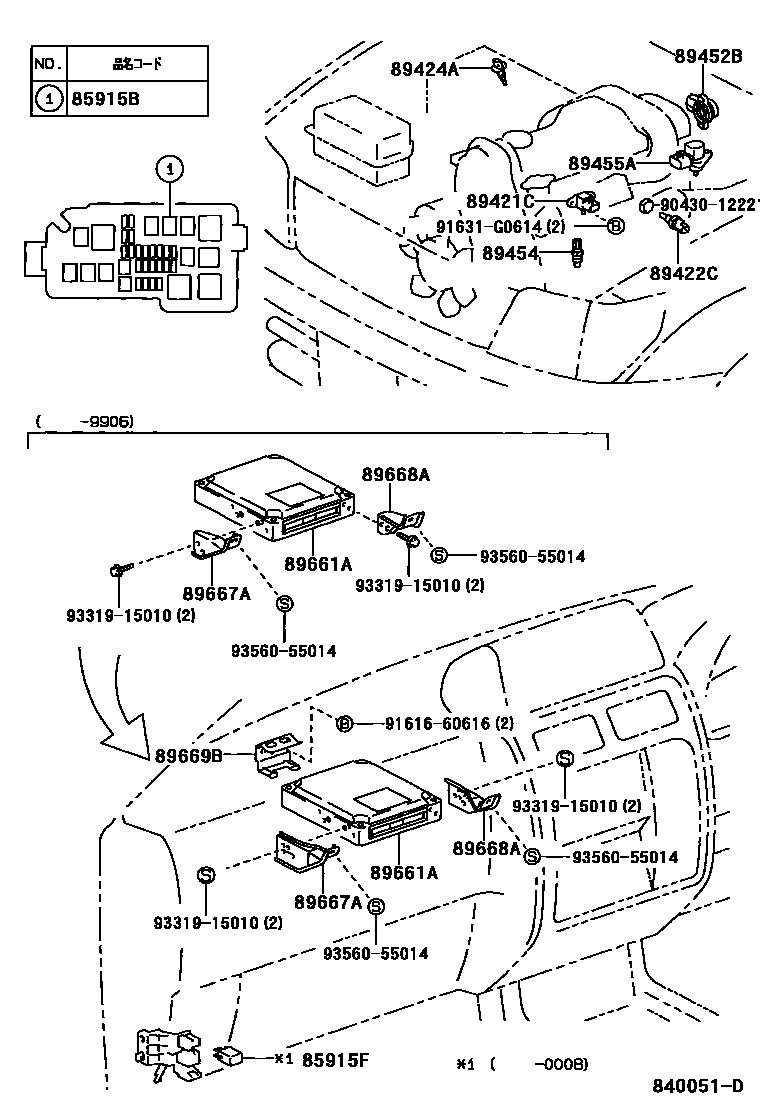

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iKDJ9#,KZJ9#199604-200209

85915FRELAY, SPILL VALVE

main90987-02012iKZJ9#199604-200209

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iKDJ9#200008-200209

main89421-60030iKZJ9#199604-200209

sub89421-60040

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iKZJ9#199604-200209

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iKZJ9#199604-200209

main89424-60010iKDJ9#200008-200209

89452BSENSOR, THROTTLE POSITION

main89452-22090iKZJ9#199604-200008

89454SENSOR, FUEL TEMPERATURE

main89454-60010iKDJ9#,KZJ9#199604-200209

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKZJ9#..LHD200008-200209

89661ACOMPUTER, ENGINE CONTROL

main89661-60530iKZJ9#..MTM199604-200008

main89661-60540iKZJ9#..MTM199604-199801

W(ENGINE IMMOBILIZER SYSTEM)

main89661-60550iKZJ9#..ATM199604-200008

main89661-60560iKZJ9#..ATM199604-199801

W(ENGINE IMMOBILIZER SYSTEM)

main89661-60780iKZJ9#..MTM199801-200008

W(ENGINE IMMOBILIZER SYSTEM)

main89661-60790iKZJ9#..ATM199801-200008

W(ENGINE IMMOBILIZER SYSTEM)

main89666-60510iKDJ9#..MTM200008-200101

sub89666-60511

main89666-60511iKDJ9#..MTM200101-200209

main89666-60520iKDJ9#..ATM200008-200101

sub89666-60521

main89666-60521iKDJ9#..ATM200101-200209

main89666-60530iKZJ9#..LHD..MTM200008-200209

PART NUMBER LABEL=89666-60530

main89666-60540iKZJ95..LHD..ATM200008-200209

PART NUMBER LABEL=89666-60540

main89666-60550iKZJ9#..MTM200008-200209

PART NUMBER LABEL=89666-60550

main89666-60560iKZJ95..ATM200008-200209

PART NUMBER LABEL=89666-60560

main89666-60570iKZJ95..MTM200008-200209

PART NUMBER LABEL=89666-60570

main89666-60580iKZJ95..ATM200008-200209

PART NUMBER LABEL=89666-60580

main89666-60590iKZJ95..LHD..ATM200008-200209

PART NUMBER LABEL=89666-60590

main89666-60680iKZJ9#..LHD..MTM200008-200209

PART NUMBER LABEL=89666-60680

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-35080iKDJ9#,KZJ9#200008-200209

main89667-60120iKZJ9#199604-200008

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35120iKDJ9#,KZJ9#200008-200209

main89668-60120iKZJ9#199604-200008

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iKZJ9#199604-200008

main89669-35060iKDJ9#,KZJ9#200008-200209

9043012221

main90430-12221

9161660616

main91616-60616

91631G0614

main91631-G0614

9331915010

main93319-15010

9356055014

main93560-55014

17 parts on this diagram · 2 diagrams in section
