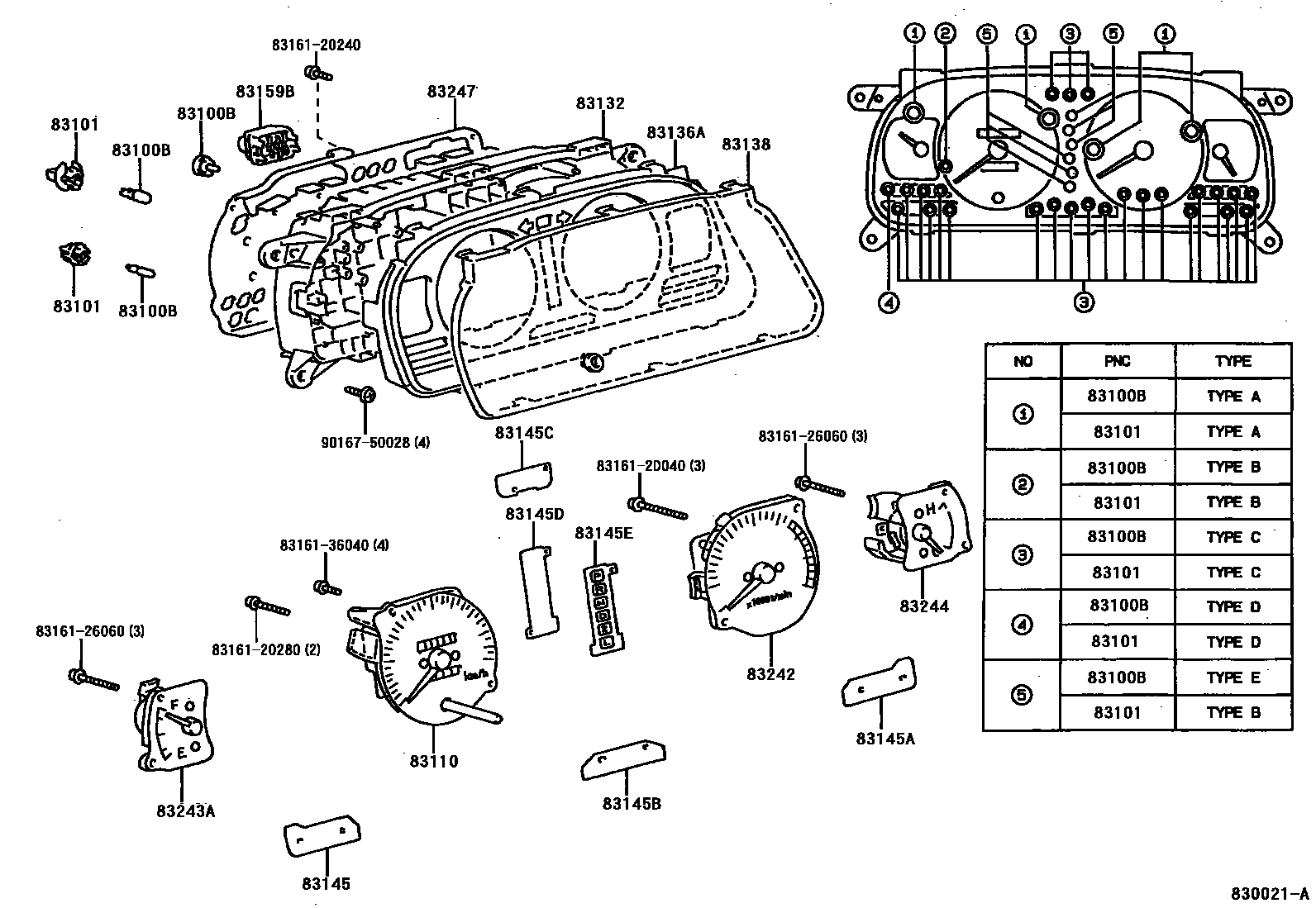

METER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,W(BLUE CAP),TYPE A
12V 3.0W,TYPE C
12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION
12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION
14V 1.12W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION
14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION
12V 1.12W,W(SOCKET),TYPE E
12V 1.4W,W(BLUE CAP),TYPE B
12V 1.2W W/O SOCKET,TYPE C
83101SOCKET SUB-ASSY, COMBINATION METER BULB
TYPE B
TYPE A
TYPE C
83110SPEEDOMETER ASSY
KM/H
MPH & KM/H
KM/H
KM/H
MPH & KM/H
MPH & KM/H
KM/H,HONG KONG SPEC
MPH & KM/H
MPH & KM/H
HONG KONG OR THAILAND SPEC
W(VSC & ACTIVE TRC)
MPH & KM/H
MPH & KM/H & W(VSC & ACTIVE TRC)
W(VSC & ACTIVE TRC)
MPH & KM/H & W(VSC & ACTIVE TRC)
83132CASE, COMBINATION METER
HONG KONG OR THAILAND SPEC
W(VSC & ACTIVE TRC)
W(VSC & ACTIVE TRC)
83136ACOVER, COMBINATION METER
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
HONG KONG SPEC
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
HONG KONG OR THAILAND SPEC
83145CLENS, METER, NO.4
83145DLENS, METER, NO.5
83145ELENS, METER, NO.6
83159BRELAY ASSY, METER
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
W(VSC & ACTIVE TRC)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
HONG KONG SPEC
8316120240CASE, COMBINATION METER MIRROR, NO.1
main83161-20240
8316120280CASE, COMBINATION METER MIRROR, NO.1
main83161-20280
8316126060CASE, COMBINATION METER MIRROR, NO.1
main83161-26060
831612D040CASE, COMBINATION METER MIRROR, NO.1
main83161-2D040
8316136040CASE, COMBINATION METER MIRROR, NO.1
main83161-36040
9016750028
main90167-50028
23 parts on this diagram · 5 diagrams in section
