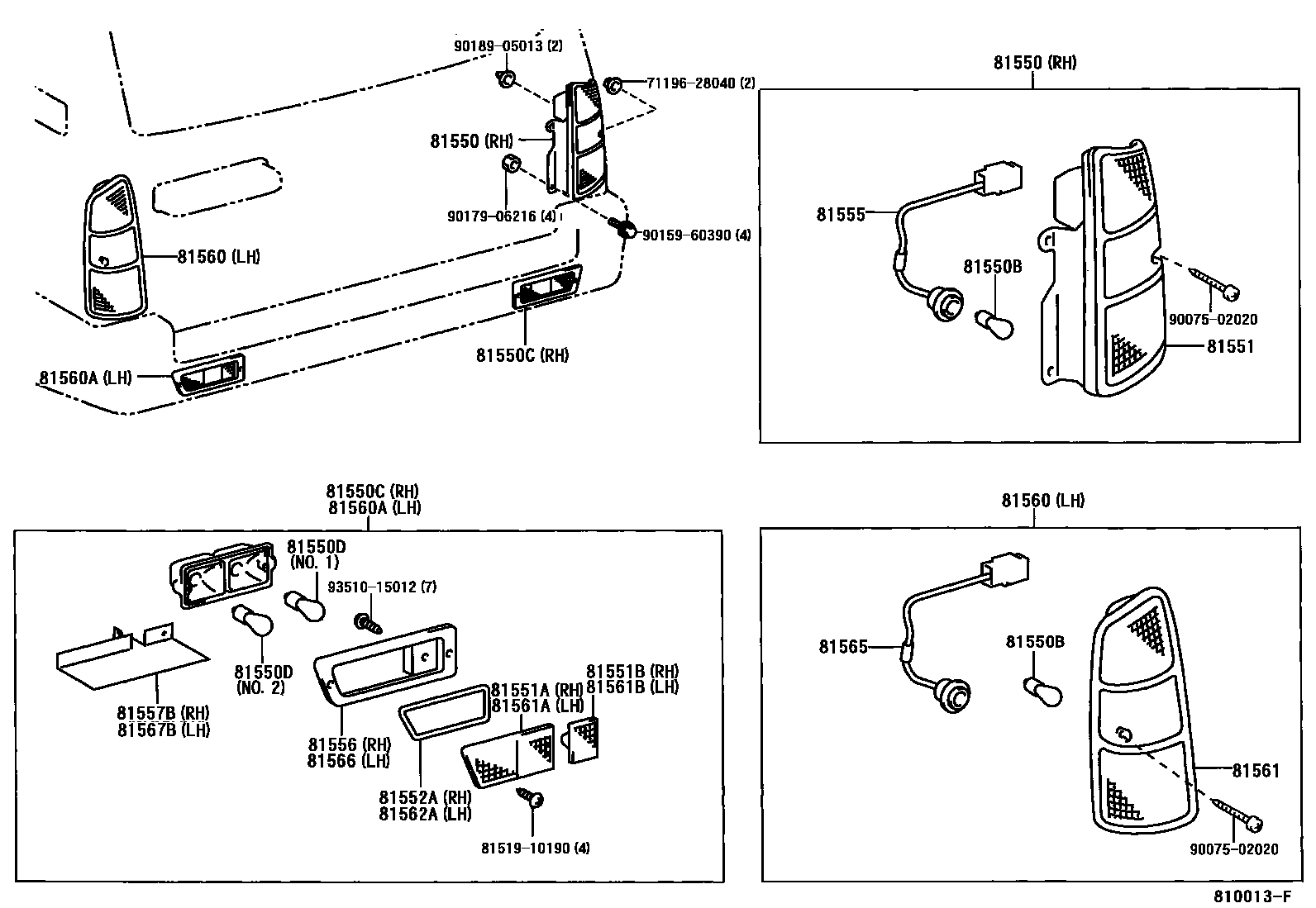

REAR COMBINATION LAMP

0001 1 0002 1LHD;RHD(NATO SPEC) 0003 1THAILAND SPEC 0004 1NEW ZEALAND SPEC 0005 1 0006 1HONG KONG,THAILAND,GENERAL SP0007 1LHD;RHD(NATO SPEC) 0008 1ISRAEL SPEC

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60490iVZJ95..RHD¥17,500199801-199906

THAILAND SPEC

main81550-60500iKZJ9#,VZJ95..RHD¥15,900199604-199906

main81550-60510iKZJ9#,VZJ95..RHD¥17,000199604-199906

RH TRAFFIC SPEC

main81550-60510iKZJ9#,VZJ9#..LHD¥17,000199604-199906

main81550-60530iKZJ95..RHD..MTM¥17,000199801-199906

NEW ZEALAND SPEC

main81550-60600iKZJ95..LHD..ATM¥17,400199906-200209

HONG KONG OR THAILAND SPEC

main81550-60600iVZJ95..RHD¥17,400199906-200209

GENERAL SPEC

main81550-60600iKZJ9#..LHD..MTM¥17,400200008-200209

main81550-60620iKDJ9#,KZJ9#,VZJ95..RHD¥16,400199906-200209

main81550-60630iKDJ9#,KZJ90,VZJ95..RHD¥14,800199906-200209

NATO SPEC

main81550-60630iKDJ9#,KZJ90,VZJ95..RHD¥14,800199906-200209

W(REAR FOG LAMP = LH)

main81550-60630iKDJ9#..LHD¥14,800200008-200209

main81550-60660iKZJ95..LHD199906-200209

ISRAEL SPEC

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iKDJ90,KZJ90..ATM;KDJ95,KZJ95..LHD¥220199906-200209

12V 21W

main90981-13043iKDJ9#,KZJ9#,VZJ9#¥220199906-200209

12V 21W,HONG KONG OR THAILAND SPEC

main90981-13043iKDJ9#,KZJ9#,VZJ9#¥220199906-200209

12V 21W,ISRAEL SPEC

main90981-13043iKZJ90¥220200008-200209

12V 21W,GENERAL SPEC

main90981-13044iVZJ95..RHD;KZJ95..LHD..ATM¥230199906-200209

12V 21/5W

main99132-11210iVZJ95..RHD¥170199604-199801

12V 21W,HONG KONG OR THAILAND SPEC

main99132-11210iVZJ95..RHD¥170199801-199906

12V 21W,THAILAND SPEC

main99132-11210iKZJ9#,VZJ9#¥170199604-199906

12V 21W

main99132-12050iKDJ90..ATM;KDJ95..LHD¥110200008-200209

12V 5W,ISRAEL SPEC

main99132-12050iKZJ90..ATM;KZJ95..LHD¥110199906-200008

12V 5W

main99132-21210iVZJ95..RHD;KZJ95..RHD..MTM¥190199801-199906

12V 21/5W

81550CLAMP ASSY, REAR COMBINATION, RH

main81550-60520iKZJ9#,VZJ9#¥14,700199604-200209

81550DBULB(FOR REAR COMBINATION LAMP)

main99132-11210iKZJ9#,VZJ9#¥170199604-199906

12V 21W,NO.2

main99132-11210iKDJ9#,KZJ9#,VZJ9#¥170199906-200209

12V 21W

main99132-21210iKZJ9#,VZJ9#¥190199604-200209

12V 21/5W,NO.1

81551LENS, REAR COMBINATION LAMP, RH

main81551-60490iVZJ95..RHD¥14,400199801-199906

THAILAND SPEC

main81551-60500iKZJ9#,VZJ95..RHD¥14,400199604-199906

main81551-60510iKZJ9#,VZJ9#..LHD¥14,400199604-199906

main81551-60510iKZJ9#,VZJ95..RHD¥14,400199604-199906

RH TRAFFIC SPEC

main81551-60530iKZJ95..RHD..MTM199801-199906

NEW ZEALAND SPEC

main81551-60600iVZJ95..RHD¥15,000199906-200209

GENERAL SPEC

main81551-60600iVZJ95..RHD¥15,000199906-200209

HONG KONG OR SINGAPORE SPEC

main81551-60600iKZJ9#..LHD..MTM¥15,000200008-200209

main81551-60620iKDJ9#,KZJ95,VZJ95..RHD199906-200209

main81551-60660iKDJ90..ATM;KDJ95..LHD¥14,800200008-200209

main81551-60660iKZJ90..ATM;KZJ95..LHD¥14,800199906-200008

ISRAEL SPEC

81551ALENS, REAR COMBINATION LAMP, RH

main81551-60363iKDJ9#,KZJ9#,VZJ9#¥1,240199604-200209

81551BLENS, REAR COMBINATION LAMP, RH

main81551-60520iKDJ9#,KZJ9#,VZJ9#¥1,250199604-200209

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-90K15iKZJ9#,VZJ9#¥490199604-200209

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60490iVZJ95..RHD¥2,470199801-199906

THAILAND SPEC

main81555-60500iKZJ9#,VZJ95..RHD¥1,600199604-199906

main81555-60530iKZJ95..RHD¥2,030199801-199906

NEW ZEALAND SPEC

main81555-60600iKZJ95..LHD..ATM¥2,470199906-200209

HONG KONG OR THAILAND SPEC

main81555-60600iKZJ9#..LHD..MTM¥2,470200008-200209

main81555-60620iKZJ90..RHD¥1,600199906-200209

main81555-60660iKZJ90..ATM;KZJ95..LHD¥2,470199906-200209

ISRAEL SPEC

81556RIM, REAR COMBINATION LAMP, RH

main81556-60520iKZJ9#,VZJ9#¥2,760199604-200209

81557BPROTECTOR, REAR COMBINATION LAMP, RH

main81558-60520iKZJ9#,VZJ9#¥1,000199604-200209

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60410iVZJ95..RHD¥17,500199801-199906

THAILAND SPEC

main81560-60420iKZJ9#,VZJ95..RHD¥15,900199604-199906

main81560-60430iKZJ9#,VZJ9#..LHD¥17,000199604-199906

main81560-60430iKZJ9#,VZJ95..RHD¥17,000199612-199906

RH TRAFFIC SPEC

main81560-60450iKZJ95..RHD..MTM¥17,000199801-199906

NEW ZEALAND SPEC

main81560-60520iKZJ95..LHD..ATM¥17,400199906-200209

GENERAL SPEC

main81560-60520iKZJ9#..LHD..MTM¥17,400200008-200209

main81560-60520iVZJ95..RHD¥17,400199906-200209

HONG KONG OR THAILAND SPEC

main81560-60540iKDJ9#,KZJ9#,VZJ95..RHD¥16,400199906-200209

main81560-60550iKZJ9#,VZJ9#..LHD¥17,300199906-200209

NATO SPEC

main81560-60550iKZJ9#,VZJ9#..LHD¥17,300199906-200209

W(REAR FOG LAMP)

main81560-60550iKDJ9#..LHD¥17,300200008-200209

main81560-60580iKZJ95..LHD199906-200209

ISRAEL SPEC

81560ALAMP ASSY, REAR COMBINATION, LH

main81560-60440iKDJ9#,KZJ9#,VZJ9#¥14,700199604-200209

81561LENS, REAR COMBINATION LAMP, LH

main81561-60410iVZJ95..RHD¥14,400199801-199906

THAILAND SPEC

main81561-60420iKZJ9#..RHD¥14,400199604-199906

main81561-60430iKZJ9#,VZJ9#..LHD¥14,400199604-199906

main81561-60430iKZJ9#,VZJ95..RHD¥14,400199604-199906

RH TRAFFIC SPEC

main81561-60450iKZJ95..RHD..MTM199801-199906

NEW ZEALAND SPEC

main81561-60520iVZJ95..RHD¥15,000199906-200209

HONG KONG OR THAILAND SPEC

main81561-60520iVZJ95..RHD¥15,000199906-200209

GENERAL SPEC

main81561-60520iKZJ9#..LHD..MTM¥15,000200008-200209

main81561-60540iKDJ9#,KZJ9#,VZJ95..RHD199906-200209

main81561-60550iKDJ9#..LHD200008-200209

main81561-60550iKZJ9#,VZJ9#..LHD199906-200209

W(REAR FOG LAMP)

main81561-60550iKZJ9#,VZJ9#..LHD199906-200209

NATO SPEC

main81561-60580iKZJ95..LHD¥14,800199906-200209

ISRAEL SPEC

81561ALENS, REAR COMBINATION LAMP, LH

main81561-60283iKZJ9#,VZJ9#¥1,240199604-200209

81561BLENS, REAR COMBINATION LAMP, LH

main81561-60440iKZJ9#,VZJ9#¥1,250199604-200209

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-90K15iKZJ9#,VZJ9#¥490199604-200209

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60490iVZJ95..RHD¥2,470199801-199906

THAILAND SPEC

main81555-60530iKZJ95..RHD..MTM¥2,030199801-199906

NEW ZEALAND SPEC

main81555-60600iVZJ95..RHD;KZJ95..LHD..ATM¥2,470199906-200209

GENERAL SPEC

main81555-60600iKZJ9#..LHD..MTM¥2,470200008-200209

main81555-60660iKDJ95..LHD;KDJ90,KZJ90..ATM¥2,470199906-200209

ISRAEL SPEC

main81565-60420iKZJ9#,VZJ95..RHD¥1,600199604-199906

main81565-60430iKZJ9#,VZJ9#..LHD¥2,030199604-199906

main81565-60430iKZJ9#,VZJ95..RHD¥2,030199612-199906

RH TRAFFIC SPEC

main81565-60540iKDJ9#,KZJ9#,VZJ95..RHD¥1,600199906-200209

main81565-60550iKZJ9#,VZJ9#..LHD¥2,030199906-200209

NATO SPEC

main81565-60550iKDJ9#,KZJ90,VZJ95..RHD¥2,030199906-200209

W(REAR FOG LAMP)

main81565-60550iKDJ9#..LHD¥2,030200008-200209

81566RIM, REAR COMBINATION LAMP, LH

main81566-60440iKDJ9#,KZJ9#,VZJ9#¥2,760199604-200209

81567BPROTECTOR, REAR COMBINATION LAMP, LH

main81568-60440iKZJ9#,VZJ9#¥1,000199604-200209

7119628040CLIP(FOR REAR SPOILER)

main71196-28040¥130

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190¥120

9007502020

main90075-02020¥120

9015960390

main90159-60390¥120

9017906216

main90179-06216¥130

9018905013

main90189-05013¥170

9351015012

main93510-15012¥180

27 parts on this diagram · 8 diagrams in section
