ARMREST & VISOR

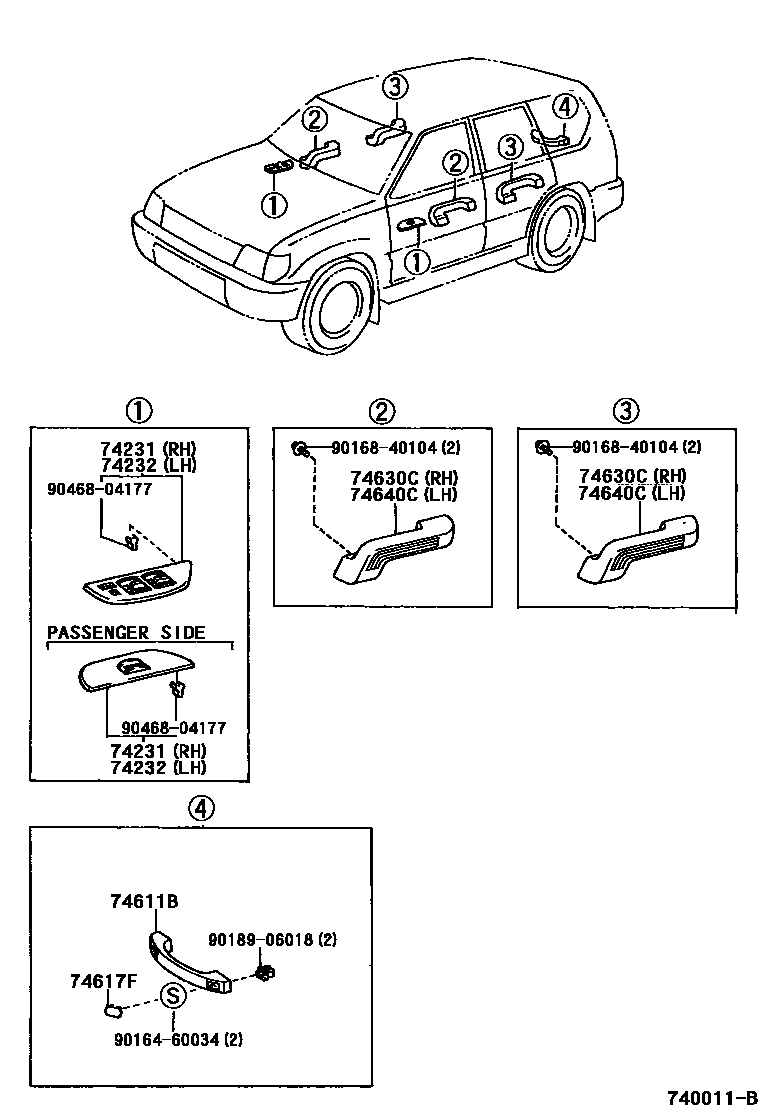

0001 1ARMREST(TYPE A) 0002 1ARMREST(TYPE B) 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60110-B0iKZJ95,VZJ95..RHD199604-199906

MD.MOON MIST,TRIM1#

main74231-60120-B0iKZJ9#,VZJ9#..LHD199604-199906

MD.MOON MIST,TRIM1#

main74231-60130-B0iKZJ90..RHD199604-199906

MD.MOON MIST,TRIM1#

main74231-60310-B0iKDJ90,KZJ90..RHD199906-200209

MD.MOON MIST,TRIM1#

main74231-60310-E0iKDJ90,KZJ90..RHD199906-200209

OAK,TRIM4#

main74231-60320-B0iKDJ95,KZJ95,VZJ95..RHD199906-200209

MD.MOON MIST,TRIM1#

main74231-60320-E0iKDJ95,VZJ95..RHD200008-200108

OAK,TRIM4#

main74231-60330-B0iKDJ9#,KZJ9#,VZJ9#..LHD199906-200209

MD.MOON MIST,TRIM1#

main74231-60330-E0iKDJ95,VZJ95..LHD200008-200108

OAK,TRIM4#

main74231-60340iKDJ90,KZJ90..RHD199906-200209

WOOD GRAIN

main74231-60350iKDJ95,KZJ95,VZJ95..RHD199906-200209

WOOD GRAIN

main74231-60360iKDJ9#,KZJ9#,VZJ9#..LHD199906-200209

WOOD GRAIN

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60090-B0iKZJ9#,VZJ95..RHD199604-199906

MD.MOON MIST,TRIM1#

main74232-60100-B0iKZJ95,VZJ95..LHD199604-199906

MD.MOON MIST,TRIM1#

main74232-60110-B0iKZJ90,VZJ90..LHD199604-199906

MD.MOON MIST,TRIM1#

main74232-60240-B0iKDJ90,KZJ90,VZJ90..LHD199906-200209

MD.MOON MIST,TRIM1#

main74232-60240-E0iKDJ90,KZJ90,VZJ90..LHD199906-200209

OAK,TRIM4#

main74232-60250-B0iKDJ95,KZJ95,VZJ95..LHD199906-200209

MD.MOON MIST,TRIM1#

main74232-60250-E0iKZJ95..LHD200008-200108

OAK,TRIM4#

main74232-60260-B0iKDJ9#,KZJ9#,VZJ95..RHD199906-200209

MD.MOON MIST,TRIM1#

main74232-60260-E0iKDJ95,VZJ95..RHD200008-200108

OAK,TRIM4#

main74232-60270iKDJ90,KZJ90,VZJ90..LHD199906-200209

WOOD GRAIN

main74232-60280iKDJ95,KZJ95,VZJ95..LHD199906-200209

WOOD GRAIN

main74232-60290iKDJ9#,KZJ9#,VZJ95..RHD199906-200209

WOOD GRAIN

74611BGRIP, ASSIST

main74610-10020-B2iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

main74610-10020-E3iKDJ9#,VZJ9#200108-200209

OAK,TRIM4#

74617FPLUG, ASSIST GRIP

main74617-14010-B2×2iKDJ9#,KZJ9#,VZJ9#199906-200209

MD.MOON MIST,TRIM1#

main74617-14010-E2×2iVZJ9#199906-200008

OAK,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-60030-B0×2iKZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

main74630-60030-E0×2iKDJ95,KZJ95,VZJ95199906-200209

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main74641-60010-B0iKDJ95,KZJ95,VZJ95199906-200209

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT

main74641-60010-E0iKDJ9#,VZJ90200108-200209

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main74653-60010-B0iKZJ95,VZJ95199906-200209

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR

main74653-60010-E0iKDJ95200108-200209

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-60010-B0iKDJ90,KZJ90,VZJ90199906-200209

TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main74640-60010-E0×2iKDJ90,KZJ90,VZJ90199906-200209

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main74642-60010-B0iKDJ90,KZJ90,VZJ90199906-200209

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT

main74642-60010-E0iKDJ90,VZJ90200108-200209

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT

main74654-60010-B0iKDJ95200008-200209

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR

main74654-60010-E0iKDJ95200108-200209

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR

9016460034

main90164-60034

9016840104

main90168-40104

9018906018

main90189-06018

9046804177

main90468-04177

10 parts on this diagram · 3 diagrams in section
