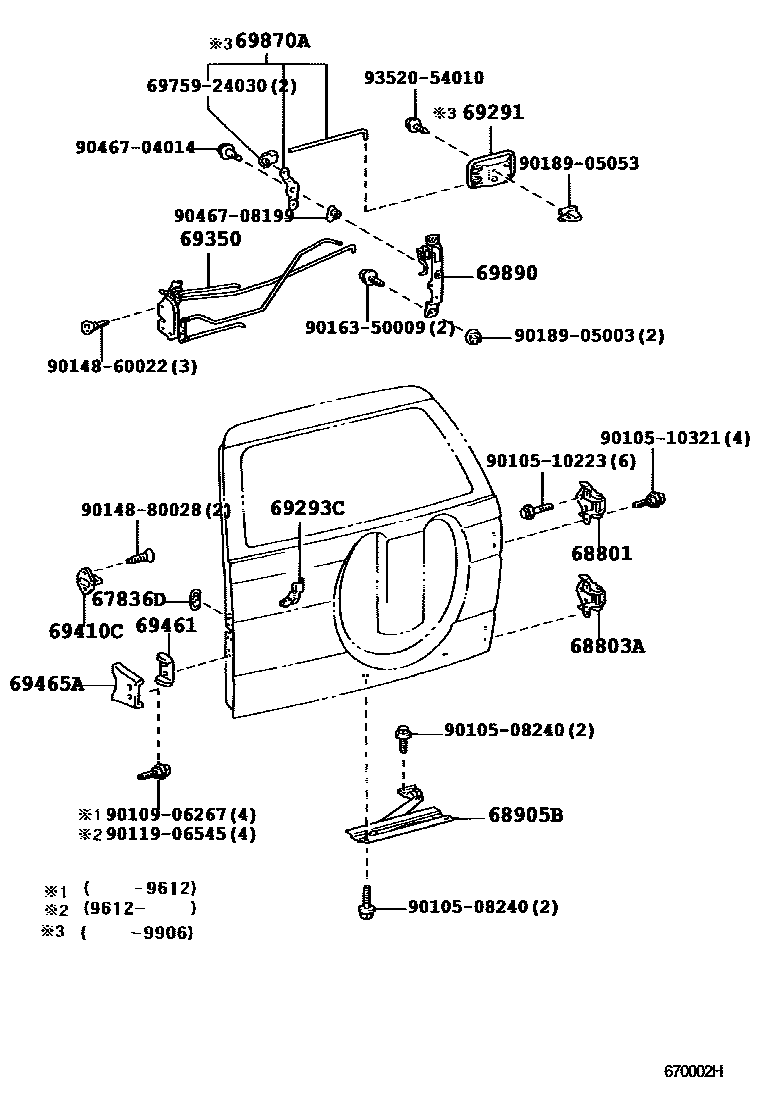

BACK DOOR LOCK & HINGE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH
68905BSTAY SUB-ASSY, BACK DOOR, RH
69291HANDLE ASSY, BACK DOOR INSIDE
69293CSNAP, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
W(POWER DOOR LOCK & INSIDE HANDLE)
W(POWER DOOR LOCK & INSIDE HANDLE)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & INSIDE HANDLE)
W(INSIDE HANDLE)
W(INSIDE HANDLE)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69461STOPPER, BACK DOOR SIDE MALE, RH
sub69461-42012
69465ASTOPPER, BACK DOOR SIDE FEMALE
69870ALINK ASSY, BACK DOOR CONTROL HANDLE, LH
69890LINK ASSY, BACK DOOR CONTROL HANDLE
6975924030SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-24030
9010508240
main90105-08240
9010510223
main90105-10223
9010510321
main90105-10321
9010906267
main90109-06267
9011906545
main90119-06545
9014860022
main90148-60022
9014880028
main90148-80028
9016350009
main90163-50009
9018905003
main90189-05003
9018905053
main90189-05053
9046704014
main90467-04014
9046708199
main90467-08199
9352054010
main93520-54010
26 parts on this diagram · 1 diagram in section
