BACK DOOR PANEL & GLASS

0001 1 0002 1

64739DCOVER, BACK DOOR TRIM REAR WASHER

main64739-60010-B0iKZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

main64739-60010-E0iKDJ9#,VZJ9#199906-200209

OAK,TRIM4#

main64739-60010-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

64780APANEL ASSY, BACK DOOR TRIM

main64780-60140-B0iKDJ9#,KZJ9#,VZJ9#199604-200209

MD.MOON MIST,TRIM1#

sub64780-60140

main64780-60140-E0iKZJ9#199906-200209

OAK,TRIM4#

sub64780-60140

main64780-60140-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

sub64780-60140

main64780-60160-B0iKZJ90..LHD..MTM199604-199906

W(INSIDE HANDLE),MD.MOON MIST,TRIM1#

sub64780-60160

67935BGARNISH, BACK DOOR

main67930-60010-B0iKZJ9#,VZJ9#199805-200209

MD.MOON MIST,TRIM1#

sub67930-60010

main67930-60010-E0iVZJ9#199906-200209

OAK,TRIM4#

sub67930-60010

main67930-60010-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

sub67930-60010

main67935-60050-B0iKZJ9#,VZJ9#199604-199805

MD.MOON MIST,TRIM1#

sub67930-60010

67937AGARNISH, BACK DOOR SIDE

main67937-60030-B1iKZJ9#,VZJ9#199604-200209

MD. MOON MIST,TRIM1#

sub67937-60030

main67937-60030-E0iVZJ9#199906-200209

OAK,TRIM4#

sub67937-60030

main67937-60030-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

sub67937-60030

67938AGARNISH, BACK DOOR SIDE, LH

main67938-60020-B1iKDJ9#,KZJ9#,VZJ9#199604-200209

MD. MOON MIST,TRIM1#

sub67938-60020

main67938-60020-E0iKDJ9#,VZJ9#200008-200108

OAK,TRIM40,41

sub67938-60020

main67938-60020-E0iKZJ9#199906-200209

OAK,TRIM4#

sub67938-60020

6777112040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12040

9046805077

main90468-05077

9046805125

main90468-05125

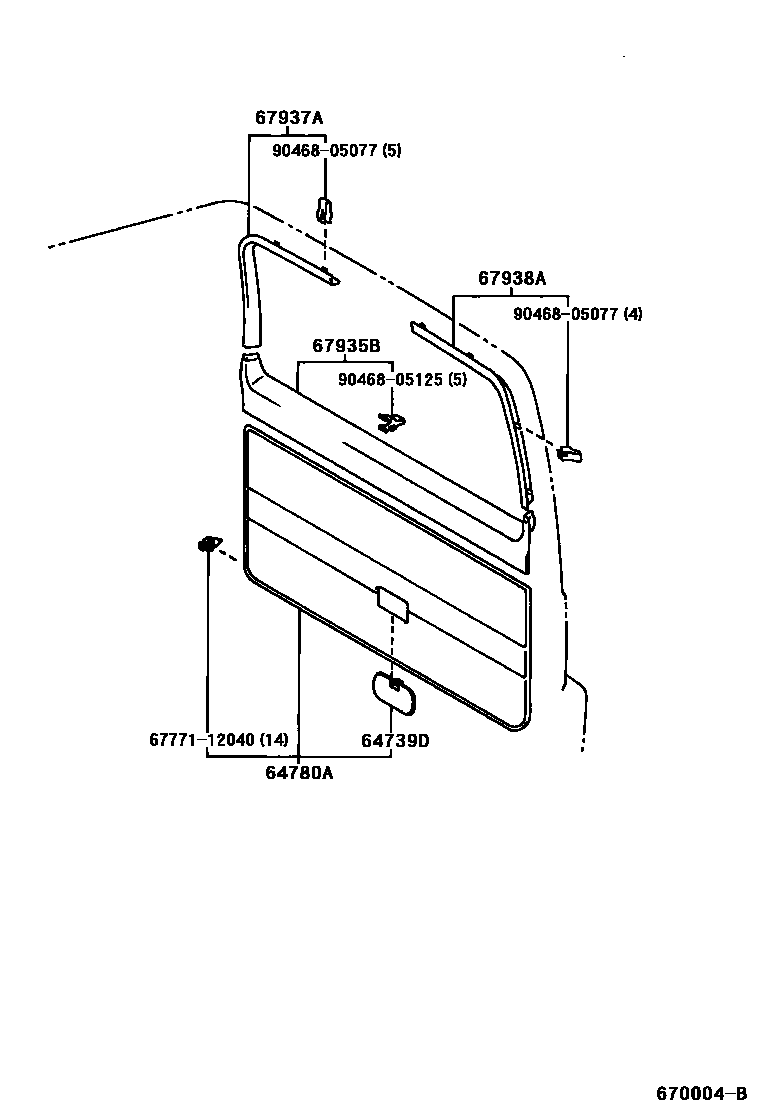

8 parts on this diagram · 2 diagrams in section
