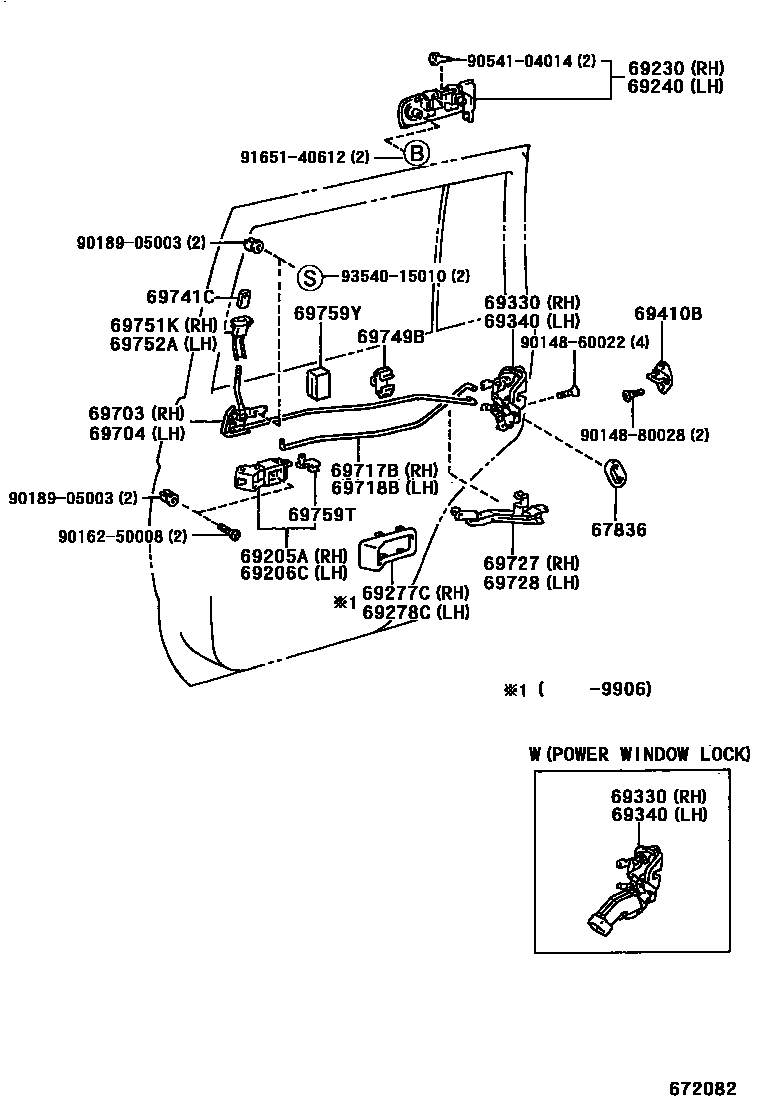

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
W(POWER WINDOW),MD.MOON MIST,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
W(POWER WINDOW),MD.MOON MIST,TRIM1#
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
MD.MOON MIST,TRIM1#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
MD.MOON MIST,TRIM1#
69330LOCK ASSY, REAR DOOR, RH
W(POWER DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(POWER DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69751KHOLDER, DOOR LOCK CONTROL KNOB, RH
69752AHOLDER, DOOR LOCK CONTROL KNOB, LH
69759TSNAP, REAR DOOR INSIDE HANDLE
PINK
GRAY
LH
RH
GREEN
YELLOW
69759YSILENCER, REAR DOOR LOCK LINK
9014860022
main90148-60022
9014880028
main90148-80028
9016250008
main90162-50008
9018905003
main90189-05003
9054104014
main90541-04014
9165140612
main91651-40612
9354015010
main93540-15010
29 parts on this diagram · 1 diagram in section
