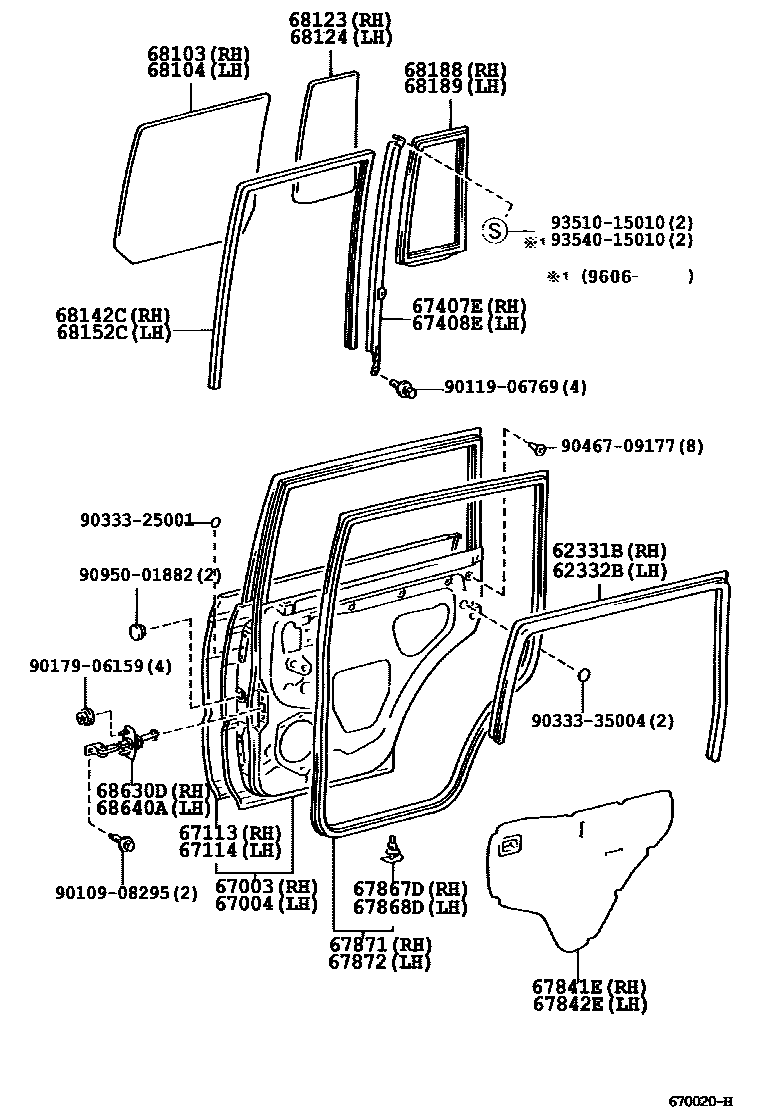

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

62331BWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60010-B0iKZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

sub62331-60010

main62331-60010-B1iKDJ95,KZJ95,VZJ95199906-200209

MOON MIST,TRIM1#

sub62331-60010

main62331-60010-E0iKZJ95199906-200209

MD.OAK,TRIM4#

sub62331-60010

main62331-60010-E0iKDJ95,VZJ95200008-200108

MD.OAK,TRIM40,41

sub62331-60010

62332BWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-60010-B0iKZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

sub62332-60010

main62332-60010-B1iKDJ95,KZJ95,VZJ95199906-200209

MOON MIST,TRIM1#

sub62332-60010

main62332-60010-E0iVZJ95199906-200209

MD.OAK,TRIM4#

sub62332-60010

main62332-60010-E0iKDJ95,VZJ95200008-200108

MD.OAK,TRIM40,41

sub62332-60010

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60160iKZJ95,VZJ95199604-199704

sub67003-60161

main67003-60170iKZJ95,VZJ95199604-199901

W(FRONT FENDER MOULDING)

sub67003-60171

main67003-60171iKZJ95,VZJ95199901-200209

W(FRONT FENDER MOULDING)

main67003-60210iKZJ95,VZJ95199704-199901

sub67003-60211

main67003-60211iKDJ95,KZJ95,VZJ95199901-200209

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60160iKZJ95,VZJ95199604-199704

sub67004-60161

main67004-60170iKZJ95,VZJ95199604-199901

W(FRONT FENDER MOULDING)

sub67004-60171

main67004-60171iKDJ95,KZJ95,VZJ95199901-200209

W(FRONT FENDER MOULDING)

main67004-60210iKZJ95,VZJ95199704-199901

sub67004-60211

main67004-60211iKZJ95,VZJ95199901-200209

67113PANEL, REAR DOOR, OUTER RH

main67113-60140iKZJ95,VZJ95199604-200209

main67113-60150iKDJ95,KZJ95,VZJ95199604-200209

W(FRONT FENDER MOULDING)

67114PANEL, REAR DOOR, OUTER LH

main67114-60140iKDJ95,KZJ95,VZJ95199604-200209

main67114-60150iKDJ95,KZJ95,VZJ95199604-200209

W(FRONT FENDER MOULDING)

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60030iKZJ95,VZJ95199604-200209

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60030iKDJ95,KZJ95,VZJ95199604-200209

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60060iKZJ95,VZJ95199604-199906

main67841-60061iKDJ95,KZJ95,VZJ95199906-200209

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60010iKZJ95,VZJ95199604-199906

main67842-60011iKDJ95,KZJ95,VZJ95199906-200209

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iKZJ95,VZJ95199604-200209

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iKZJ95,VZJ95199604-200209

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60060iKZJ95,VZJ95199604-200209

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60060iKZJ95,VZJ95199604-200209

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60100iKDJ95,KZJ95,VZJ95199604-200209

*TT,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60100iKZJ95,VZJ95199604-200209

*TT,T=3.5,GREEN

68123GLASS, REAR DOOR WINDOW, RH

main68123-60110iKZJ95,VZJ95199604-200209

*TT,T=3.5,GREEN

68124GLASS, REAR DOOR WINDOW, LH

main68124-60110iKZJ95,VZJ95199604-200209

*TT,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-60030iKZJ95,VZJ95199604-199906

sub68142-60031

main68142-60031iKDJ95,KZJ95,VZJ95199906-200209

68152CRUN, REAR DOOR GLASS, LH

main68152-60020iKZJ95,VZJ95199604-199906

sub68152-60021

main68152-60021iKDJ95,KZJ95,VZJ95199906-200209

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60030iKZJ95,VZJ95199604-200209

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60030iKZJ95,VZJ95199604-200209

68630DCHECK ASSY, REAR DOOR, RH

main68630-60060iKDJ95,KZJ95,VZJ95199604-200209

68640ACHECK ASSY, REAR DOOR, LH

main68640-60040iKZJ95,VZJ95199604-200209

9010908295

main90109-08295

9011906769

main90119-06769

9017906159

main90179-06159

9033325001

main90333-25001

9033335004

main90333-35004

9046709177

main90467-09177

9095001882

main90950-01882

9351015010

main93510-15010

9354015010

main93540-15010

33 parts on this diagram · 3 diagrams in section
