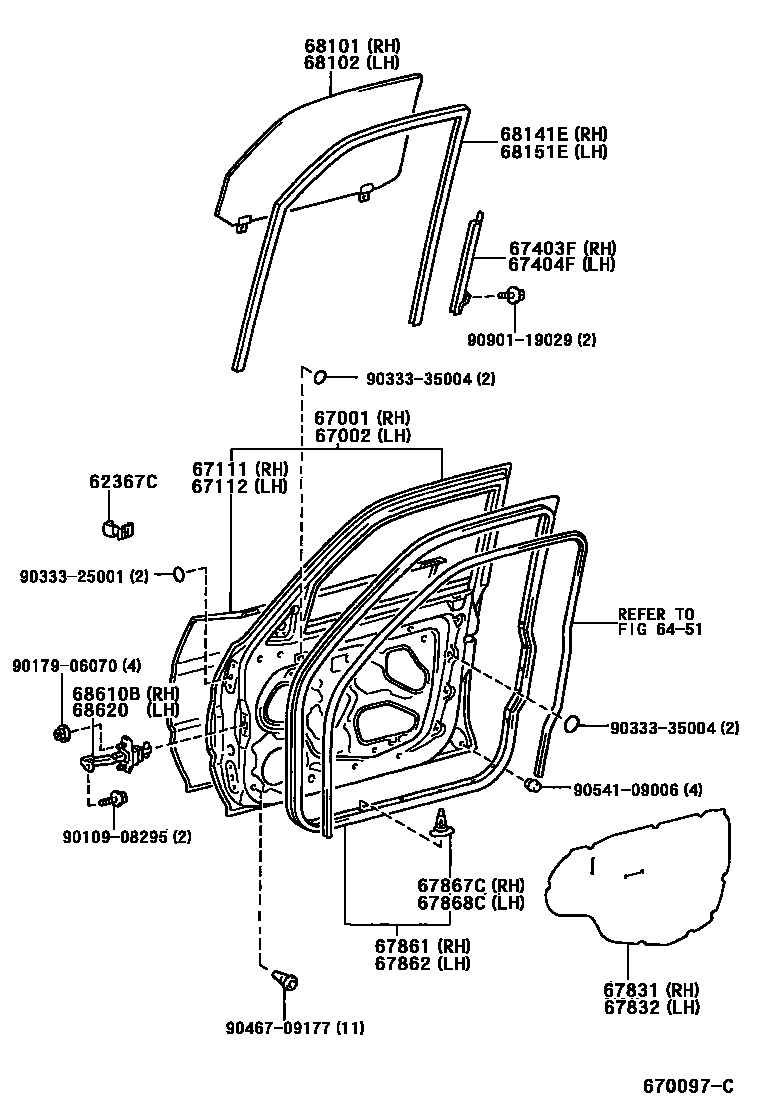

FRONT DOOR PANEL & GLASS
62367CCLIP, DOOR WINDOW GLASS
6451
67001PANEL SUB-ASSY, FRONT DOOR, RH
sub67001-60391
W(FRONT FENDER MOULDING)
sub67001-60431
sub67001-60432
67002PANEL SUB-ASSY, FRONT DOOR, LH
sub67002-60391
W(FRONT FENDER MOULDING)
sub67002-60431
sub67002-60432
67111PANEL, FRONT DOOR, OUTER RH
W(FRONT FENDER MOULDING)
67112PANEL, FRONT DOOR, OUTER LH
W(FRONT FENDER MOULDING)
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5,GREEN
*TT,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5,GREEN
*TT,T=4.0,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151ERUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
9010908295
main90109-08295
9017906070
main90179-06070
9033325001
main90333-25001
9033335004
main90333-35004
9046709177
main90467-09177
9054109006
main90541-09006
9090119029
main90901-19029
27 parts on this diagram · 4 diagrams in section
