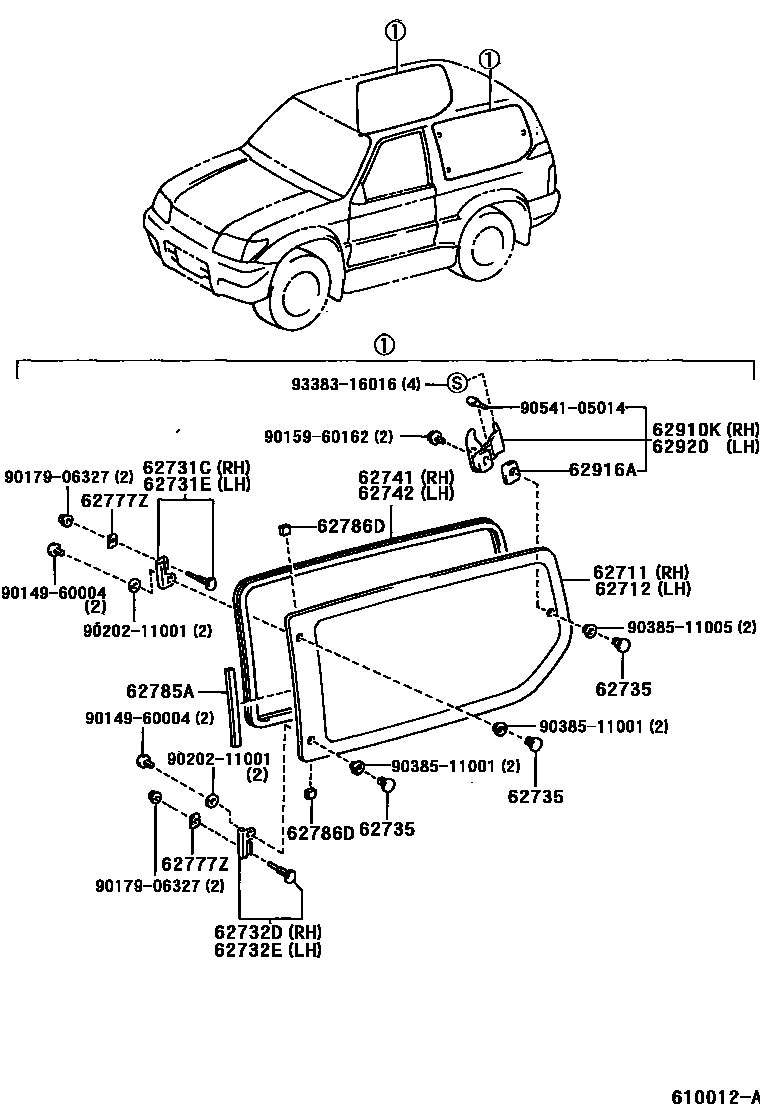

SIDE WINDOW
62711GLASS, QUARTER WINDOW, RH
*TEM,T=3.5,GREEN
*TEM,T=4.0,GREEN
62712GLASS, QUARTER WINDOW, LH
*TEM,T=4.0,GREEN
*TEM,T=3.5,GREEN
62731CHINGE, QUARTER WINDOW, RH
62731EHINGE, QUARTER WINDOW, LH
62732DHINGE, QUARTER WINDOW, NO.2, RH
62732EHINGE, QUARTER WINDOW, LH
62735RETAINER, QUARTER WINDOW HINGE
FRONT
REAR
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62777ZPLATE, QUARTER WINDOW RETAINER
62785ASPACER, QUARTER WINDOW GLASS
62786DSPACER, QUARTER WINDOW GLASS, NO.2
62910KLOCK ASSY, QUARTER WINDOW, RH
62916APAD, SIDE WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
9014960004
main90149-60004
9015960162
main90159-60162
9017906327
main90179-06327
9020211001
main90202-11001
9038511001
main90385-11001
9038511005
main90385-11005
9054105014
main90541-05014
9338316016
main93383-16016
23 parts on this diagram · 2 diagrams in section
