SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(PILLAR ANTENNA)
W(OVER FENDER)
W(OVER FENDER)
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(FRONT FENDER MOULDING)
W(CRUISE CONTROL);W(PILLAR ANTENNA)
W(OVER FENDER);W(CRUISE CONTROL);W(PILLAR ANTENNA)
W(PILLAR ANTENNA)
W(PILLAR ANTENNA)
W(OVER FENDER);W(PILLAR ANTENNA)
61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH
61036AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61181ABRACKET, INSTRUMENT SIDE, RH
61182CBRACKET, INSTRUMENT SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61231ARAIL, ROOF SIDE, INNER RH
W(MOON ROOF)
61232RAIL, ROOF SIDE, INNER LH
61232ARAIL, ROOF SIDE, INNER LH
W(MOON ROOF)
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
W(FRONT FENDER MOULDING)
61312BPILLAR, CENTER BODY, OUTER LH
W(FRONT FENDER MOULDING)
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
W(FRONT FENDER MOULDING)
61412PANEL, ROCKER, OUTER LH
W(FRONT FENDER MOULDING)
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
W(SEAT BELT FOR SECOND SEAT)
W(SEAT BELT FOR SECOND SEAT & THIRD SEAT)
W(SEAT BELT)
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
W(SEAT BELT FOR SECOND SEAT)
W(SEAT BELT FOR SECOND SEAT & THIRD SEAT)
W(SEAT BELT)
61611PANEL, QUARTER, RH
W(FRONT FENDER MOULDING)
W(FRONT FENDER MOULDING)
61612PANEL, QUARTER, LH
W(FRONT FENDER MOULDING)
W(FRONT FENDER MOULDING)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
W(SEAT BELT FOR SECOND SEAT)
W(REAR SEAT BELT)
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
W(SEAT BELT FOR SECOND SEAT)
W(SEAT BELT)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61681DPLATE, QUARTER PANEL, LOWER NO.1
61682CPLATE, QUARTER PANEL, LOWER NO.1 LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W(SEAT BELT FOR SECOND SEAT)
W(TONNEAU COVER)
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
W(SEAT BELT FOR SECOND SEAT)
W(TONNEAU COVER)
61729DPLATE, FUEL INLET BOX
61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH
61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH
61784PAD, REAR WHEEL OPENING EXTENSION, NO.2
SILVER ME.,K01 ,K10,RH
GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80,RH
SILVER ME.,K72 ,K73,RH
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8,RH
LT. GRAYISH BEIGE ME,K75 ,K78,RH
LT.GRAYISH BEIGE ME.,K75 ,K78,RH
DK. GREEN MC.,K79,RH
SILVER ME.,K01 ,K10,LH
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9,LH
SILVER ME.,K72 ,K73 ,K81,LH
GRAY ME.,K04 ,K74 ,K80 ,KC7 ,KC8,LH
LT. GRAYISH BEIGE ME,K75 ,K78,LH
LT.GRAYISH BEIGE ME.,K75 ,K78,LH
DK. GREEN MC.,K79,LH
61824CPAD, NOISE SHUTTER, NO.1
sub61824-12090
61825CPAD, NOISE SHUTTER, NO.2
CENTER
61826CPAD, NOISE SHUTTER, NO.3
75564ARETAINER, QUARTER GARNISH, LOWER RH
75565ARETAINER, QUARTER GARNISH, LOWER LH
75605CMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
SILVER ME.,K01 ,K10
GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80
SILVER ME.,K72 ,K73 ,K81
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9
LT. GRAYISH BEIGE ME,K75 ,K78
LT.GRAYISH BEIGE ME.,K75 ,K78
DK. GREEN MC.,K79
SILVER ME.,6P3 ,K01 ,K10
GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80
SILVER ME.,K72 ,K73 ,K81
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8
LT. GRAYISH BEIGE ME,K75 ,K78
LT.GRAYISH BEIGE ME.,K75 ,K78
DK. GREEN MC.,K79
75606CMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
SILVER ME.,K01 ,K10
GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14
SILVER ME.,K72 ,K73
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9
LT. GRAYISH BEIGE ME,K75 ,K78
LT.GRAYISH BEIGE ME.,K75 ,K78
DK. GREEN MC.,K79
SILVER ME.,6P3 ,K01 ,K10
GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14
SILVER ME.,K72 ,K73 ,K81
GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8
LT. GRAYISH BEIGE ME,K75
LT.GRAYISH BEIGE ME.,K75 ,K78
DK. GREEN MC.,K79
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
W(FRONT FENDER MOULDING)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
W(FRONT FENDER MOULDING)
6166712100REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH
main61667-12100
9011908373
main90119-08373
9015960478
main90159-60478
9017906060
main90179-06060
9017908102
main90179-08102
9018306025
main90183-06025
9018906018
main90189-06018
9018906028
main90189-06028
9018906029
main90189-06029
9018906145
main90189-06145
9026904047
main90269-04047
9033301011
main90333-01011
9046709190
main90467-09190
9046709191
main90467-09191
9046710187
main90467-10187
9095001336
main90950-01336
9095001398
main90950-01398
9095001444
main90950-01444
9095001599
main90950-01599
9095001872
main90950-01872
9095001896
main90950-01896
9095001904
main90950-01904
9095001911
main90950-01911
9095006051
main90950-06051
9095006060
main90950-06060
91621J0814
main91621-J0814
9164180612
main91641-80612
9164280612
main91642-80612
91651B0820
main91651-B0820

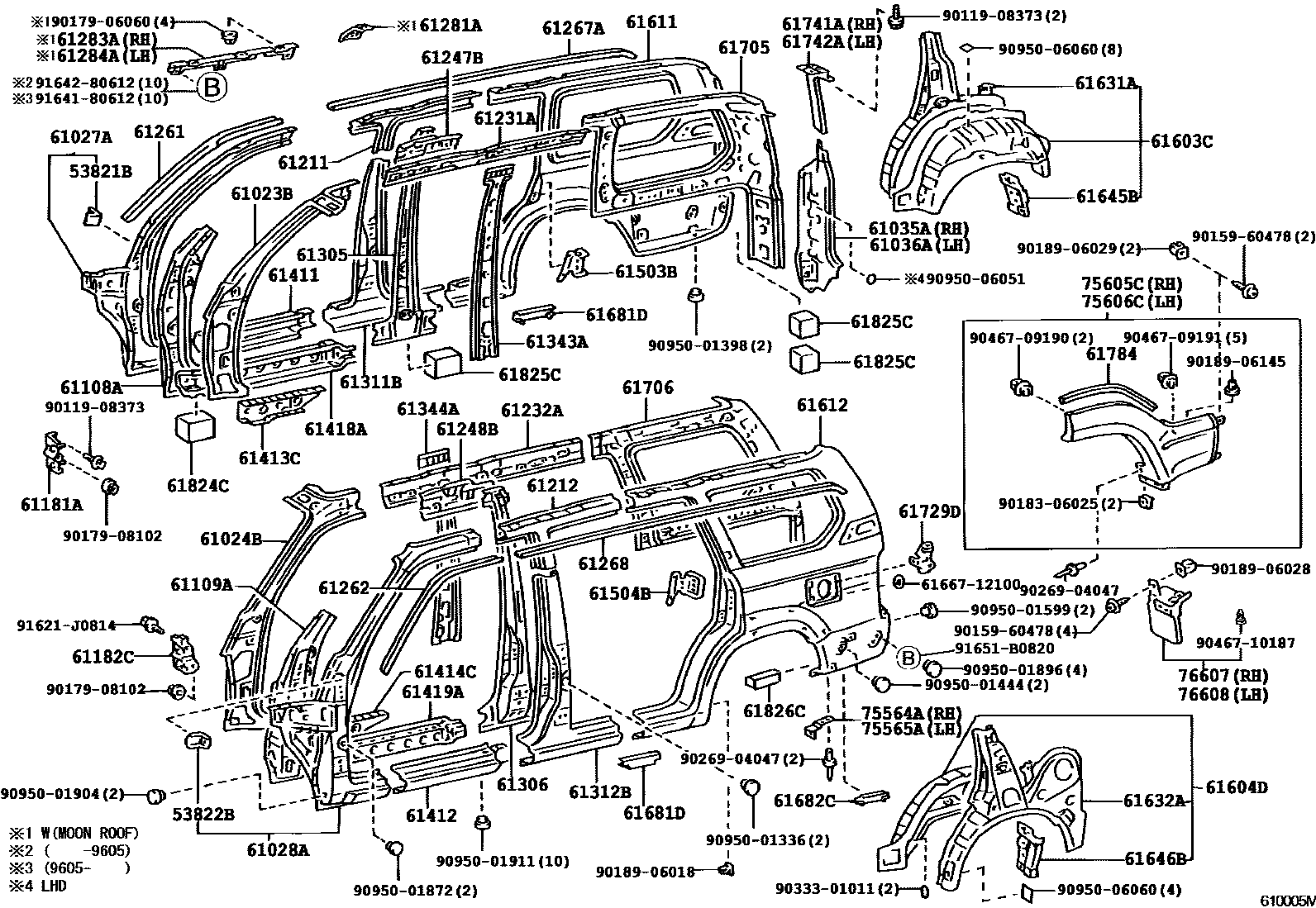

95 parts on this diagram · 2 diagrams in section
