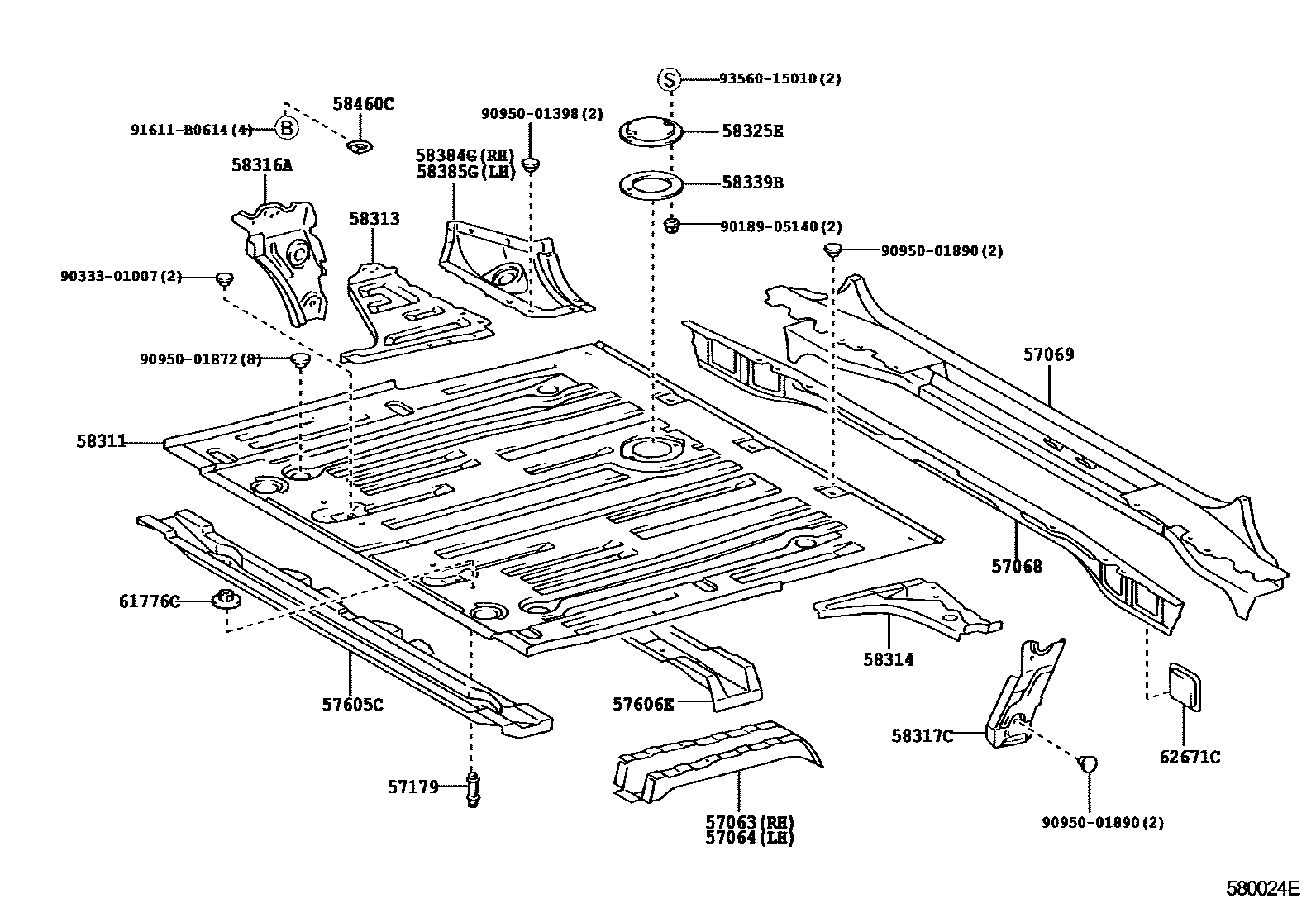

REAR FLOOR PANEL & REAR FLOOR MEMBER
57063BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH
W(BENCH SEAT)
57064BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH
W(BENCH SEAT)
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57179BOLT, FLOOR CROSSMEMBER
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
W(OPPOSING TYPE SEAT)
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
W(DUAL AIR CONDITIONER)
58311PAN, REAR FLOOR
W(TRANSVERSE THIRD SEAT)
W(OPPOSING TYPE SEAT)
58313PANEL, REAR FLOOR SIDE, RH
W(OPPOSING TYPE SEAT)
W(DUAL AIR CONDITIONER)
58314PANEL, REAR FLOOR SIDE, LH
W(OPPOSING TYPE SEAT)
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58339BPACKING, REAR FLOOR SERVICE HOLE
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
61776CNUT, W/PLATE
62671CCOVER, LOWER BACK PANEL
9018905140
9033301007
9095001398
9095001872
9095001890
91611B0614
9356015010
26 parts on this diagram · 2 diagrams in section
