FRONT FENDER APRON & DASH PANEL

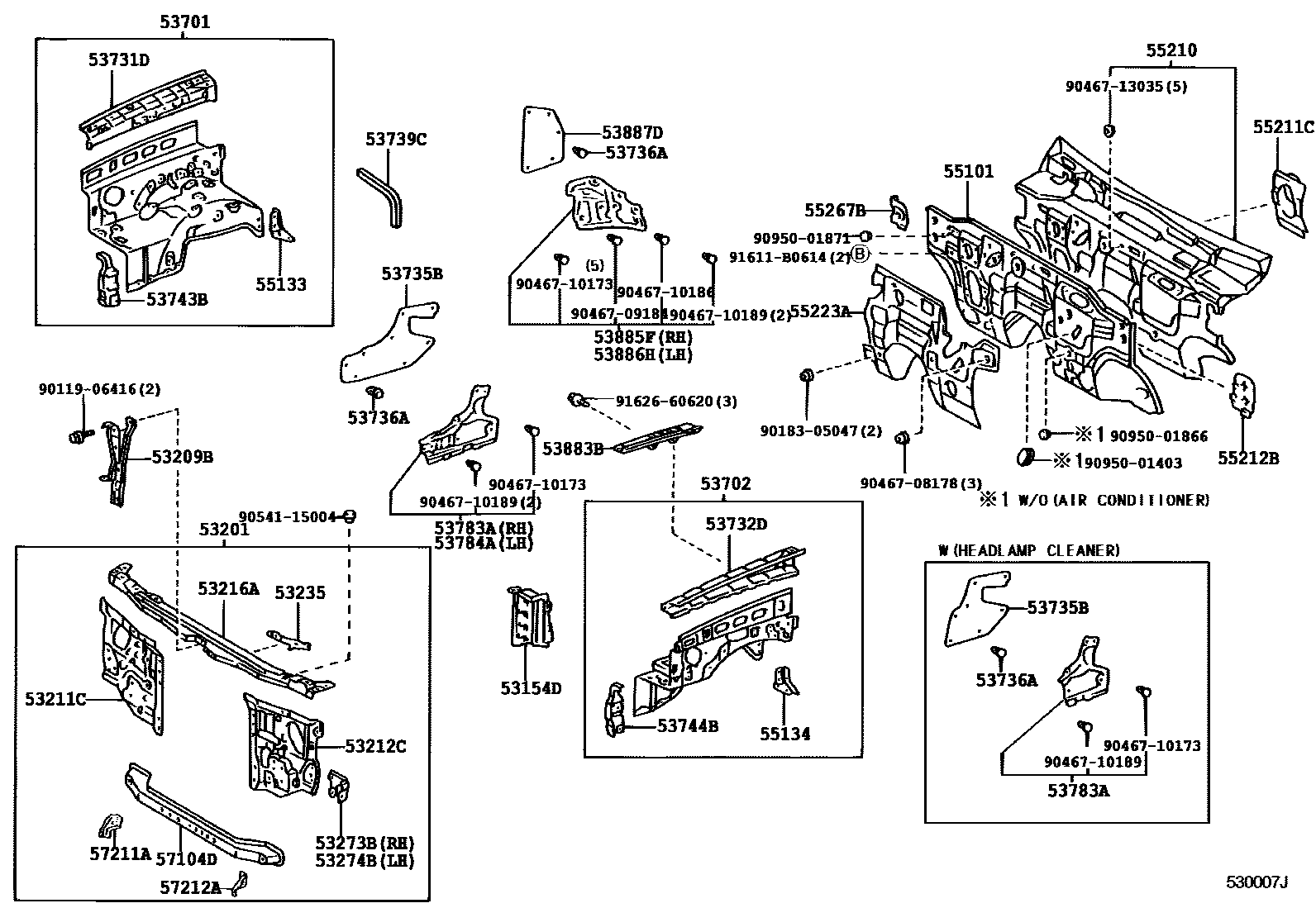

Parts diagram
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
main53154-60020i199604-200209
53201SUPPORT SUB-ASSY, RADIATOR
main53201-60060i199604-199811
main53201-60080i199811-200209
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-60040i199604-200209
53211CSUPPORT, RADIATOR, RH
main53211-60900i199604-199811
main53211-60901i199811-200209
53212CSUPPORT, RADIATOR, LH
main53212-60900i199604-199811
main53212-60901i199811-200209
53216ASUPPORT, RADIATOR, UPPER
main53216-60050i199604-200209
53235BRACKET, HORN MOUNTING
main53235-60010i199604-200209
53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH
main53273-60010i199604-200209
53274BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
main53274-60010i199604-200209
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-60550i199604-199801
W(ABS)
sub53701-60551
sub88467-30270
sub88469-28010
sub88688-60620
sub88716-6A880
sub90099-32130
sub90179-06115
sub93315-14008
sub93319-14010
main53701-60551i199801-199901
W(ABS)
sub53701-60552
main53701-60552i199901-200209
W(ABS)
main53701-60560i199604-199801
sub53701-60571
sub88467-30270
sub88469-28010
sub88688-60630
sub88716-6A761
sub88716-6A890
sub88718-60850
sub90099-32130
sub90179-06115
sub93319-14010
main53701-60570i199604-199801
W(BATTERY SUPPORT BRACKET)
sub53701-60571
sub88467-30270
sub88469-28010
sub88688-60630
sub88716-6A761
sub88716-6A890
sub88718-60850
sub90099-32130
sub90179-06115
sub93319-14010
main53701-60571i199801-199901
sub53701-60572
main53701-60572i199901-200209
sub53701-60622
main53701-60590i199604-199801
W(ABS)
sub53701-60591
sub88467-30270
sub88469-28010
sub88688-60630
sub88716-6A721
sub88716-6A761
sub88718-60850
sub90099-32130
sub90179-06115
sub93319-14010
main53701-60591i199801-199901
W(ABS)
sub53701-60592
main53701-60592i199901-200209
W(ABS)
main53701-60610i199604-199801
sub53701-60611
sub88467-30270
sub88469-28010
sub88688-60620
sub88688-60630
sub88716-6A721
sub88716-6A761
sub88716-6A880
sub88718-60850
sub90099-32130
sub90179-06115
sub93315-14008
sub93319-14010
main53701-60611i199801-199901
sub53701-60612
main53701-60612i199901-200209
main53701-60660i199604-199801
sub53701-60661
sub88467-30270
sub88469-28010
sub88688-60620
sub88716-6A751
sub90099-32130
sub90179-06115
sub93315-14008
sub93319-14010
main53701-60661i199801-199901
sub53701-60662
main53701-60662i199901-200209
main53701-60670i199604-199801
W(ABS)
sub53701-60681
sub88467-30270
sub88469-28010
sub88688-60630
sub88716-6A761
sub88716-6A890
sub88718-60850
sub90099-32130
sub90179-06115
sub93319-14010
main53701-60680i199604-199801
W(ABS & BATTERY SUPPORT BRACKET)
sub53701-60681
sub88467-30270
sub88469-28010
sub88688-60630
sub88716-6A761
sub88716-6A890
sub88718-60850
sub90099-32130
sub90179-06115
sub93319-14010
main53701-60681i199801-199901
W(ABS & BATTERY SUPPORT BRACKET)
sub53701-60682
main53701-60682i199901-200209
W(ABS & BATTERY SUPPORT BRACKET)
main53701-60700i199604-199801
W(ABS & BATTERY SUPPORT BRACKET)
sub53701-60701
sub88467-30270
sub88469-28010
sub88688-60620
sub88716-6A751
sub90099-32130
sub90179-06115
sub93315-14008
sub93319-14010
main53701-60701i199801-199901
W(ABS & BATTERY SUPPORT BRACKET)
sub53701-60702
main53701-60702i199901-200209
W(ABS & BATTERY SUPPORT BRACKET)
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-6A031i199604-199801
sub53702-6A032
main53702-6A032i199801-200001
sub53702-6A033
main53702-6A033i200001-200209
main53702-6A070i199604-199608
W(BATTERY CARRIER)
sub53702-6A071
sub90174-06020
main53702-6A071i199608-199801
W(BATTERY CARRIER)
sub53702-6A072
main53702-6A072i199801-200001
sub53702-6A073
main53702-6A073i200001-200209
main53702-6A080i199604-199608
sub53702-6A081
sub90174-06020
main53702-6A081i199608-199801
sub53702-6A082
main53702-6A111i199604-199801
sub53702-6A112
main53702-6A112i199801-200001
sub53702-6A113
main53702-6A113i200001-200209
sub53702-6A400
main53702-6A390i200008-200209
main53702-6A400i200008-200209
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-60040i199604-200209
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-60030i199604-200209
53735BSEAL, FRONT FENDER APRON, UPPER
main53735-35020i199604-200209
W(HEADLAMP CLEANER),RH
main53735-35030i199604-200209
W(HEADLAMP CLEANER),LH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-10186i199604-200209
W(HEADLAMP CLEANER)
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
main53739-35010i199706-199807
sub53739-35011
main53739-35011i199807-200209
main53739-60020i199604-199706
sub53739-35010
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-60040i199604-200209
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
main53744-60040i199604-200209
53783AINSULATOR, APRON FRONT FENDER, RH
main53783-35010i199604-200004
sub53783-35011
main53783-35011i200004-200209
main53783-35020i199604-200004
W(HEADLAMP CLEANER)
sub53783-35021
main53783-35021i200004-200209
W(HEADLAMP CLEANER)
main53783-60030i199604-199608
sub53783-35010
main53783-60040i199604-199608
W(HEADLAMP CLEANER)
sub53783-35020
53784AINSULATOR, APRON FRONT FENDER, LH
main53784-35010i199604-200004
sub53784-35011
main53784-35011i200004-200209
main53784-60030i199604-199608
sub53784-35010
53883BSEAL, FRONT FENDER, LH
main53883-60030i199604-200209
53885FSHIELD, FRONT FENDER SPLASH, REAR RH
main53885-60010i199604-199807
sub53885-60011
main53885-60011i199807-200004
sub53885-60012
main53885-60012i200004-200209
main53885-60020i199604-199608
53886HSHIELD, FRONT FENDER SPLASH, REAR LH
main53886-60010i199604-199807
sub53886-60011
main53886-60011i199807-199906
sub53886-60012
main53886-60012i199906-200004
sub53886-60013
main53886-60013i200004-200209
main53886-60020i199604-199608
53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1
main53887-35010i199604-200209
55101PANEL SUB-ASSY, DASH
main55101-6C780i199604-200001
sub55101-6C781
sub87128-60090
main55101-6C781i200001-200209
main55101-6C800i199604-200001
sub55101-6C801
sub87128-60090
main55101-6C801i200001-200209
sub55101-6D840
main55101-6C820i199604-200001
W(ABS)
sub55101-6C821
sub87128-60090
main55101-6C821i200001-200209
W(ABS)
main55101-6C840i199604-200001
W(ABS)
sub55101-6C841
sub87128-60090
main55101-6C841i200001-200209
W(ABS)
main55101-6C860i199604-200008
main55101-6C890i199604-200209
main55101-6D010i200008-200209
main55101-6D020i200008-200209
main55101-6D550i200008-200209
W(VSC & ACTIVE TRC)
main55101-6D840i200008-200209
W(ABS & VSC & ACTIVE TRC)
55133PLATE, FRONT FENDER APRON SET, LOWER RH
main55133-35010i199604-200209
55134PLATE, FRONT FENDER APRON SET, LOWER LH
main55134-35010i199604-200209
55210INSULATOR ASSY, DASH PANEL
main55210-60050i199604-199901
main55210-60051i199901-200209
main55210-60060i199604-200209
55211CCOVER, DASH PANEL INSULATOR
main55211-35010i199604-199605
sub55211-35011
main55211-35011i199605-200209
main55211-35020i199604-199902
sub55211-35021
main55211-35021i199902-200209
55212BCOVER, DASH PANEL INSULATOR, NO.2
main55212-35010i199604-199807
sub55212-35020
main55212-35020i199807-200209
55223AINSULATOR, DASH PANEL, OUTER
main55223-35010i199604-199807
sub55223-35011
main55223-35011i199807-200004
sub55223-35012
main55223-35012i200004-200209
main55223-60180i199604-199807
sub55223-60181
main55223-60181i199807-200004
sub55223-60182
main55223-60182i200004-200209
main55223-60190i199604-199608
main55223-60200i199604-199608
55267BCOVER, DASH PANEL INSULATOR, NO.3
main55267-35010i199604-200209
57104DMEMBER SUB-ASSY, FRONT CROSS
main57104-60030i199604-200209
57211ABRACKET, BODY MOUNTING, NO.1 RH
main57211-35010i199604-200209
57212ABRACKET, BODY MOUNTING, NO.1 LH
main57212-35030i199604-200209
9011906416
main90119-06416
9018305047
main90183-05047
9046708178
main90467-08178
9046709184
main90467-09184
9046710173
main90467-10173
9046710186
main90467-10186
9046710189
main90467-10189
9046713035
main90467-13035
9054115004
main90541-15004
9095001403
main90950-01403
9095001866
main90950-01866
9095001871
main90950-01871
91611B0614
main91611-B0614
9162660620
main91626-60620

49 parts on this diagram · 2 diagrams in section
