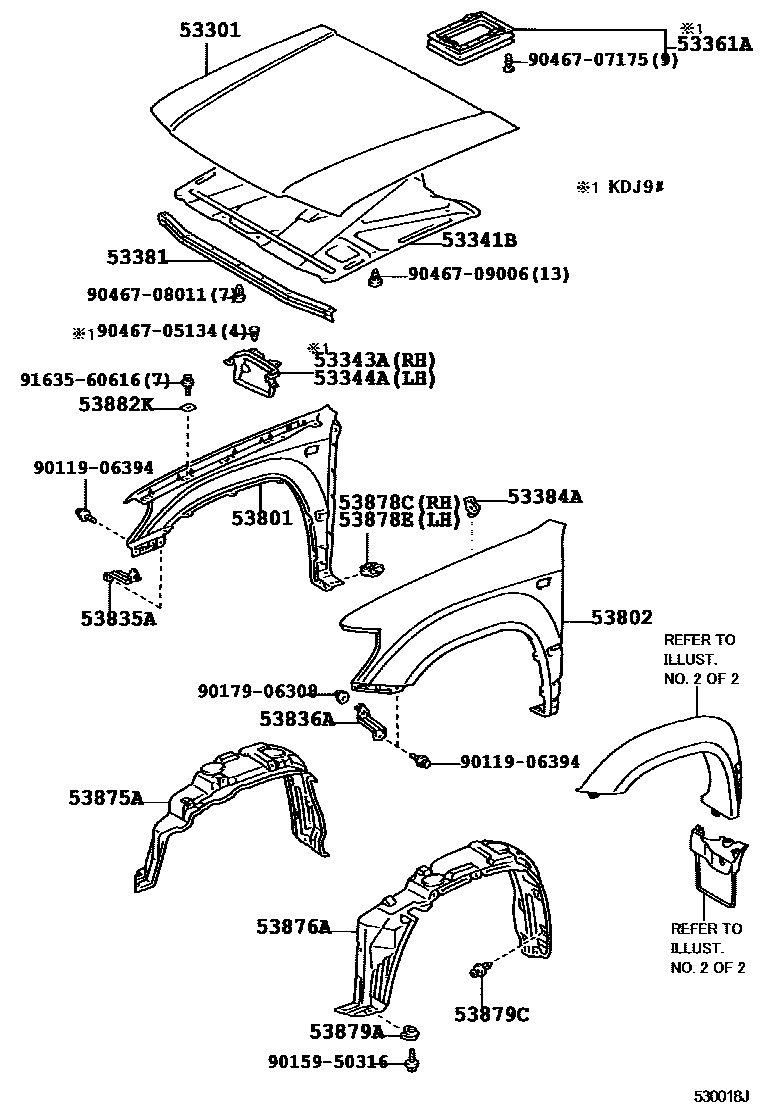

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-60290iKZJ9#,VZJ9#199604-200209

main53301-60300iKDJ9#200008-200209

53341BINSULATOR, HOOD

main53341-60161iKDJ9#200008-200209

main53341-60170iKZJ9#,VZJ9#199604-200004

sub53341-60171

main53341-60171iKZJ9#,VZJ9#200004-200209

53343ABRACKET, AIR DEFLECTOR, NO.1 RH

main53343-60010iKDJ9#200008-200209

53344ABRACKET, AIR DEFLECTOR, NO.1 LH

main53344-60010iKDJ9#200008-200209

53361AWEATHERSTRIP, HOOD

main53361-60020iKDJ9#200008-200209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60030iKZJ9#,VZJ9#199604-200209

53384ABUMPER, FENDER TO HOOD

main53384-60040iKZJ9#,VZJ9#199604-200209

53801FENDER SUB-ASSY, FRONT RH

main53801-60570iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

W(ANTENNA)

main53801-60580iKZJ9#,VZJ95..RHD199604-200209

W(ANTENNA & FRONT FENDER MOULDING)

main53801-60800iKZJ9#,VZJ9#..LHD199604-200209

main53801-60810iKZJ9#,VZJ9#..LHD199604-200209

W(FRONT FENDER MOULDING)

53802FENDER SUB-ASSY, FRONT LH

main53802-60890iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

main53802-6A010iKZJ9#,VZJ95..RHD199604-200209

W(FRONT FENDER MOULDING)

main53802-6A020iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

W(ANTENNA)

main53802-6A030iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

W(ANTENNA & FRONT FENDER MOULDING)

main53802-6A040iVZJ95..RHD199906-200108

HONG KONG SPEC & W(ANTENNA)

main53802-6A050iVZJ95..RHD199906-200108

HONG KONG SPEC & W(ANTENNA & FRONT FENDER MOULDING)

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-60030iKZJ9#,VZJ9#199604-200209

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-60030iKZJ9#,VZJ9#199604-200209

53875ALINER, FRONT FENDER, RH

main53875-60010iKZJ9#,VZJ9#199604-199612

sub53875-60011

main53875-60011iKZJ9#,VZJ9#199612-199906

main53875-60012iKDJ9#,KZJ9#,VZJ9#199906-200209

53876ALINER, FRONT FENDER, LH

main53876-60010iKZJ9#,VZJ9#199604-199612

sub53876-60011

main53876-60011iKZJ9#,VZJ9#199612-199906

main53876-60012iKDJ9#,KZJ9#,VZJ9#199906-200209

53878CSPACER, FRONT FENDER

main53878-35020iKZJ9#,VZJ9#199604-200209

53878ESPACER, FRONT FENDER

main53878-35020iKZJ9#,VZJ9#199604-200209

53879ARETAINER, FRONT FENDER LINER

main53879-16010iKZJ9#,VZJ9#199604-200209

53879CRETAINER, FRONT FENDER LINER

main53879-60010iKDJ9#,KZJ9#,VZJ9#199604-200209

53882KSEAL, FRONT FENDER

main53882-16030iKZJ9#,VZJ9#199604-199906

9011906394

main90119-06394

9015950316

main90159-50316

9017906308

main90179-06308

9046705134

main90467-05134

9046707175

main90467-07175

9046708011

main90467-08011

9046709006

main90467-09006

9163560616

main91635-60616

26 parts on this diagram · 2 diagrams in section
