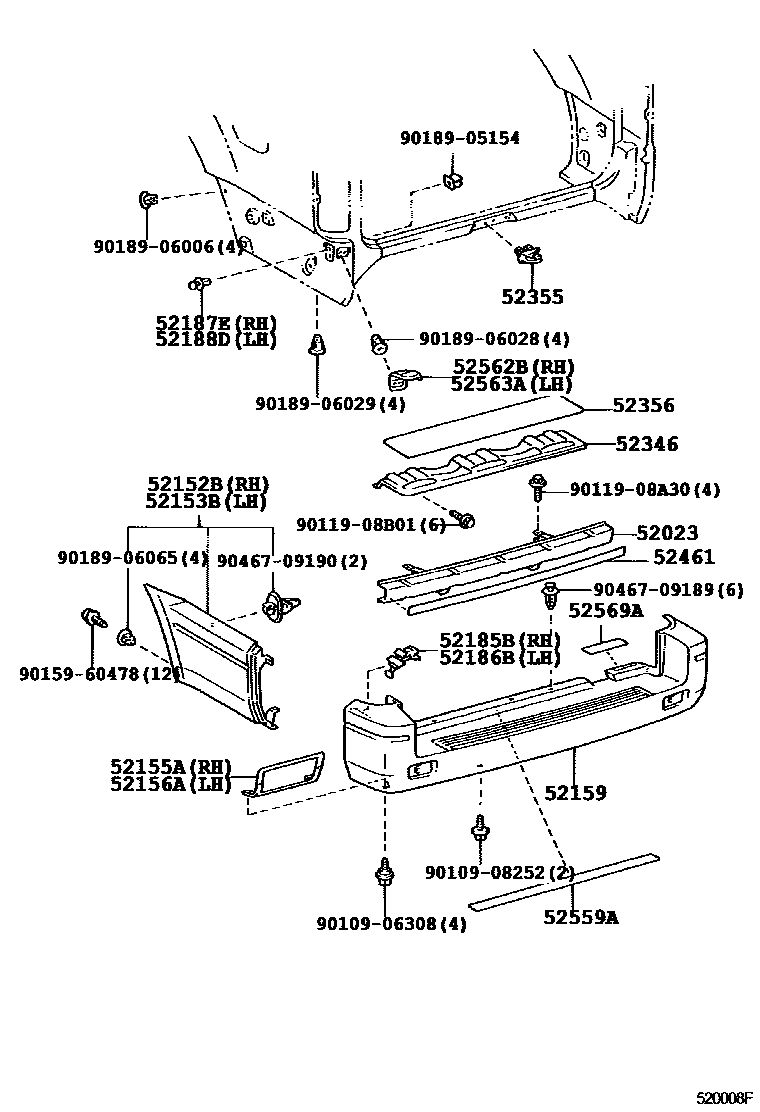

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-60030iKZJ90¥14,100200008-200009

sub52023-60050¥12,700

sub52461-60030¥680

main52023-60040iKZJ95..LHD..ATM¥15,800199801-200009

HONG KONG OR THAILAND SPEC

sub52023-60060¥14,200

sub52461-60030¥680

main52023-60040iKZJ95..LHD..MTM¥15,800200008-200009

sub52023-60060¥14,200

sub52461-60030¥680

main52023-60050iKZJ90,VZJ90¥12,700199604-200209

REAR COMBINATION LAMP;BUMPER

main52023-60050iKZJ90¥12,700200008-200209

main52023-60060iKZJ95..LHD;VZJ95..RHD¥14,200199604-200209

REAR COMBINATION LAMP;BUMPER

main52023-60060iKZJ95..LHD;VZJ95..RHD¥14,200200009-200209

52152BEXTENSION, REAR BUMPER, RH

main52152-60250iKZJ95,VZJ95¥8,300199604-200209

sub52152-60902¥8,300

main52152-60260iKZJ90,VZJ90¥7,200199604-200209

sub52152-60903¥7,200

52153BEXTENSION, REAR BUMPER, LH

main52153-60240iKZJ95,VZJ95¥8,300199604-200209

sub52153-60902¥8,300

main52153-60250iKDJ90,KZJ90,VZJ90¥7,200199604-200209

sub52153-60903¥7,200

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60020iKDJ9#,KZJ9#,VZJ9#¥2,780199604-200209

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60020iKZJ9#,VZJ9#¥2,780199604-200209

52159COVER, REAR BUMPER

main52159-60070iKZJ95..LHD..ATM¥25,800199801-200209

HONG KONG OR THAILAND SPEC

sub52159-6A918¥25,800

main52159-60070iKZJ9#..LHD..MTM¥25,800200008-200209

sub52159-6A918¥25,800

main52159-60080iKDJ9#¥25,700200008-200209

sub52159-6A919¥25,700

main52159-60080iKZJ9#,VZJ9#¥25,700199604-200209

W(REAR COMBINATION LAMP)

sub52159-6A919¥25,700

main52159-60090-B0iVZJ95..RHD;KZJ95..LHD..ATM199906-199911

GRAY ME.,KC7 ,KC8 ,KC9 ,K04 ,K08 ,K74 ,K80

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B0iVZJ95..RHD;KZJ95..LHD..ATM199906-199911

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B0iVZJ95..RHD199801-199906

GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B1iKZJ9#..LHD..MTM199906-200209

SILVER ME.,K72 ,K73

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B1iVZJ95..RHD199801-199906

SILVER ME.,K72 ,K73 ,K81

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B2iKZJ9#..LHD;VZJ95..RHD200008-200112

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B2iVZJ95..RHD;KZJ95..LHD..ATM199911-200008

GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-B2iKZJ9#..LHD;VZJ95..RHD200112-200209

GRAY ME.,K04 ,K74 ,K80 ,KC7 ,KC8

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-E0iVZJ95..RHD199808-199911

LT. GRAYISH BEIGE ME,K75 ,K78

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-E0iVZJ95..RHD199801-199808

LT. GRAYISH BEIGE ME,K75

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-E1iKZJ9#..LHD..MTM199911-200209

LT.GRAYISH BEIGE ME.,K75 ,K78

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60090-G0iVZJ95..RHD199801-200209

DK. GREEN MC.,K79

sub52159-60070¥25,800

sub52159-60090¥42,500

sub52159-6A918¥25,800

main52159-60100-A0iKZJ9#,VZJ9#199604-199801

W(REAR COMBINATION LAMP),SILVER ME.,K01 ,K10

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B0iKZJ9#,VZJ9#199906-199911

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B0iKZJ9#,VZJ9#199801-199906

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B0iKZJ9#,VZJ9#199604-199801

W(REAR COMBINATION LAMP),GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B1iKZJ9#,VZJ9#199906-200209

W(REAR COMBINATION LAMP),SILVER ME.,K72 ,K73

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B1iKZJ9#,VZJ9#199801-199906

W(REAR COMBINATION LAMP),SILVER ME.,K72 ,K73 ,K81

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B1iKDJ9#200008-200209

SILVER ME.,K72 ,K73

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B2iKDJ9#,KZJ9#,VZJ9#200112-200209

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K74 ,K80 ,KC7 ,KC8

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B2iKZJ9#,VZJ9#199911-200008

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-B2iKDJ9#,KZJ9#,VZJ9#200008-200112

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-E0iKZJ9#,VZJ9#199808-199911

W(REAR COMBINATION LAMP),LT. GRAYISH BEIGE ME,K75 ,K78

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-E0iKZJ9#,VZJ9#199801-199808

W(REAR COMBINATION LAMP),LT. GRAYISH BEIGE ME,K75

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-E1iKDJ9#,KZJ9#,VZJ9#199911-200209

W(REAR COMBINATION LAMP),LT.GRAYISH BEIGE ME.,K75 ,K78

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-G0iKDJ9#200008-200209

DK. GREEN MC.,K79

sub52159-60080¥25,700

sub52159-60100¥42,500

main52159-60100-G0iKZJ9#,VZJ9#199801-200209

W(REAR COMBINATION LAMP),DK. GREEN MC.,K79

sub52159-60080¥25,700

sub52159-60100¥42,500

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60070iKZJ9#,VZJ9#¥770199604-200209

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-60020iKZJ9#,VZJ9#¥770199604-200209

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-60020iKZJ9#,VZJ9#¥390199604-200209

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-60020iKZJ9#,VZJ9#¥390199604-200209

52346FRAME, BACK STEP, REAR

main52346-60010iKZJ9#,VZJ9#¥9,400199604-200209

52355BRACKET, REAR BUMPER STEP

main52355-60040iKZJ9#,VZJ9#¥670199604-200209

52356CUSHION, REAR BUMPER STEP

main52356-60040iKZJ9#,VZJ9#¥430199604-200209

52461PAD, REAR BUMPER, CENTER

main52461-60020iVZJ95..RHD;KZJ95..LHD..ATM¥810199801-200009

L=1120

main52461-60030iKZJ9#,VZJ9#¥680199604-200209

L=820

main52461-60030iKZJ9#..LHD;VZJ95..RHD¥680200009-200209

52559APAD, REAR BUMPER FILLER, LH

main52559-60010iKZJ9#,VZJ9#¥700199604-200209

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-60010iKZJ9#,VZJ9#¥620199604-200209

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-60010iKZJ9#,VZJ9#¥620199604-200209

52569APAD, REAR BUMPER FILLER, RH

main52569-60020iVZJ95..RHD;KZJ95..LHD..ATM;KDJ90,KZJ90,VZJ90¥260199604-200209

9010906308

main90109-06308¥130

9010908252

main90109-08252¥90

9011908A30

main90119-08A30¥130

9011908B01

main90119-08B01¥130

9015960478

main90159-60478¥70

9018905154

main90189-05154¥130

9018906006

main90189-06006¥100

9018906028

main90189-06028¥110

9018906029

main90189-06029¥100

9018906065

main90189-06065¥80

9046709189

main90467-09189¥440

9046709190

main90467-09190¥120

30 parts on this diagram · 1 diagram in section
