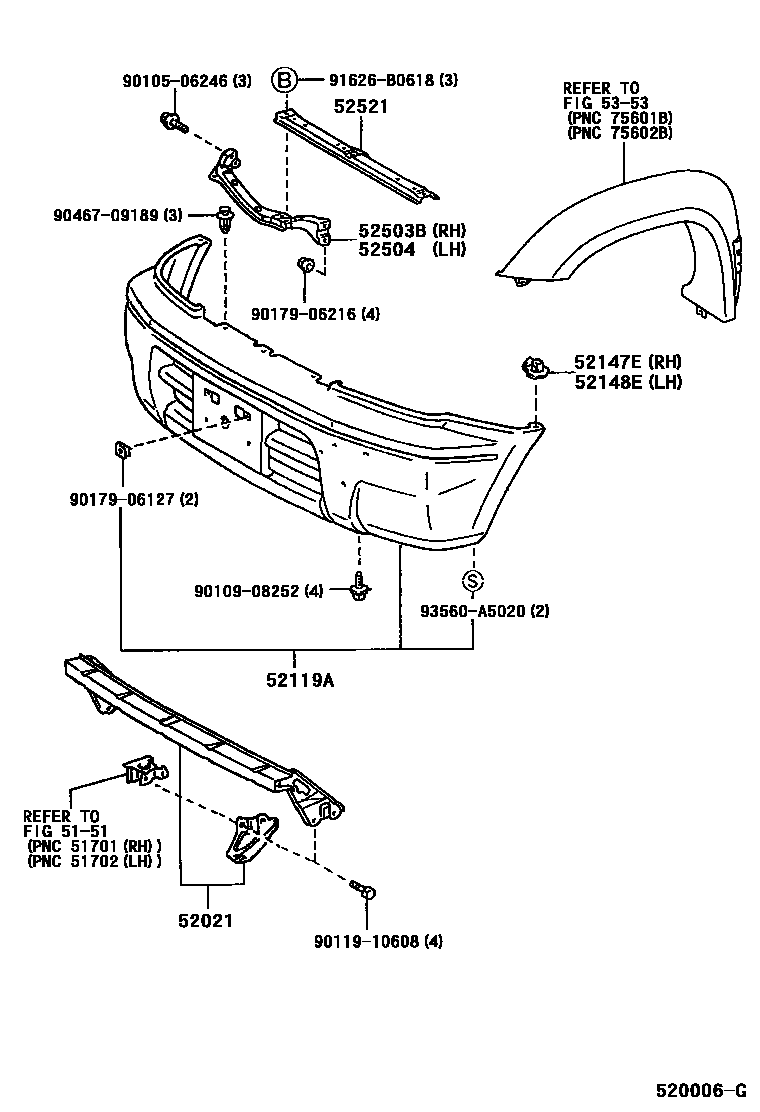

FRONT BUMPER & BUMPER STAY

5151

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60010iKDJ9#,KZJ9#,VZJ9#199906-200209

52119ACOVER, FRONT BUMPER

main52104-60900iVZJ95..RHD199906-200209

W(OVER FENDER)

sub52104-60919

main52104-60902iKZJ90200008-200209

W(OVER FENDER & FRONT FOGLAMP)

sub52104-60914

main52104-60903iKDJ95,KZJ9#,VZJ95199906-200209

W(OVER FENDER & FRONT FOGLAMP & HEADLAMP CLEANER)

sub52104-60921

main52119-60010iKZJ9#,VZJ9#199604-199906

sub52119-6A991

main52119-60020iKZJ9#,VZJ9#199604-199906

W(HEADLAMP CLEANER)

sub52119-6A992

main52119-60350iKDJ9#,KZJ9#,VZJ9#199906-200209

sub52119-6B910

main52119-60380iKDJ9#;VZJ95..RHD199906-200209

W(FOG LAMP)

sub52119-6B912

main52119-60400iKDJ9#,KZJ9#,VZJ9#199906-200209

W(FRONT FOG LAMP & HEADLAMP CLEANER)

sub52119-6B913

main52119-60900iVZJ95..RHD199801-199906

W(FRONT FENDER MOULDING)

sub52119-6A987

main52119-60901iKZJ9#,VZJ9#199604-199906

W(FRONT FENDER MOULDING & HEADLAMP CLEANER)

sub52119-6A988

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iKZJ9#,VZJ9#199604-199906

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iKZJ9#,VZJ9#199604-199906

52503BRETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH

main52503-60020iKZJ9#,VZJ9#199604-199906

main52503-60030iKDJ9#,KZJ9#,VZJ9#199906-200209

52504RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 LH

main52504-60010iKZJ9#,VZJ9#199604-199906

main52504-60020iKDJ9#,KZJ9#,VZJ9#199906-200209

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60020iKZJ9#,VZJ9#199604-199906

main52521-60040iKDJ9#,KZJ9#,VZJ9#199906-200209

5353

9010506246

main90105-06246

9010908252

main90109-08252

9011910608

main90119-10608

9017906127

main90179-06127

9017906216

main90179-06216

9046709189

main90467-09189

91626B0618

main91626-B0618

93560A5020

main93560-A5020

17 parts on this diagram · 1 diagram in section
