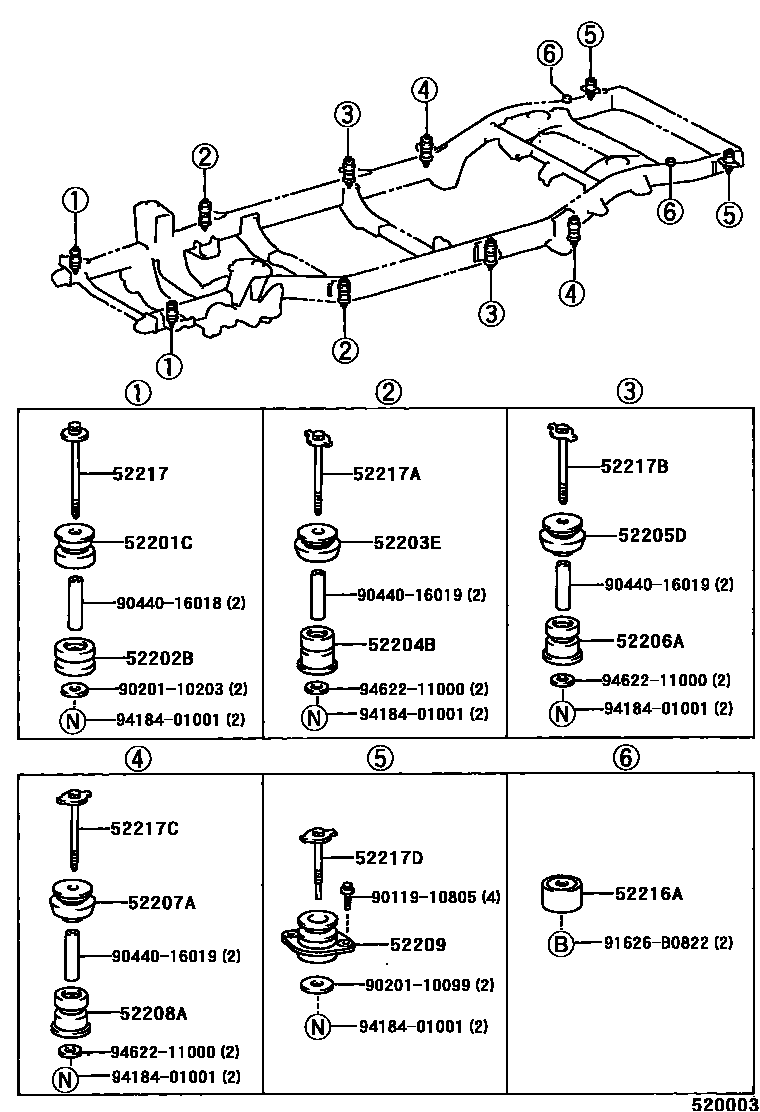

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35090×2iKZJ90..RHD;KZJ90..ATM199906-200008

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35080×2iKZJ9#,VZJ9#199604-199906

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35200×2iKZJ9#,VZJ9#199604-199906

main52203-35250×2iKZJ90..RHD;KZJ90..ATM199906-200008

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35110×2iKZJ9#,VZJ9#199604-199906

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52207-60060×2iKZJ95,VZJ95199604-199906

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52208-60030×2iKZJ95,VZJ95199604-199708

main52208-60031×2iKZJ95,VZJ95199708-199906

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60060×2iKZJ9#,VZJ9#199604-199906

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-60030×2iKZJ9#,VZJ9#199604-199708

main52208-60031×2iKZJ9#,VZJ9#199708-199906

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52209-35010×2iKZJ9#,VZJ9#199604-199906

main52209-35011×2iKZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#199906-200209

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-60010×2iKZJ9#,VZJ9#199604-199906

52217BOLT, BODY MOUNTING

main52217-35040×2iKZJ9#,VZJ9#199604-199906

52217ABOLT, BODY MOUNTING

main52217-35050×2iKZJ9#,VZJ9#199604-199704

main52217-35100×2iKZJ9#,VZJ9#199704-199906

main52217-35110×2iKZJ90..RHD;KZJ90..ATM199906-200008

52217BBOLT, BODY MOUNTING

main52217-35050×2iKZJ95,VZJ95199604-199611

main52217-35100×2iKZJ95,VZJ95199611-199906

52217CBOLT, BODY MOUNTING

main52217-35050×2iKZJ9#,VZJ9#199604-199704

main52217-35100×2iKZJ9#,VZJ9#199704-199906

52217DBOLT, BODY MOUNTING

main52217-35030iKDJ9#200008-200209

TYPE A:REFER TO ILLUSTRATION

main52217-35130iKZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#200002-200209

TYPE B:REFER TO ILLUSTRATION

9011910805

main90119-10805

9020110099

main90201-10099

9020110203

main90201-10203

9044016018

main90440-16018

9044016019

main90440-16019

91626B0822

main91626-B0822

9418401001

main94184-01001

9462211000

main94622-11000

23 parts on this diagram · 2 diagrams in section
