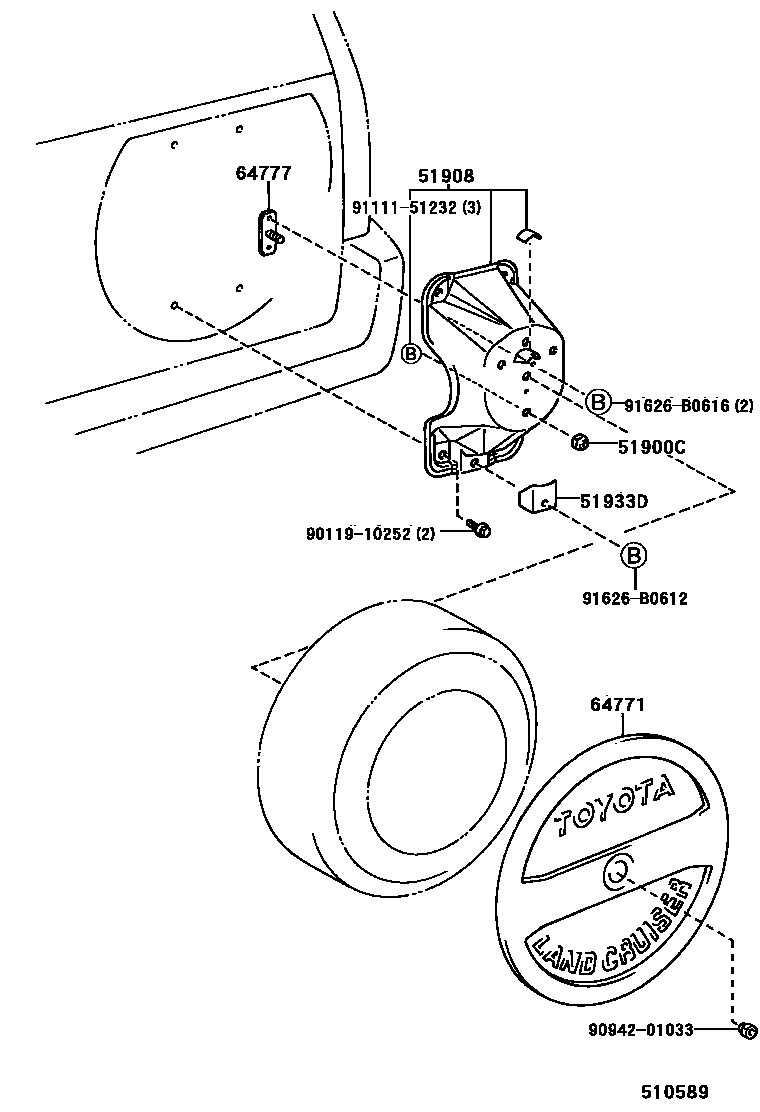

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-01075iKZJ9#,VZJ9#199604-200209

main90942-01077iKZJ9#,VZJ9#199604-199906

W(ALMINIUM WHEEL)

main90942-01095iKDJ9#,KZJ9#,VZJ9#199906-200209

W(ALMINIUM WHEEL)

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-60040iKZJ9#,VZJ9#199604-200209

51933DSTOPPER, SPARE WHEEL CARRIER

main51933-60080iKZJ9#,VZJ9#199604-199609

sub51933-60081

sub91626-B0612

main51933-60081iKDJ9#,KZJ9#,VZJ9#199609-200209

64771COVER, SPARE WHEEL

main64771-60260iKZJ9#,VZJ9#199604-200209

W(215/80R16 TIRE)

main64771-60270iKZJ9#,VZJ9#199604-200209

W(265/70R16 TIRE)

64777CLAMP, SPARE WHEEL COVER

main64777-60010iKZJ9#,VZJ9#199604-200209

W(215/80R16 TIRE)

main64777-60020iKDJ9#,KZJ9#,VZJ9#199604-200209

W(265/70R16 TIRE)

9011910252

main90119-10252

9094201033

main90942-01033

9111151232

main91111-51232

91626B0612

main91626-B0612

91626B0616

main91626-B0616

10 parts on this diagram · 1 diagram in section
