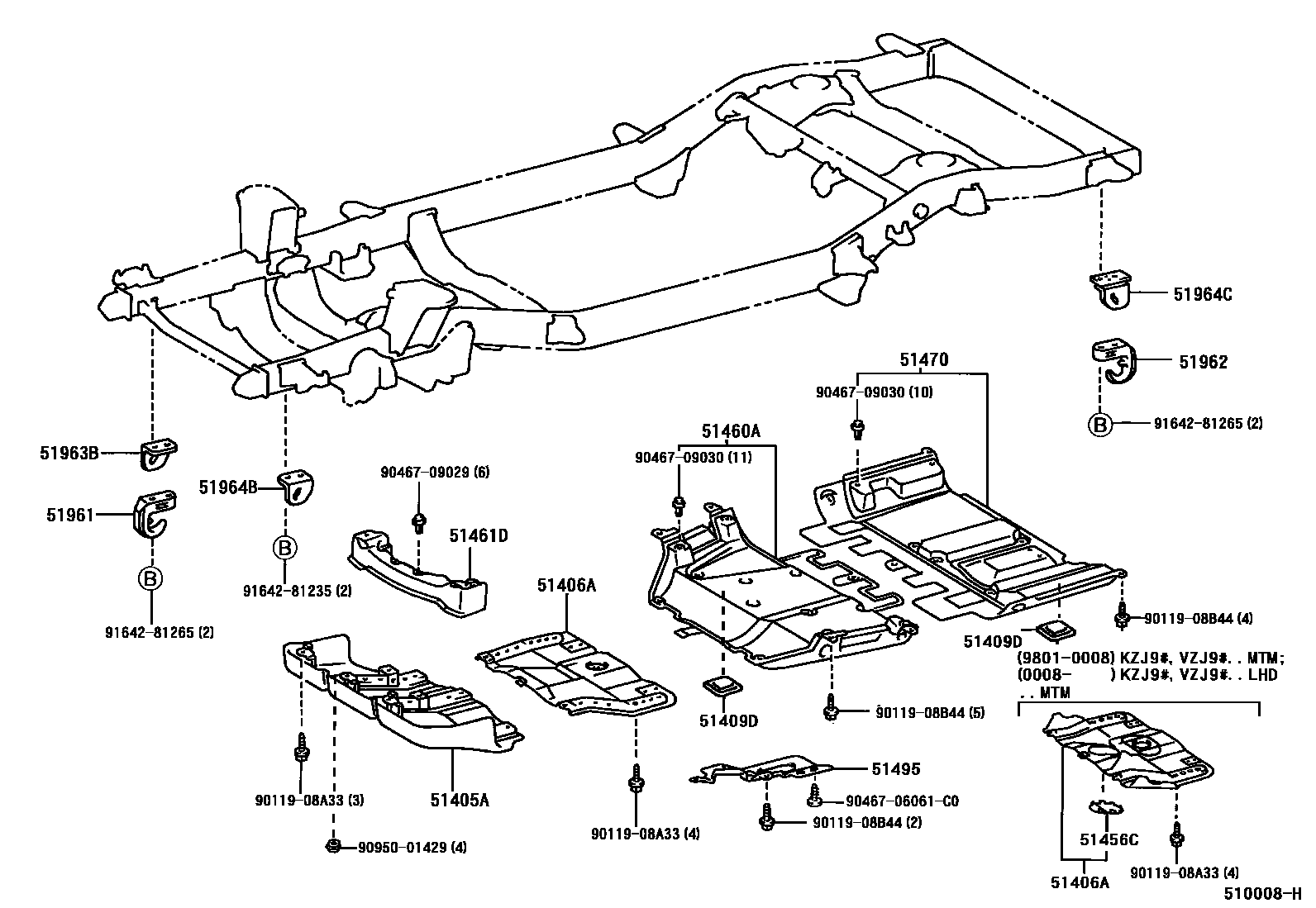

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iKZJ9#,VZJ9#..ATM199604-199807

sub51405-35071

main51405-35071iKZJ9#,VZJ9#..ATM199807-200209

main51440-60060iKZJ9#,VZJ9#..MTM199604-199807

sub51440-60061

main51440-60062iKZJ9#,VZJ9#..MTM199807-199906

sub51440-60063

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iKZJ90..ATM199604-200209

main51450-60040iKZJ9#,VZJ9#..MTM199604-199801

sub51450-60041

main51450-60041iKZJ9#,VZJ9#..MTM199801-199807

sub51450-60042

main51450-60042iKZJ9#,VZJ9#..LHD..MTM199807-200209

51409DSEAL SUB-ASSY, TRANSMISSION UNDER

main51409-35010iKZJ9#..MTM199807-200209

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-60051iKZJ95..LHD..MTM;KZJ90,VZJ9#..MTM199801-200209

51460ACOVER ASSY, TRANSMISSION UNDER, RH

main51460-60010iKZJ9#..MTM199604-199807

sub51460-60011

sub51409-35010

main51460-60011iKZJ9#..MTM199807-200209

51461DSILENCER, FRONT CROSSMEMBER

main51461-60030iKZJ9#..MTM199604-199801

51470COVER ASSY, TRANSMISSION UNDER

main51470-60010iKZJ9#..MTM199604-199807

sub51470-60011

sub51409-35010

main51470-60011iKZJ9#..MTM199807-200008

main51496-60171iKZJ9#..LHD..MTM200008-200209

51495COVER, TRANSMISSION UNDER

main51495-60320iKZJ9#,VZJ9#..ATM199704-200209

51961HOOK, NO.1

main51961-35050iKZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKZJ9#,VZJ9#199709-200209

51962HOOK, NO.2

main51961-35050iKZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKZJ9#,VZJ9#199709-200209

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iKZJ9#,VZJ9#199604-200209

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iKZJ9#,VZJ9#199604-200209

51964CHOOK, TRANSPORT, REAR LH

main51963-35070iKZJ9#,VZJ9#199604-200209

9011908A33

main90119-08A33

9011908B44

main90119-08B44

9046706061C0

main90467-06061C0

9046709029

main90467-09029

9046709030

main90467-09030

9095001429

main90950-01429

9164281235

main91642-81235

9164281265

main91642-81265

21 parts on this diagram · 1 diagram in section
