FRONT AXLE ARM & STEERING KNUCKLE

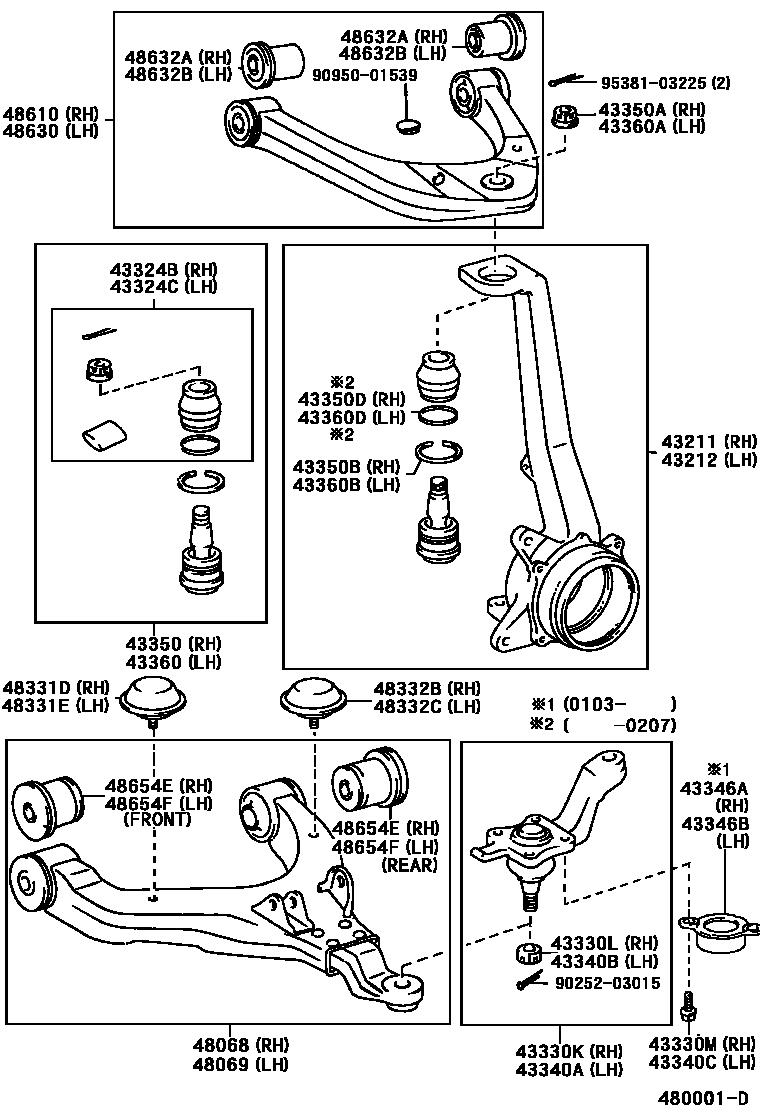

Parts diagram
43211KNUCKLE, STEERING, RH
main43201-35070i199604-200105
sub43201-35071
main43201-35071i200105-200209
main43201-35080i199604-200105
W(ABS)
sub43201-35081
main43201-35081i200105-200209
W(ABS)
43212KNUCKLE, STEERING, LH
main43202-35060i199604-200105
sub43202-35061
main43202-35061i200105-200209
main43202-35070i199604-200105
W(ABS)
sub43202-35071
main43202-35071i200105-200209
W(ABS)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
main43324-39015i199604-200209
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
main43324-39015i199604-200209
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-39415i199604-200103
sub43330-39585
main43330-39585i200103-200209
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-16050i199604-200209
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
main90105-10406i199604-200009
main90105-10505i200009-200103
main90105-10505i200103-200105
GOLD
main90119-10933i200103-200105
GREEN PAINTED
main90119-10933i200105-200209
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43340-39325i199604-200103
sub43340-39465
main43340-39465i200103-200209
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-16050i199604-200209
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
main90105-10406i199604-200009
main90105-10505i200009-200103
main90105-10505i200103-200105
GOLD
main90119-10933i200103-200105
GREEN PAINTED
main90119-10933i200105-200209
43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH
main43346-60011i200103-200209
43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH
main43346-60011i200103-200209
43350JOINT ASSY, FRONT UPPER BALL, RH
main43310-39016i199604-200209
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
main90171-14010i199604-200209
43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)
main90520-39180i199604-200209
43350DWIRE (FOR FRONT UPPER BALL JOINT RH)
main90580-10001i199604-200209
43360JOINT ASSY, FRONT UPPER BALL, LH
main43310-39016i199604-200209
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
main90171-14010i199604-200209
43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)
main90520-39180i199604-200209
43360DWIRE (FOR FRONT UPPER BALL JOINT LH)
main90580-10001i199604-200209
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-35080i199604-199803
sub48068-35081
main48068-35081i199803-200209
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-35080i199604-199803
sub48069-35081
main48069-35081i199803-200209
48331DBUMPER, FRONT SPRING, NO.1 RH
main48304-35150i199604-199610
main48304-60090i199610-199902
main48304-60091i199902-200209
48331EBUMPER, FRONT SPRING, NO.1 LH
main48304-35150i199604-199610
main48304-60090i199610-199902
main48304-60091i199902-200209
48332BBUMPER, FRONT SPRING, NO.2 RH
main48305-35040i199604-199610
main48305-60060i199610-199902
main48305-60061i199902-200209
48332CBUMPER, FRONT SPRING, NO.2 LH
main48305-35040i199604-199610
main48305-60060i199610-199902
main48305-60061i199902-200209
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
main48610-35040i199604-200209
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
main48630-35020i199604-200209
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
main48632-35080i199604-200209
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
main48632-35080i199604-200209
48654EBUSH, FRONT LOWER ARM, NO.1 RH
main48061-35040i199604-200209
FRONT
main48061-35050i199604-200209
REAR
48654FBUSH, FRONT LOWER ARM, NO.1 LH
main48061-35040i199604-200209
FRONT
main48061-35050i199604-200209
REAR
9025203015
main90252-03015
9095001539
main90950-01539
9538103225
main95381-03225

35 parts on this diagram · 1 diagram in section
