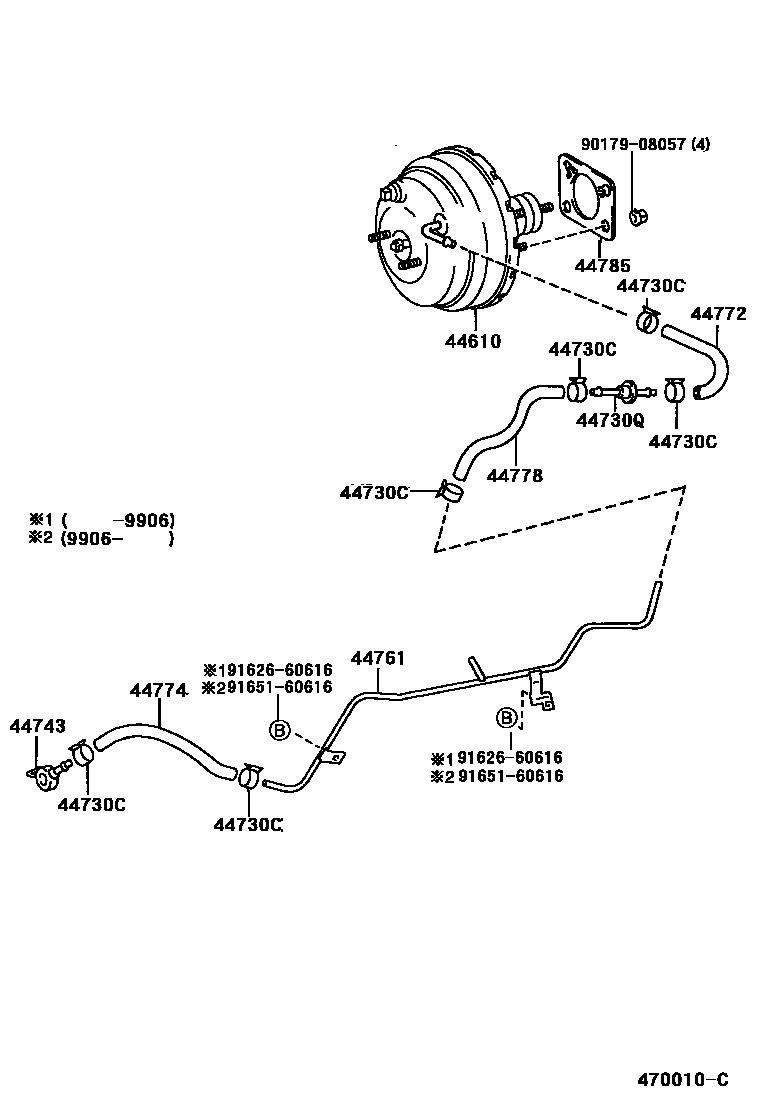

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1W(VSC & ACTIVE TRC)

44610BOOSTER ASSY, BRAKE

main44610-60870iKZJ9#..LHD199801-199906

GERMAN SPEC & W(ABS)

main44610-6A010iVZJ9#..LHD199801-200209

GERMAN SPEC & W(ABS)

main44610-6A020iVZJ95..RHD199604-199906

main44610-6A030iKZJ9#..RHD199604-199906

main44610-6A040iVZJ9#..LHD199604-200209

main44610-6A050iKZJ9#..LHD199604-199906

main44610-6A090iVZJ95..RHD199906-200209

main44610-6A110iKDJ9#,KZJ9#..RHD199906-200209

main44610-6A120iKZJ9#..LHD199906-200209

GERMAN SPEC & W(ABS)

main44610-6A130iKDJ9#,KZJ9#..LHD199906-200209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30030iVZJ9#..LHD199604-199605

sub44730-30050

main44730-60060iVZJ9#..LHD199605-200209

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iKDJ9#,KZJ9#..RHD199604-200209

sub96134-51500

main96133-41500iVZJ9#..LHD199906-200209

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iKZJ9#;VZJ95..RHD199604-200209

44743UNION(FOR VACUUM PUMP)

main90404-51237iVZJ9#199604-200209

main90405-09175iKDJ9#,KZJ9#199604-200209

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-35140iKZJ9#..LHD199604-200209

main44761-60020iKZJ9#..RHD199604-200209

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-35320iKZJ9#,VZJ95..RHD199604-200209

main44772-35330iKZJ9#..LHD199604-200008

main44772-60130iKDJ9#,KZJ9#..LHD200008-200209

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35050iVZJ95..RHD199604-200209

main44774-60230iKDJ9#,KZJ9#200008-200209

main95447-09220iKZJ9#199604-200008

sub95447-09300

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-35040iKZJ9#..LHD199604-200008

main44778-60170iKDJ9#,KZJ9#..LHD200008-200209

main95446-09100iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

44785GASKET, BRAKE BOOSTER

main44785-35030iKZJ9#,VZJ9#199604-200209

9017908057

main90179-08057

9162660616

main91626-60616

9165160616

main91651-60616

13 parts on this diagram · 5 diagrams in section
