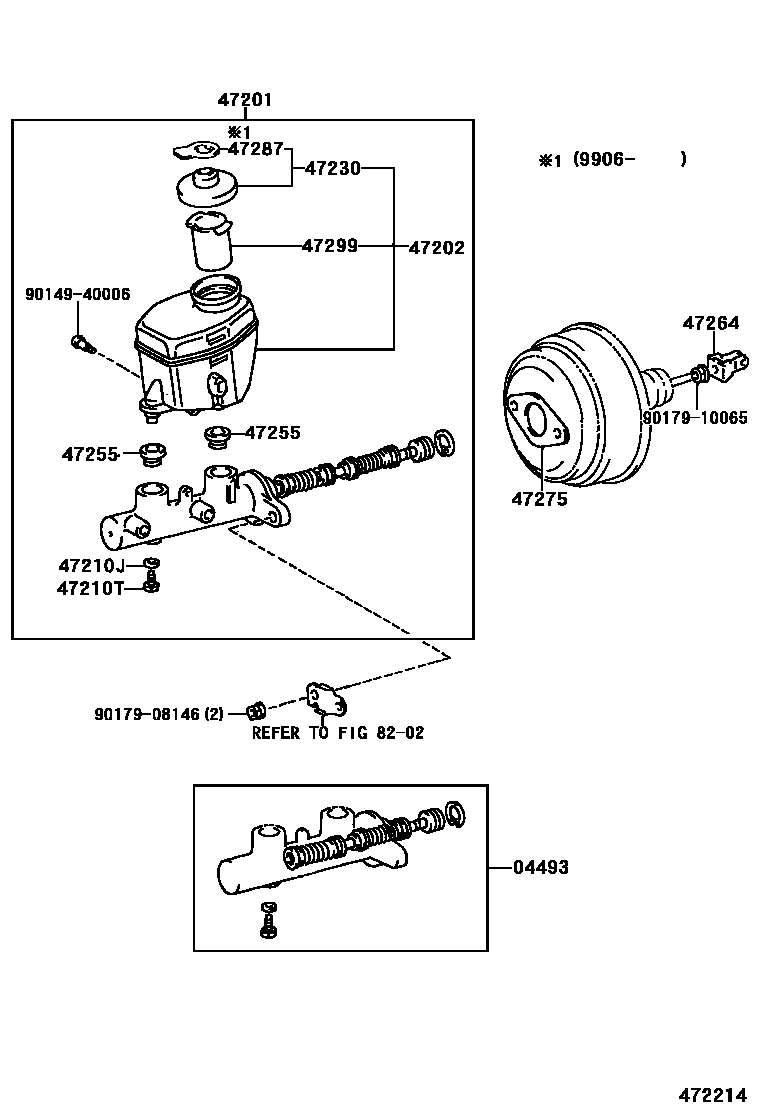

BRAKE MASTER CYLINDER

0001 1 0002 1W(ACTIVE TRC & VSC) 0004 1W(ACTIVE TRC & VSC) 0006 1W(ACTIVE TRC & VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-3D010iKDJ9#,KZJ9#,VZJ9#..LHD199801-200209

GERMAN SPEC & W(ABS)

main04493-60290iKZJ9#,VZJ9#199604-200209

W(ABS)

main04493-60300iKZJ9#,VZJ9#199604-200209

main04493-60340iVZJ95..LHD..ATM;KDJ9#,VZJ90..ATM200008-200209

W(VSC & ACTIVE TRC)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60062iKDJ95..RHD..ATM200008-200209

W(VSC & ACTIVE TRC)

main47025-60070iKDJ9#..LHD..ATM200008-200209

W(VSC & ACTIVE TRC)

main47201-3D470iKDJ9#,VZJ9#..LHD199801-200209

GERMAN SPEC & W(ABS)

main47201-60640iKZJ9#,VZJ95..RHD199604-200209

main47201-60650iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

W(ABS)

main47201-60660iKZJ9#,VZJ9#..LHD199604-200209

main47201-60670iKZJ9#,VZJ95..RHD199604-200209

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35050iVZJ95..LHD..ATM;KDJ9#,VZJ90..ATM200008-200209

W(VSC & ACTIVE TRC)

main47220-60080iKZJ9#,VZJ95..RHD199604-200209

main47220-60090iKDJ9#,KZJ9#,VZJ9#..LHD199604-200209

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKDJ9#,KZJ9#,VZJ9#199906-200209

W(ABS)

main90029-43002iKDJ9#..LHD..ATM200008-200209

W(VSC & ACTIVE TRC)

main90430-06104iKDJ9#,KZJ9#,VZJ9#199604-200209

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90029-40010iKDJ9#,VZJ9#..LHD..ATM200008-200209

W(VSC & ACTIVE TRC)

main90109-06077iKZJ9#,VZJ9#199604-200209

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iKZJ9#,VZJ9#..LHD199801-199906

GERMAN SPEC & W(ABS)

main47230-20140iKZJ9#,VZJ9#199604-200209

main47230-30130iKDJ9#..ATM200008-200209

W(VSC & ACTIVE TRC)

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKDJ9#,KZJ9#,VZJ9#199604-200209

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iKZJ9#,VZJ9#199604-200209

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iKDJ9#,KZJ9#,VZJ9#199604-200209

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKDJ9#,KZJ9#,VZJ9#199906-200209

main47287-20020iKDJ9#..ATM200008-200209

W(VSC & ACTIVE TRC)

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iKZJ9#,VZJ9#199604-200209

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 4 diagrams in section
