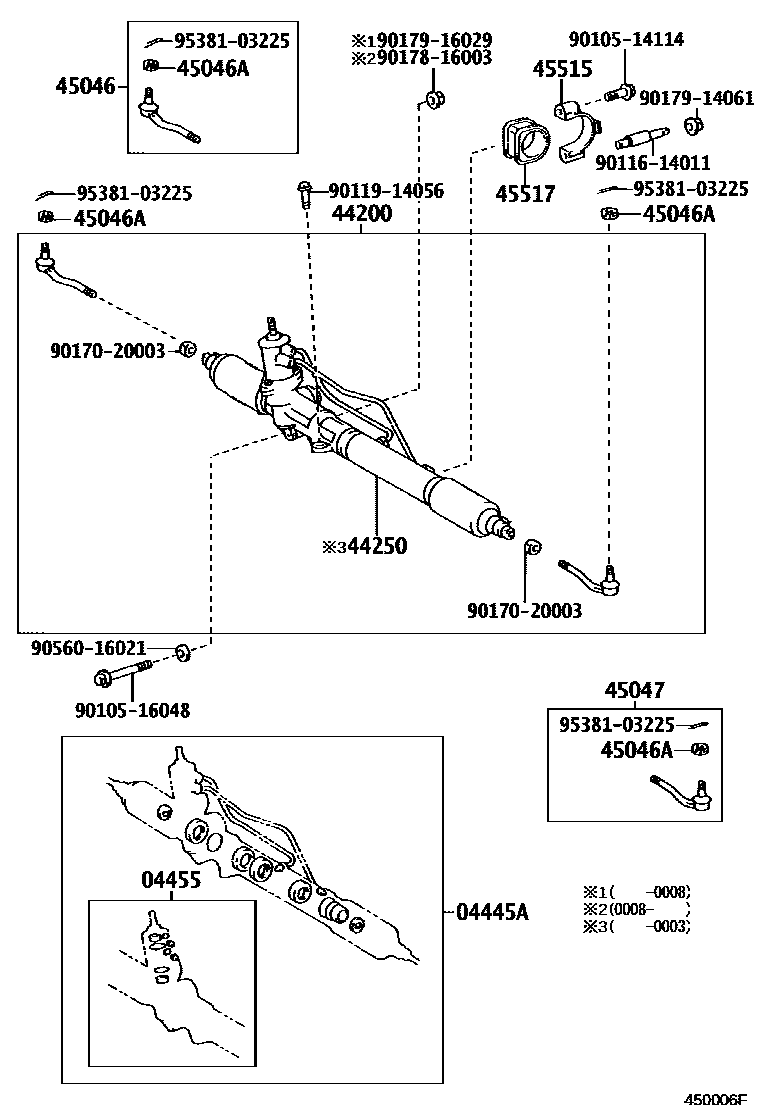

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-35160iKDJ9#,KZJ9#,VZJ9#199604-200209

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-35130iKZJ9#,VZJ9#199604-200209

44200LINK ASSY, POWER STEERING

main44200-60012iKDJ9#,KZJ9#,VZJ95..RHD199604-200209

sub44250-60012

sub45046-39335

sub45047-39215

sub90170-20003

main44200-60022iKDJ9#,KZJ9#,VZJ9#..LHD199906-200209

sub44250-60022

sub45046-39335

sub45047-39215

sub90170-20003

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-60022iKDJ9#,KZJ9#,VZJ9#..LHD200003-200209

sub44250-60022

sub45046-39335

sub45047-39215

sub90170-20003

main44250-60010iKZJ9#,VZJ95..RHD199604-199708

sub44250-60011

main44250-60011iKZJ9#,VZJ95..RHD199708-199906

sub44250-60012

main44250-60012iKZJ9#,VZJ95..RHD199906-200003

main44250-60020iKZJ9#,VZJ9#..LHD199604-199708

sub44250-60021

main44250-60021iKZJ9#,VZJ9#..LHD199708-200003

sub44250-60022

45046END SUB-ASSY, TIE ROD, RH

main45046-39335iKZJ9#,VZJ9#199604-200209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iKZJ9#,VZJ9#199604-200209

45047END SUB-ASSY, TIE ROD, LH

main45047-39215iKZJ9#,VZJ9#199604-200209

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-35040iKZJ90..RHD199604-200209

main45515-35050iKZJ90..ATM199604-200209

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-35010iKZJ9#,VZJ9#199604-200209

9010514114

main90105-14114

9010516048

main90105-16048

9011614011

main90116-14011

9011914056

main90119-14056

9017020003

main90170-20003

9017816003

main90178-16003

9017914061

main90179-14061

9017916029

main90179-16029

9056016021

main90560-16021

9538103225

main95381-03225

19 parts on this diagram · 4 diagrams in section
