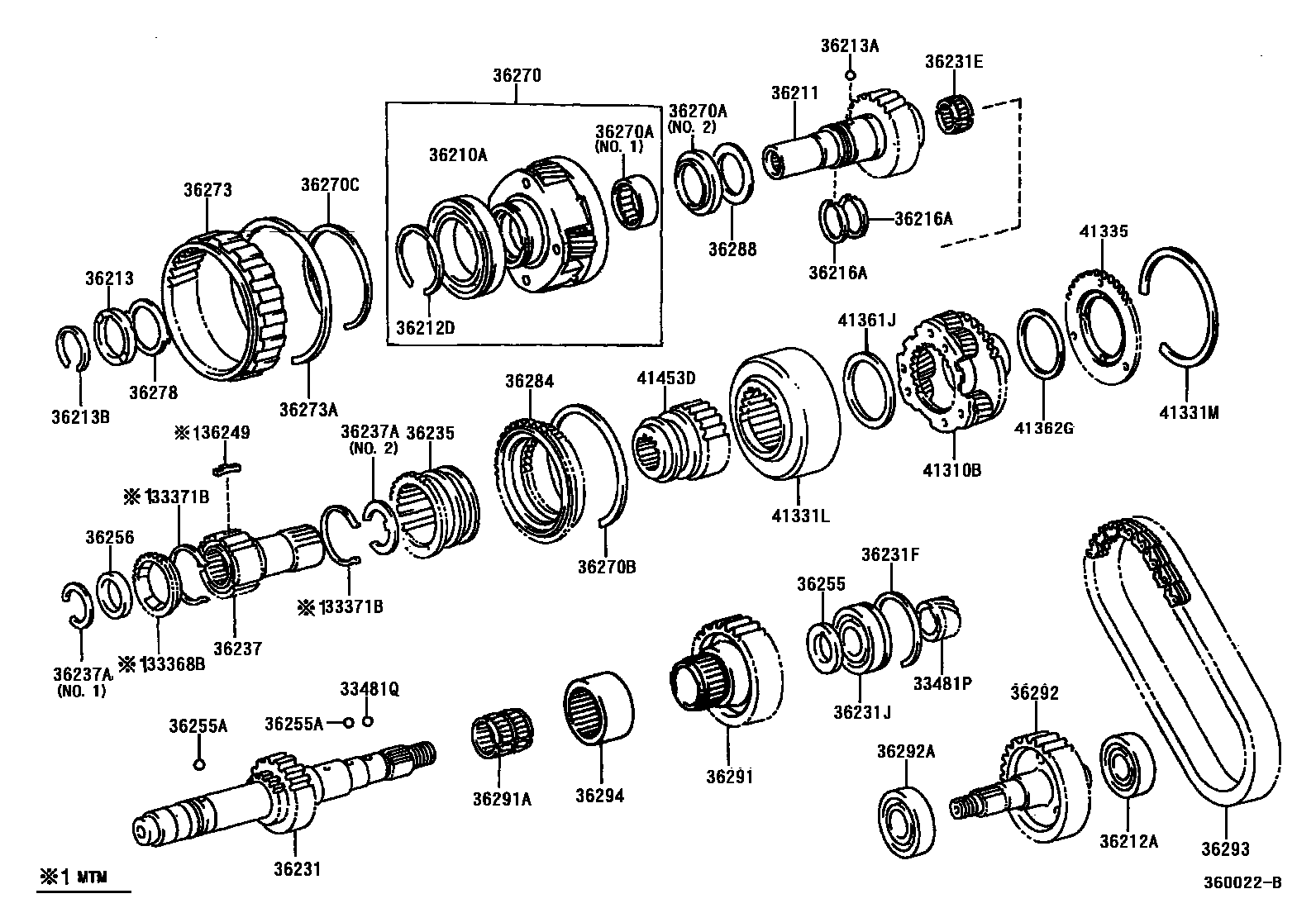

TRANSFER GEAR
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=11
N=11
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15
T=2.15-2.20
T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65
T=2.65-2.70
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
sub36216-35012
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,ID=71.1
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10,MARK A,NO.1
T=1.95-2.05,NO.2
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.95-1.05
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
sub36235-35H01
36288RACE, TRANSFER THRUST BEARING, NO.1
36291SPROCKET, TRANSFER DRIVE
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36294SLEEVE, TRANSFER DRIVE SPROCKET
41331LGEAR, CENTER DIFFERENTIAL PLANETARY RING
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
41361JWASHER, CENTER DIFFERENTIAL PLANETARY CARRIER, NO.1
41362GWASHER, CENTER DIFFERENTIAL PLANETARY CARRIER, NO.2
41453DSLEEVE, CENTER DIFFERENTIAL LOCK
45 parts on this diagram · 1 diagram in section
